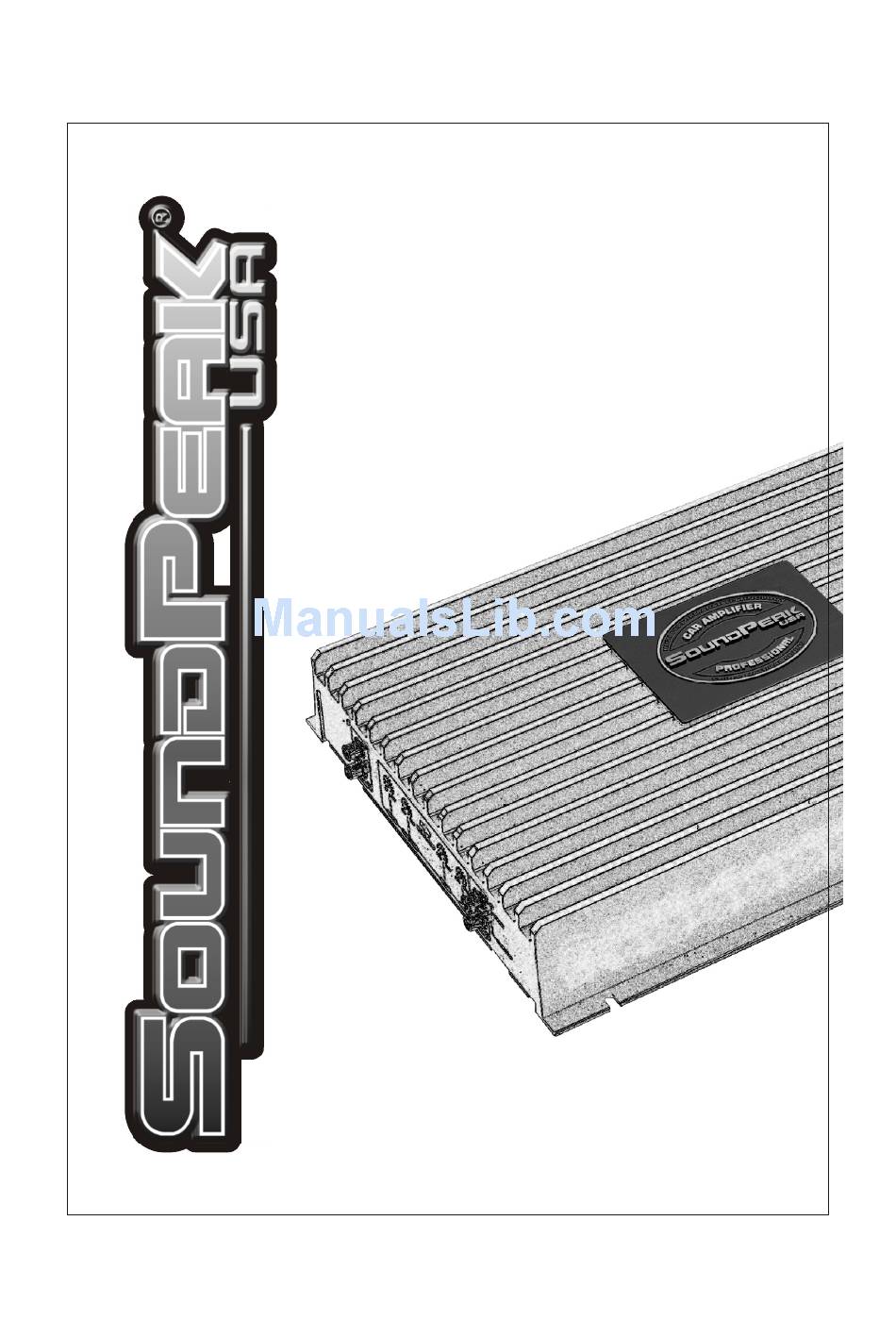

- Page 1 OWNER'S MANUAL Super Natural Sound High Performance Technology SP-1200.2 dbPRO SP-2500D dbPRO SP-3000D dbPRO...
- Page 2 [SP-1200.2 dbPRO] 2/1 Channel Bridgeable Class A/B Amplifier MOSFET PWM Power Supply 4 Ohm Bridged / 2 Ohm Stereo Stability 24dB Octave Crossover Slope Variable Low Pass Filter (LPF) Variable High Pass Filter (HPF) HPF/FULL/LPF Selectable Switch Variable Bass Boost...
-
Page 3: Wired Remote Control
[SP-1200.2 dbPRO] INPUT OUTPUT CH1/L CH1/L REMOTE BASS SENSITIVITY SONIC BOOST FULL Protection 30Hz 250Hz 50Hz 500Hz 18dB Power CH2/R CH2/R Wired Remote Control HEAD UNIT to INPUT of ADDITIONAL AMPLIFIERS This amplifier has a signal input terminal of RCA connector type for low level inputs. - Page 4 [SP-1200.2 dbPRO] FUSE SPEAKER OUTPUT POWER BRIDGE to REMOTE Turn-on GROUND from HEAD UNIT BATTERY HEAD UNIT It is important that you read this manual very carefully and follow it for your installation carefully. Before you start your installation, please consider following concerns.
-
Page 5: Channel Stereo
[SP-1200.2 dbPRO] 1 Channel Bridged Speaker Impedance 4~8 ohms SPEAKER OUTPUT CH1-MONO SUBWOOFER BRIDGE 2 Channel Stereo SPEAKER OUTPUT Speaker Impedance 2~8 ohms BRIDGE 3 Channel Tri Mode CH3-MONO SUBWOOFER SPEAKER OUTPUT Speaker Impedance 4~8 ohms BRIDGE... - Page 6 [SP-2500D dbPRO & SP-3000D dbPRO] Single Amp Input Connection IN PUT BR OUT SENSITIVITY SUBSONIC BASS BOOST PHASE POWER 10Hz 60Hz 35Hz 300Hz 18dB PROTECTION REMOTE CLASS-D LINKABLE MONO BLOCK AMPLIFIER IN PUT BR IN HEAD UNIT Wired Remote Control Dual Amp Input Connection (MASTER &...
- Page 7 [SP-2500D dbPRO & SP-3000D dbPRO] SPEAKER Caution POWER This amplifier is not supplied with internal fuse in itself. Make sure you install in-line fuse holder from terminal of battery. GROUND Caution This amplifier is not supplied with internal fuse in itself. to REMOTE Turn-on Make sure you install in-line fuse holder from the +terminal from HEAD UNIT...
- Page 8 [SP-2500D dbPRO & SP-3000D dbPRO] SPEAKER Caution POWER This amplifier is not supplied with internal fuse in itself. Make sure you install in-line fuse holder from terminal of battery. 1~4 ohms SPEAKER Caution POWER This amplifier is not supplied with internal fuse in itself. Make sure you install in-line fuse holder from terminal of battery.
- Page 9 [SP-2500D dbPRO & SP-3000D dbPRO] "MASTER UNIT" SPEAKER Caution POWER This amplifier is not supplied with internal fuse in itself. Make sure you install in-line fuse holder from terminal of battery. GROUND to REMOTE Turn-on Recommended Ampere from HEAD UNIT SP-2500D dbPRO:200A (External Type Fuse) SP-3000D dbPRO:300A (External Type Fuse) To +12V DC...
-
Page 10: Fuse Blowing
This power amplifier has protection features to prevent any damages from misuse or faulty conditions. If the unit senses excessive heat, short circuited speakers or overload, the protection indicators will light, and the system will be turned off. In order to check the occurred problem, you should turn all levels down and all power off and carefully check the installation for wiring mistakes or short. - Page 11 [SP-1200.2 dbPRO] Rated power output -RMS power, 4 ohm stereo 350W x 2CH -RMS power, 2 ohm stereo 560W x 2CH -RMS power, 4 ohm bridged 1120W x 1CH Signal to Noise Ratio >98dB Low Pass Crossover 30Hz ~ 250Hz...
