Grandbeing MX0404-330 Operating Instructions Manual

Hdmi matrix (router type)
Hide thumbs Also See for MX0404-330:

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual

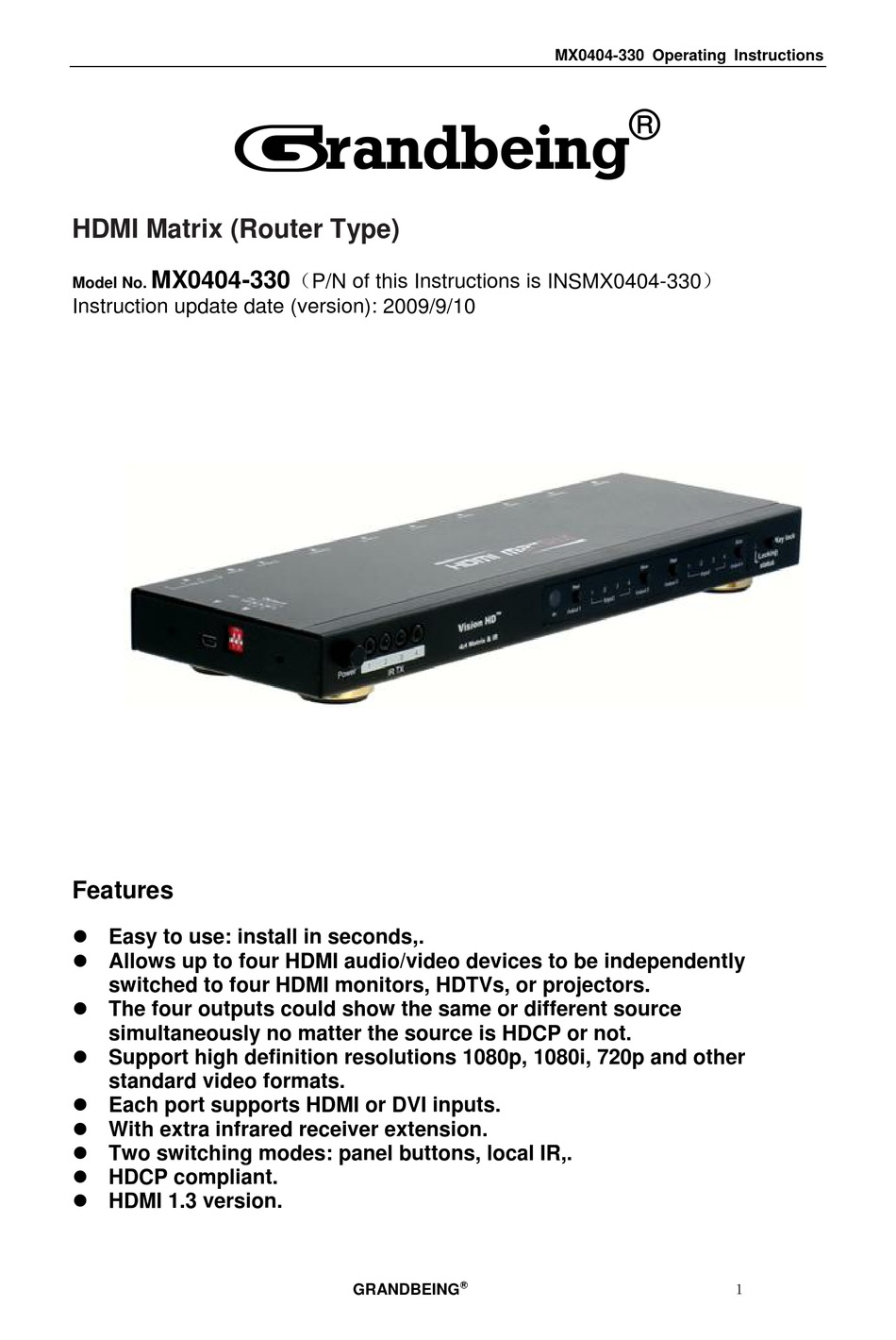

Grandbeing
HDMI Matrix (Router Type)
MX0404-330
Model No.
Instruction update date (version): 2009/9/10
Features
Easy to use: install in seconds,.
Allows up to four HDMI audio/video devices to be independently
switched to four HDMI monitors, HDTVs, or projectors.
The four outputs could show the same or different source
simultaneously no matter the source is HDCP or not.
Support high definition resolutions 1080p, 1080i, 720p and other
standard video formats.
Each port supports HDMI or DVI inputs.
With extra infrared receiver extension.
Two switching modes: panel buttons, local IR,.
HDCP compliant.
HDMI 1.3 version.
（P/N of this Instructions is INSMX0404-330）
®
GRANDBEING
MX0404-330 Operating Instructions
®
１

Advertisement

loading
Need help?

Need help?

Do you have a question about the MX0404-330 and is the answer not in the manual?

Questions and answers

Related Manuals for Grandbeing MX0404-330

Summary of Contents for Grandbeing MX0404-330

  • Page 1 MX0404-330 Operating Instructions ® Grandbeing HDMI Matrix (Router Type) （P/N of this Instructions is INSMX0404-330） MX0404-330 Model No. Instruction update date (version): 2009/9/10 Features Easy to use: install in seconds,. Allows up to four HDMI audio/video devices to be independently switched to four HDMI monitors, HDTVs, or projectors.
  • Page 2 Please keep this manual for future reference. Notice Grandbeing Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.

  • Page 3: Table Of Contents

    Contact Information ································································ 10 INTRODUCTION Grandbeing’s MX0404-330 is a 4-by-4 DVI/HDMI true matrix. It allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the four displays simultaneously, no matter the source is HDCP or not.

  • Page 4: Panel Descriptions

    MX0404-330 Operating Instructions *PART NUMBER (Abbreviation as P/N). PANEL DESCRIPTIONS Front panel 1. Output selection and indicator of input for output port 1 to 4. 2. IR window. 3. Key lock button. 4. Indicator of locking status, when the output selection buttons are locked, LED inside lit.

  • Page 5: Connect And Operation

    4) Power on the input source you want to show. (Keep the unused input power off, otherwise it may interfere the normal display.) 5) Connect the power supply into MX0404-330 and turn on the display you want to watch. 6) Use remote or push the button to choose input source.

  • Page 6: Specification

    MX0404-330 Operating Instructions 9）DIP switch setting Position Mix the low version EDID.(default) (note 1) reserved reserved reserved Copy the EDID of the display which connected the OUTPUT1.(note 2) reserved reserved reserved Note1: The matrix will mix the EDID data of the sink devices. The mixed EDID data will use the lowest resolution of the video and the least channel number of the audio.
  • Page 7 MX0404-330 Operating Instructions Operating Temperature Range -5 to +35°C (-41 to +95 °F) 5 to 90 % RH (no condensation) Operating Humidity Range Input Video Signal 0.5-1.0 volts p-p Input DDC Signal 5 volts p-p (TTL) Signaling Rate 2.25Gbit/s DTV/HDTV:1080P/1080i/720P/576P/480P/576i/...
  • Page 8 MX0404-330 Operating Instructions Use the male jack and female jack to extend the IR_RX cable like the picture below. ® ８ GRANDBEING...

  • Page 9: Typical Application

    MX0404-330 Operating Instructions TYPICAL APPLICATION MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this unit. ® ９ GRANDBEING...

  • Page 10: Product Service

    MX0404-330 Operating Instructions PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;...
  • Page 11 MX0404-330 Operating Instructions LIMITED WARRANTY LIMITS AND EXCLUSIONS 1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which...
  • Page 12 MX0404-330 Operating Instructions Thank you for your purchase. We appreciate your business. Please contact us with your question and comments. Grandbeing Technology Co., Ltd 6C, Jialitai Building, No. 6 Yanshan Road, Nanshan District Shenzhen , P.R. China Post Code:518067 Tel:86-755-26678449 Fax:86-755-26678549 Email:sales@grandbeing.com,...
