Installation / Quick Start Guide
Complete operation manual is
online at www.jensenmobile.com
Note: There is no operation manual in this package
What's in the Box
The following items are supplied
with the VX3012:

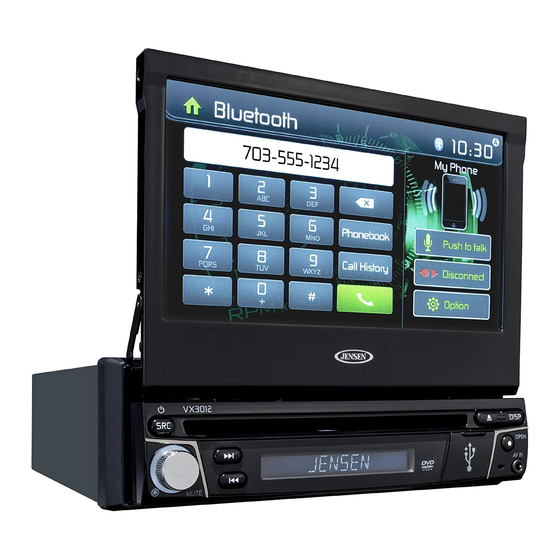

VX3012 Head Unit
Trim Ring
Hardware Bag
Power/Speaker Output Harness
Remote Control
External Microphone
Mounting Sleeve & Removal Keys
Installation / Quick Start Guide
WARNING! Never install this unit where operation and viewing could interfere with
safe driving conditions.
VX3012
Tools and Supplies
The following tools and supplies
are needed to install the VX3012:
• Torx type, flat-head and Philips
screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screw
driver, socket wrench set or other
tools)
• Electrical tape
• Crimping tool
• Volt meter/test light
• Crimp connections
• 18 gauge wire for power connections
• 16 – 18 gauge speaker wire

Advertisement

loading
Need help?

Need help?

Do you have a question about the VX3012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jensen VX3012

  • Page 1 Note: There is no operation manual in this package What’s in the Box Tools and Supplies The following items are supplied The following tools and supplies with the VX3012: are needed to install the VX3012: • VX3012 Head Unit • Torx type, flat-head and Philips • Trim Ring screwdrivers •...
  • Page 2: Replacing The Fuse

    ISO-DIN Installation The VX3012 is designed to fit into a 1.0 DIN dashboard opening. The unit has threaded holes in the chassis side panels which may be used with the original factory mounting brackets of some Toyota, Nissan, Mitsubishi, Isuzu, Hyundai and Honda vehicles to mount the radio to the dashboard.
  • Page 3: Wiring Diagram

    CAUTION! IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or have the installation handled by an experienced technician. Need Help? For technical assistance, call the Jensen customer support line at 1-800-323-4815. YELLOW - VIDEO OUT BLACK 3.5MM - BT MICROPHONE...
  • Page 4: Quick Start Guide

    QUICK START GUIDE Turning the Unit ON or OFF Press the front panel Power/Menu button to turn the unit ON. To turn the unit OFF, press and hold the front panel / SRC ] Power/Menu button for 2 seconds. / SRC ] Selecting an Audio/Video Source, BT or Backup Camera To access an Audio/Video source: 1.
