Crypto novaPad 80 C124 User Manual

Tablet pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

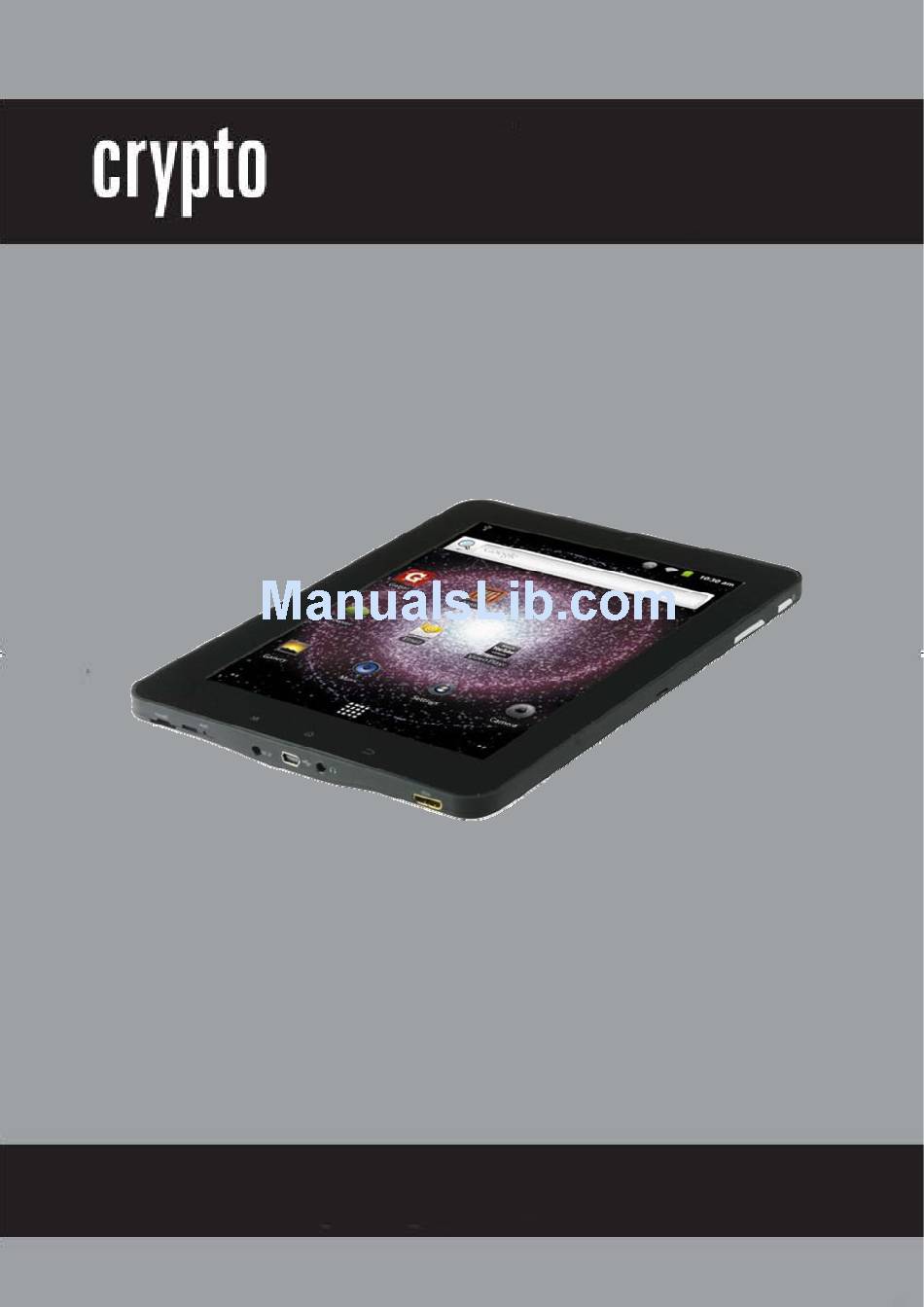

novaPad 80 C124
Tablet PC
User Manual
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the novaPad 80 C124 and is the answer not in the manual?

Questions and answers

Related Manuals for Crypto novaPad 80 C124

Summary of Contents for Crypto novaPad 80 C124

  • Page 1 80 C124 Tablet PC User Manual V1.0...

  • Page 2: Table Of Contents

    80 C124 User Manual/Εγχειρίδιο Χρήσης Contents 1. INTRODUCTION ................3 1.1 Package Contents.................3 1.2 Tablet Features ................3 1.3 Key Functions................4 1.4 Charging the Tablet ..............7 1.5 Inserting a Memory Card.............7 2. GETTING STARTED..............8 2.1 Turning the tablet On & Off ............8 2.1.2 Turning the Screen On and Off (Standby)......9...
  • Page 3 80 C124 User Manual/Εγχειρίδιο Χρήσης 6. SYSTEM SETTINGS..............37 6.1 Wireless & Networks..............37 6.2 Sound..................37 6.3 Display..................37 6.4 Location & security ..............38 6.5 Applications................38 6.6 Privacy..................38 6.7 Storage..................38 6.8 Language & Keyboard ..............38 6.9 Date & Time ................38 6.10 About Device ................39...

  • Page 4: Introduction

    80 C124 User Manual/Εγχειρίδιο Χρήσης 1. INTRODUCTION 1.1 Package Contents Please make sure that the items shown below are included in the package. If an item is missing, please contact the local retailer from which you purchased this product.

  • Page 5: Key Functions

    80 C124 User Manual/Εγχειρίδιο Χρήσης 1.3 Key Functions This section provides information about the key functions available on your device. Button Description 1. Volume – key Press to decrease the volume level. 2. Volume + key Press to increase the volume level.
  • Page 6 80 C124 User Manual/Εγχειρίδιο Χρήσης Button Description 5. Camera Front-facing camera 6. Back touch key Tap to return to the previous screen. If the keyboard is on the screen, tap to close the keyboard. 7. Home touch key Tap to return to the home screen.
  • Page 7 80 C124 User Manual/Εγχειρίδιο Χρήσης Button Description 9. microSD card slot Load external microSD memory cards 10. Reset key Press to reset the tablet if it freezes or behaves abnormally. (Use a paperclip or other small object to gently press this key.) 11.

  • Page 8: Charging The Tablet

    80 C124 User Manual/Εγχειρίδιο Χρήσης 1.4 Charging the Tablet The tablet comes with a built-in rechargeable lithium-polymer battery. Before using the tablet, the battery should be charged fully. To charge the battery: 1. Plug one end of the included power adapter into an AC 100- 240V outlet.

  • Page 9: Getting Started

    80 C124 User Manual/Εγχειρίδιο Χρήσης To release and remove a memory card: 1. UNMOUNT the memory card. a. From the home screen, tap the Menu key, and then touch Settings/Storage to show the storage menu. b. Touch SD card to show the SD card & device storage settings.

  • Page 10: Turning The Screen On And Off (Standby)

    80 C124 User Manual/Εγχειρίδιο Χρήσης Touch Power off on the screen. A confirmation message will • appear Touch OK to turn off the tablet. • 2.1.2 Turning the Screen On and Off (Standby) When the tablet is on, you can turn off the screen to save battery power: •...
  • Page 11 80 C124 User Manual/Εγχειρίδιο Χρήσης If a password has been set, enter the password to finish unlocking the screen. The Screen Unlock password can be set in the Location and security settings menu.

  • Page 12: About The Touch Screen

    80 C124 User Manual/Εγχειρίδιο Χρήσης 2.3 About the touch screen The tablet comes equipped with an easy-to-use touch screen. The capacitive multi-touch screen requires gentle fingertip touch on the glass screen to activate tablet’s functions. Multiple fingers may be used to perform gestures (e.g. 2-finger picture zoom).

  • Page 13: Orientation Sensor

    80 C124 User Manual/Εγχειρίδιο Χρήσης Drag: Drag an on-screen item to change its position (e.g. an application icon on the home screen). To drag an item, touch and hold it for a moment, then without lifting your finger, move your finger on the screen until the item reaches its target destination.

  • Page 14: Home Screen

    80 C124 User Manual/Εγχειρίδιο Χρήσης The orientation sensor can be turned on and off in the Display settings menu. 2.5 Home screen The home screen is the starting point for all of the features of your tablet. Feature Description 1.

  • Page 15: Customise Home Screen

    80 C124 User Manual/Εγχειρίδιο Χρήσης 2. Search icon Touch to search with Google. 3. Widgets Widgets are small applications that you can use directly from the home screen. To add widgets to the home screen, touch and hold an empty spot on the home screen.

  • Page 16: About Applications

    • directly back to the home page screen Note: The screen shown above is for illustrative purposes only. Crypto reserves the right to modify and improve the final list of applications available on the tablet. 2.6.2 Preinstalled Applications Some applications have been installed on your tablet for your convenience.
  • Page 17 80 C124 User Manual/Εγχειρίδιο Χρήσης Access to thousands of apps with GetJar Marketplace. Browse the web. Perform simple mathematical operations. Take pictures or videos with the front-facing camera. Check your e-mail. View and manage files stored on the tablet.

  • Page 18: Installing Applications

    Crypto S.A will not be responsible for any loss, costs, or damages incurred due to your access to or use of third party content, products, applications or services.

  • Page 19: Context Menus

    80 C124 User Manual/Εγχειρίδιο Χρήσης Note: Not all screens or applications have an option menu; if a menu does not exist, nothing will happen if you press the Menu key. Context menus. Context menus contain items related to a specific item on the screen.

  • Page 20: Status Bar

    80 C124 User Manual/Εγχειρίδιο Χρήσης Note: Not all items have a context menu; if a menu does not exist, nothing will happen if you touch and hold the item. 2.8 Status Bar 1. Notification area The icons that appear in the Notification bar at the top of the screen alerts you when new messages arrive or alarms or other application events occur.
  • Page 21 80 C124 User Manual/Εγχειρίδιο Χρήσης To close the Notifications panel: Drag the handle at the bottom of the Notifications panel to • the top of the screen, or press the Back key 2 Status area Displays status icons to show the current state of your •...

  • Page 22: Entering Text (Greek & English)

    80 C124 User Manual/Εγχειρίδιο Χρήσης Song is playing Upcoming calendar event 2.9 Entering text (Greek & English) You can type text using the Android on-screen keyboard or the AnySoftKeybord that is preinstalled. The keyboards automatically rotate to either the portrait or landscape mode based on the device orientation.

  • Page 23: Greek Keyboard Using (Anysoftkeybord)

    80 C124 User Manual/Εγχειρίδιο Χρήσης box. 3 • Touch once to show the uppercase keyboard for typing a capital letter. • Touch twice to enable the Caps Lock mode. • Touch to change back to the lowercase keyboard. 4 • Touch to show the keyboard for typing numbers, punctuation marks, and symbols other than the period.
  • Page 24 80 C124 User Manual/Εγχειρίδιο Χρήσης A dialog box will may open and warn you about possible key- logging attacks which can be done by this keyboard application. Note: This is a generic message, and will be shown when you enable any keyboard application.

  • Page 25: Input Method

    80 C124 User Manual/Εγχειρίδιο Χρήσης Fonts Small - two half height sized keys, one for switching • language layouts, the other for symbols. Big - Regular sized keys. • Effects Vibrate on key-press: a short vibration on each key you •...

  • Page 26: Connecting To The Internet

    80 C124 User Manual/Εγχειρίδιο Χρήσης ● In the text input interface, press and hold the text edit box area, until the pop-up menu appears and select input method. ● Select the input required. You may select to use the Android Keybord or the AnysoftKeybord which supports Greek fonts 3.
  • Page 27 80 C124 User Manual/Εγχειρίδιο Χρήσης Connected to a Wi-Fi network (waves indicate connection strength). There are no Wi-Fi networks in range, or the Wi-Fi icon] radio is off. Turn on the Wi-Fi radio if it is not already on.
  • Page 28 80 C124 User Manual/Εγχειρίδιο Χρήσης Select an available Wi-Fi network to connect to: In the same Wi-Fi settings menu above, touch a network in the list. If the network is open, the tablet will prompt you to confirm connection to the network. Touch Connect to confirm.

  • Page 29: Browsing The Web

    80 C124 User Manual/Εγχειρίδιο Χρήσης 3.2 Browsing the web The Browser application lets you visit webpages and find information on the web. Keep up with the news, your friends, or enjoy video from YouTube™. To use Browser, the tablet must be connected to the Internet.
  • Page 30 80 C124 User Manual/Εγχειρίδιο Χρήσης Use the keyboard to enter the address (URL) of the webpage (e.g. www.youtube.com.) 3.Touch Go to open the webpage. To bookmark a webpage. • Bookmark your favorite WebPages in order to visit them quickly without entering a URL.
  • Page 31 80 C124 User Manual/Εγχειρίδιο Χρήσης 2.Touch a bookmark tile to open it. To open a new browser window. • Press the Menu (M) key to show the Browser options. Touch New Window to open a new browser window. To switch between browser windows.

  • Page 32: Managing Applications

    80 C124 User Manual/Εγχειρίδιο Χρήσης 4. MANAGING APPLICATIONS Downloading and installing new applications to your tablet can extend its functionality in many ways. You can download and install applications from the included Applications store. To open the Applications store: 1.
  • Page 33 Crypto S.A will not be responsible for any loss, costs, or damages incurred due to your access to or use of third party content, products, applications or services.

  • Page 34: Optional Connections

    80 C124 User Manual/Εγχειρίδιο Χρήσης 5. Touch Uninstall. The tablet will prompt you to confirm. 6. Touch OK to uninstall the application. 5. OPTIONAL CONNECTIONS 5.1 Connecting to a Computer Connect the tablet to a computer to transfer files.

  • Page 35: Connecting To A Tv

    80 C124 User Manual/Εγχειρίδιο Χρήσης 2.0 Hi-speed port on the computer. When your tablet is connected, a USB icon will appear in the Notification bar. Drag the Notification bar down to open the notifications panel. Mount the storage drive.

  • Page 36: Connecting Headphones

    80 C124 User Manual/Εγχειρίδιο Χρήσης For optimal visual performance, make sure that the video • output resolution of your tablet matches the capabilities of the To adjust the display settings: 1. From the home screen, press Settings to show the settings menu.

  • Page 37: Using The Usb Full-Size Adapter

    80 C124 User Manual/Εγχειρίδιο Χρήσης 5.4 Using the usb full-size adapter The USB full-size adapter can be used to connect and use USB plug and play devices with the tablet. The adapter converts the mini USB port on the tablet into a USB On-the-Go (OTG) connector.

  • Page 38: System Settings

    80 C124 User Manual/Εγχειρίδιο Χρήσης 6. SYSTEM SETTINGS The settings are grouped by category. Touch a category to open and adjust its settings. Many applications will have their own settings; refer to the documentation provided by the application developer to learn more.

  • Page 39: Location & Security

    80 C124 User Manual/Εγχειρίδιο Χρήσης 6.4 Location & security Setup the security options of the tablet. Input lock-screen passwords, select device administrators, etc 6.5 Applications Allow installations of non-Market applications, Manage and remove installed applications, View and control all running services, View storage &...

  • Page 40: About Device

    80 C124 User Manual/Εγχειρίδιο Χρήσης 6.10 About Device View information about device model number, android version, battery usage etc. 7.GENERAL INFORMATION’S Safety Instruction Cleaning: Unplug this product from the wall outlet before • cleaning. Do not use liquid cleaners or aerosol cleaners. Use a cloth for cleaning.
  • Page 41 80 C124 User Manual/Εγχειρίδιο Χρήσης Damage Requiring Service: Unplug this product from the • wall outlet and refer servicing to qualified service personnel under the following conditions: a) when the power-supply or plug is damaged; b) if liquid has been spilled or if objects have fallen into the product;...

  • Page 42: Technical Support

    80 C124 User Manual/Εγχειρίδιο Χρήσης Specification LCD Display Size 8.0” TFT Capacitive multitouch panel 4:3 Resolution 800*600 SVGA CPU processor TCC8803 Cortex A8@ 1.2 GHz 512MB DDR3 Built-in Flash Camera 0.3MP (front) Wi-Fi 802.11 b/g USB port micro USB 2.0 High Speed OTG...
  • Page 43 Declaration of Conformity* This product (novaPad 80 C124) is with conformity with the article 3.1(a) the protection of the health and article 3.1(b) & 3.2 requirements of Directive 1999/5/EC of the European Parliament and European Council and more specific with the...
  • Page 44 80 C124 User Manual/Εγχειρίδιο Χρήσης Notes:______________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ _______________________________________________________________________...
