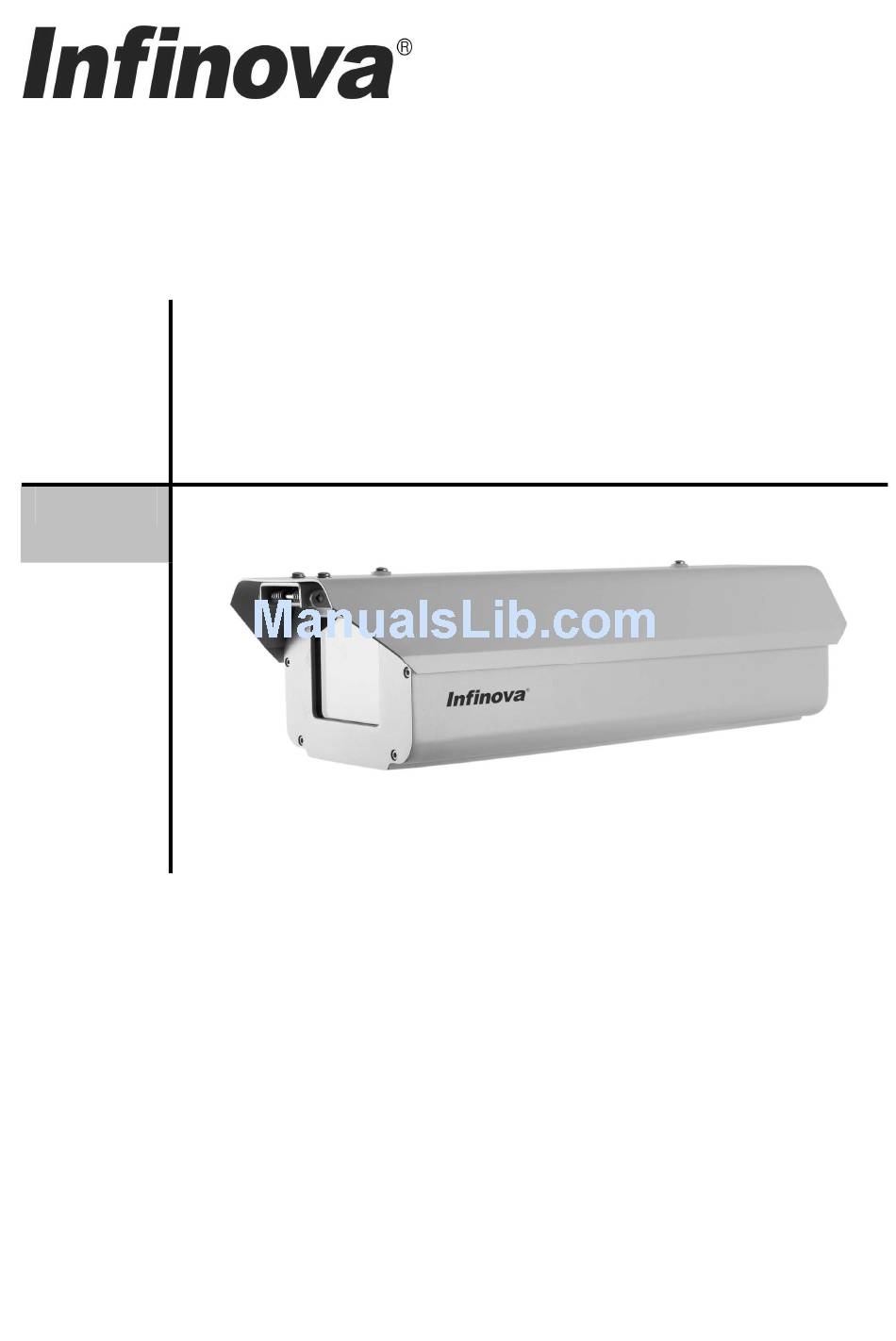

- Page 1 V1405 Series Indoor/Outdoor Small Housing Installation/Operation Instructions...
-
Page 3: Fcc Warning
Infinova. Infinova reserves the right to change this manual and the specifications without prior notice. The most recent product specifications and user documentation for all Infinova products are available on our web site www.infinova.com... - Page 4 Read this manual carefully before installation. This manual should be saved for future use. Important Safety Instructions and Warnings Electronic devices must be kept away from water, fire or high magnetic radiation. Clean with a dry cloth. Provide adequate ventilation. Unplug the power supply when the device is not to be used for an extended period of time.
-
Page 5: Table Of Contents
Table of Contents Chapter I General Description ..................1 1.1 Overview ......................1 1.2 Models .........................1 1.3 Features........................1 1.4 Specifications ......................1 1.5 Packing ........................3 Chapter II Installation ....................4 Chapter III Operation.....................5... -
Page 7: Chapter I General Description
The housings are constructed of aluminum; you can install cameras with either fixed focal or vari-focal lenses. V1405 series housings have adjustable camera sleds to accommodate different sizes of cameras and lenses. 1.2 Models V1405-7 Camera housing, indoor/outdoor, 7" internal V1405-7S Camera housing, indoor/outdoor, 7" internal, w/ sun shield V1405-7SH Camera housing, indoor/outdoor, 7"... - Page 8 V1405-7 (L × W × H): 6.85" × 3.54" × 2.85" (174mm × 90mm × 72.5mm) V1405-10 (L × W × H): 9.84" × 3.54" × 2.85" (250mm × 90mm × 72.5mm) View Window Thickness: 0.16" (4 mm) View Window Area (W×H): 2.64" × 2.24" (67mm × 57mm) Cable Entry: Two PG13.5 compressed cable glands with the maximum...
-
Page 9: Packing
V1573 Adapter, Adds H/V adjustability to V1572-W Wall Mount for housing (V1405, V1406, V1407), 44 lbs. (20 kg) load V1574A Pole Mount adapter for V1571-W V1574B Pole Mount adapter for V1572-W Note: V1572-W should work with V1573. Specifications and appearance are subject to change without notice. 1.5 Packing Name Quantity... -
Page 10: Chapter Ii Installation
Chapter II Installation The Installation steps are as follows: Open the lid to keep the spring loosens. Remove the housing, and you can mount the camera to either side of the sled. Use the two attaching screws holding the camera. Note that the dimension of housing when mounting with wide caliber lens. -
Page 11: Chapter Iii Operation
Chapter III Operation If your housing has a heater, it can be auto activated: Heater is automatically activated when temperature is 46 ± ℉ 9 ℉ (8 ±5 ) ℃ ℃ ; Heater is automatically stopped when temperature is 68 ℉ ±9 ℉ (20 ℃ ±5 ℃ ). - Page 12 Infinova 51 Stouts Lane, Monmouth Junction, NJ 08852, U.S.A. Tel: 1-888-685-2002 (USA only) 1-732-355-9100 Fax: 1-732-355-9101 sales@infinova.com V2.1 1211...
