Summary of Contents for L.R. Baggs M80

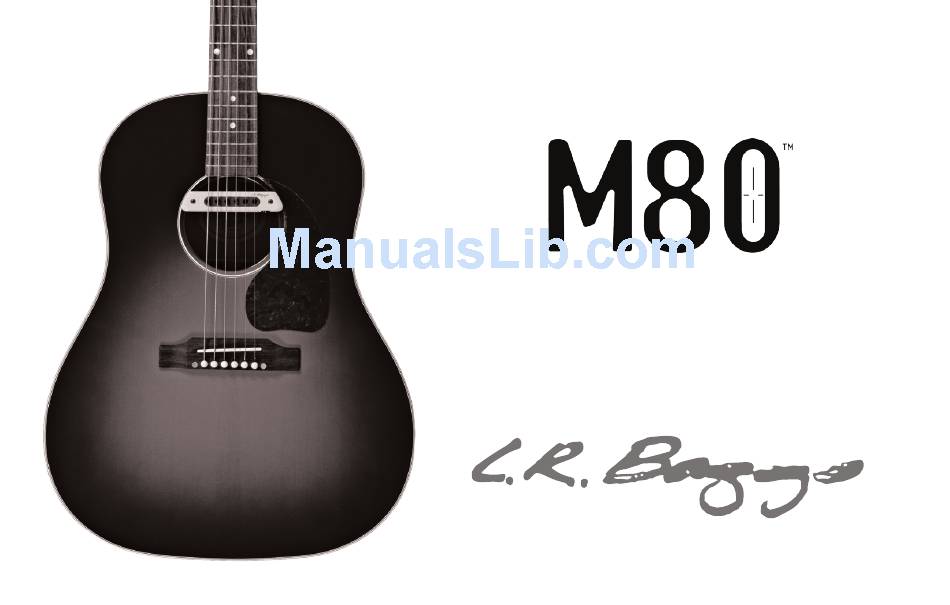

- Page 1 Use r ’s G u i de...
- Page 2 O V E R V I E W A N D C AU T I O N S The M80 will t guitars with soundholes larger than 3.55”. Make sure that the M80 will t the guitar properly before installing the strapjack.
- Page 3 P IC KUP INS TA LL ATI O N Connect the strapjack to the pickup with the 1/8” plug. Loosen the clamp screws on either end of the M80 until the clamps are open enough to accommodate the soundboard thickness. Slide the pickup into the guitar’s soundhole up towards the neck and tighten the screws.
- Page 4 AC T I VE O R PA SSIVE O P E R AT IO N The M80 o ers you the option of either “active” or “passive” settings, essentially giving you two pickups in one (see gure 2). Active setting - In this setting, the M80 engages a high quality, all-discrete preamp that is speci cally tuned to optimize the M80’s performance.
- Page 5 PO LE P IEC E A DJU S TM E N TS The pole pieces on the M80 are factory set for bronze acoustic strings, but this is just a starting place. They are adjustable with the 3/32” Allen wrench to obtain the optimum balance and tone. Raising the pole pieces will increase the output of the strings;...
- Page 6 REGISTER THIS PRODUCT online at www.lrbaggs.com...
