193-FX-(ST/SC) 100BASE TX/FX Converter
Thank you for purchasing our product. This quick start guide contains information
necessary to install and operate the 193-FX-(ST/SC) EtherFast 100BASE-TX/FX
converter. This guide is designed for experienced network installer.
Package Contents
Your package includes the following:
One EtherFast 100BASE-TX/FX converter
One AC power adapter
The quick start guide
Product Overview
The 193-FX-(ST/SC) EtherFast 100BASE-TX to 100BASE-FX converter is primarily
designed for larger and higher bandwidth demanding workgroups that require
expansion of the Fast Ethernet network. 193-FX-(ST/SC) features a RJ45 jack and an
ST or SC fiber optic connectors, connecting the 100BASE-TX network to the
100BASE-FX (fiber optic) network. The DIP switch on 193-FX-(ST/SC) provides the
option of operating in either full or half duplex modes.
converter can create potential distances of up to 2 kilometers between a LAN switch and
another switch or a file server.
193-FX-ST
www.trinetusa.com
Quick Start Guide
At full duplex mode, the
193-FX-SC
Advertisement
Table of Contents
Related Manuals for TNT 193-FX-ST
Summary of Contents for TNT 193-FX-ST

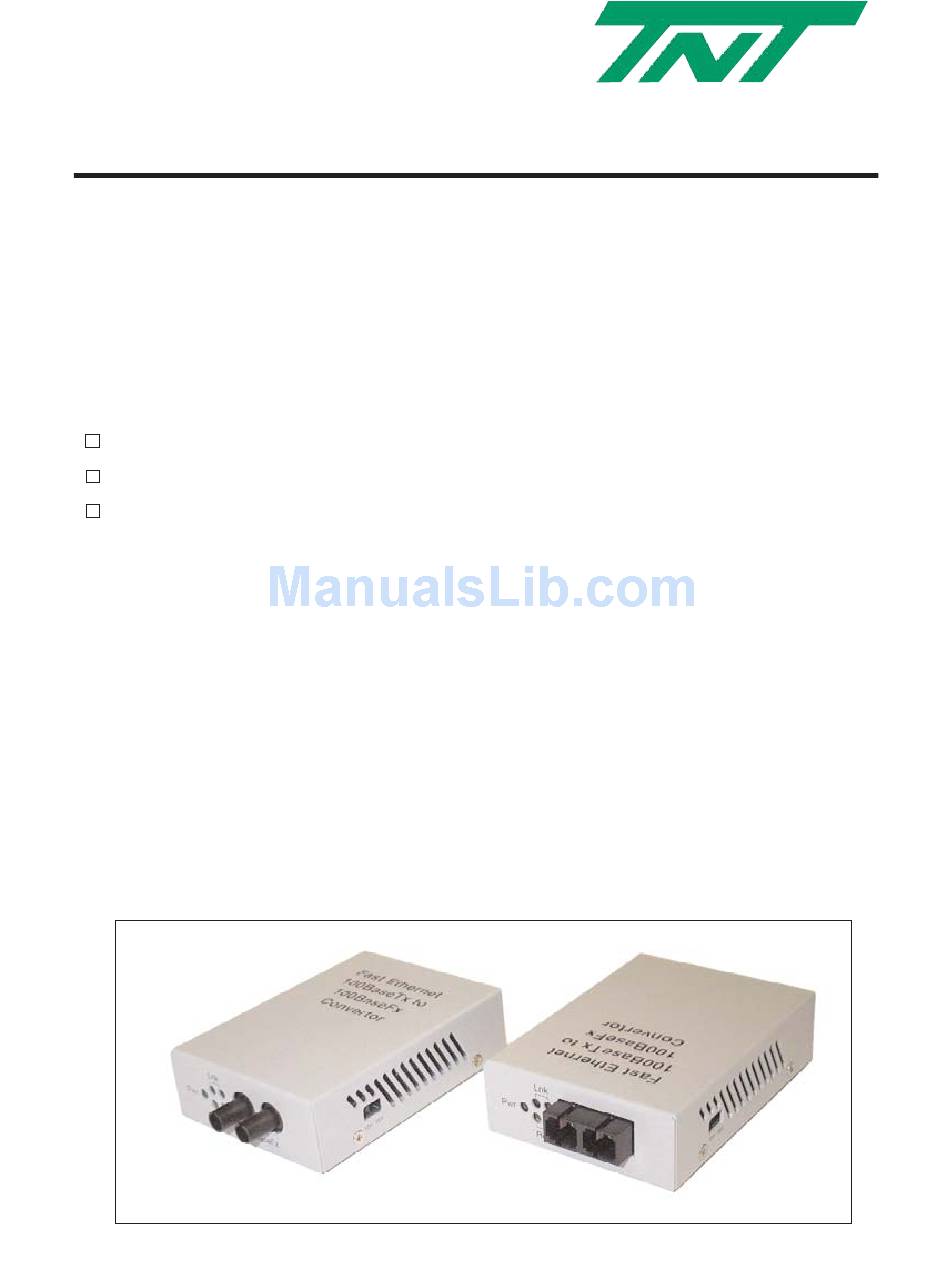

- Page 1 100BASE-FX (fiber optic) network. The DIP switch on 193-FX-(ST/SC) provides the option of operating in either full or half duplex modes. At full duplex mode, the converter can create potential distances of up to 2 kilometers between a LAN switch and another switch or a file server. 193-FX-ST 193-FX-SC...
-
Page 2: Key Features
Key Features • Complies with IEEE802.3u 100BASE-TX and 100BASE-FX standard • Provides one 100BASE-TX and one 100BASE-FX port • Support ST or SC fiber connector • Provides a slide switch to set the Half/Full duplex mode, for connection between a full duplex device and a half duplex device •... -
Page 3: Dip Switch
Installation 1.0 Connect the RJ45 port of 193-FX-(ST/SC) to the 100BASE-TX network. 1.1 The RJ45 port on 193-FX-(ST/SC) is an MDI-X port. Therefore, please use a CAT 5 twisted-pair straight through cable to link with the MDI port of the hub or switch, or use a CAT 5 twisted-pair cross-over cable to link with a MDI-X port of the hub, switch, or the Fast Ethernet card in the Workstation. -
Page 4: Led Indicators
FCC Part 15 of Class A; CE The product specification is subject to change without prior notice www.trinetusa.com The product specification is subject to change without notice. TNT is registered trademark of Tri-Net Technologies, Inc. All other brands are owned by their respective companies.
