TNT R014-SPL-102 Quick Start Manual

HDMI CONNECTOR

OUTPUT 1

HDMI 3D-Ready 1x2 Splitter distributes 3D High-Definition signals with zero loss to

two (2) 3D HDMI displays.

Note1: The green LED indicates power on. The orange LED indicate signal.

OUTPUT 2

HDMI CONNECTORS

(OUTPUT)

HDMI 1x2 SPLITTER

R014-SPL-102

YYWWXXXXX

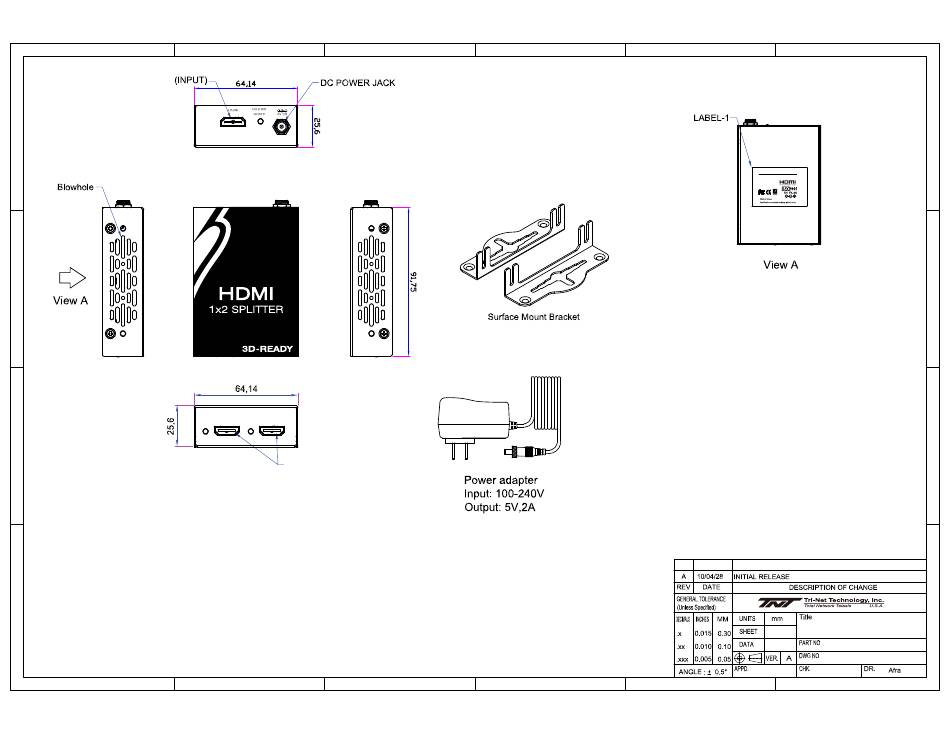

Specification:

1. Maintain resolution up to Blu-ray 1080/60p

2. Maintain highest HDMI digital audio signal

3. Display multiple devices simultaneously

4. HDCP compliant

5. 3D-Ready

6. Surface mounting bracket attached-easy to

do surface mount and Velcro Pole Mount.

7. Dimension: 91.75mm x 64.14mm x 25.6mm

08/24/11

Revise silkscreen & SPEC

4-1

08/24/11

HDMI 1x2 Splitter

R014-SPL-102
