Summary of Contents for Kodak GF SERIES KEH2700GF

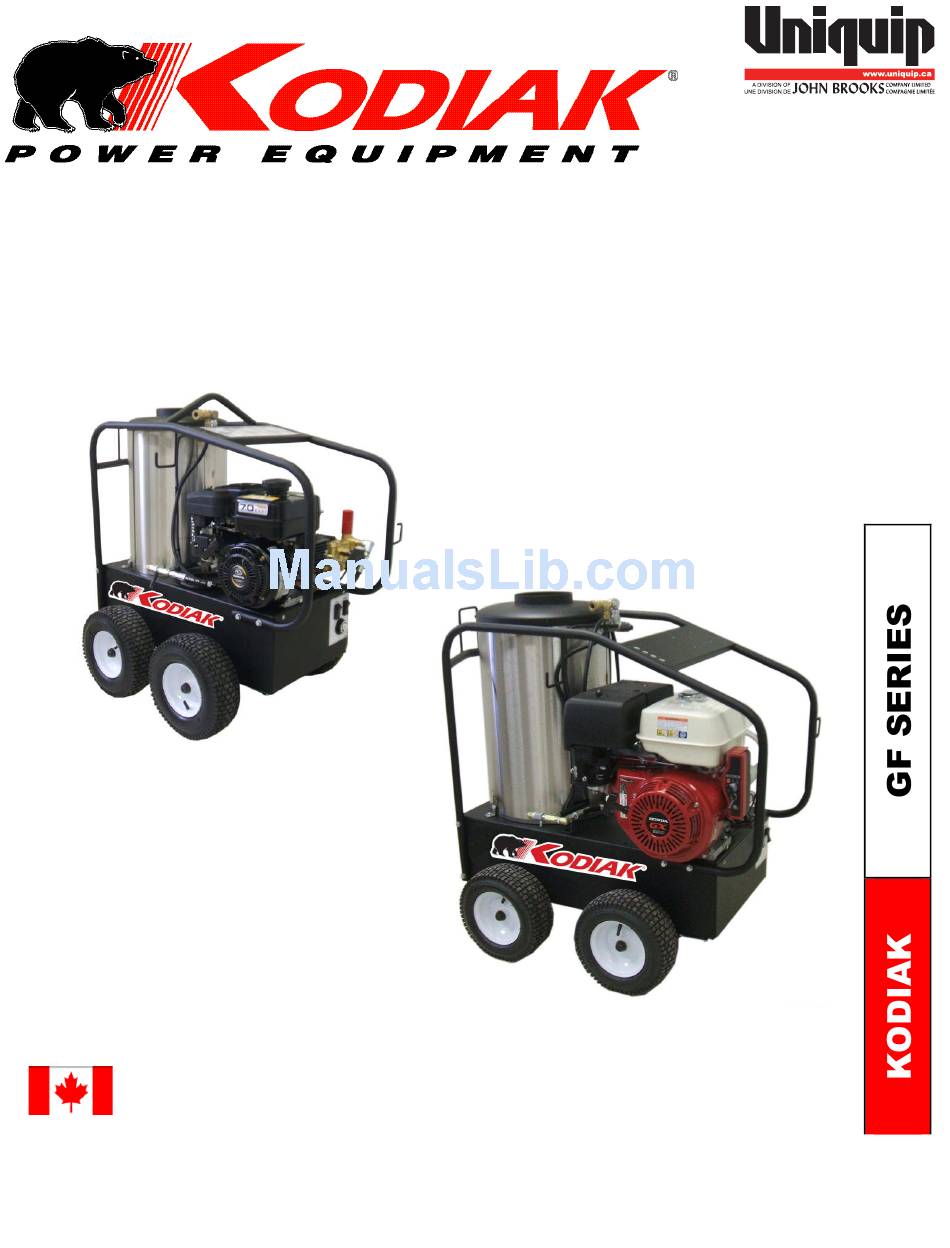

- Page 1 OPERATOR’S MANUAL HOT WATER PRESSURE WASHER Uniquip Canada Division of John Brooks Company Limited 4101 Industriel Laval, QC, H7L 6G9 Tel: 888-332-4012 Fax: 886-825-2221 www.uniquip.ca...
-
Page 2: Table Of Contents
SERIES TABLE OF CONTENTS PAGE SAFETY INSTRUCTIONS BATTERY CONNECTION SETTING UP 3 - 4 OPERATION 4 - 5 SAFETY COMPONENTS THINGS TO CHECK REGULARLY WINTERIZING YOUR PRESSURE WASHER ANNUAL BURNER SERVICE SPECIFICATIONS AND FEATURES TROUBLESHOOTING 9 - 10 ELECTRICAL SCHEMA 11 - 12 WARRANTY POLICY PUMP WARRANTY POLICY... -
Page 3: Safety Instructions
SERIES IMPORTANT SAFETY INSTRUCTIONS 1. Read all safety and operating instructions before using the unit. Read warnings on additive containers. Ventilate work area when using toxic or pungent additives to reduce your exposure to toxic fumes. Use proctective wear, especially for the eyes and skin. Be careful of slippery oors. -
Page 4: Battery Connection
SERIES Battery Connection for KEH2700GF / KEH3500GF side post All models above use a battery with as shown in the picture below 3/8” screw / 3/8” nut Side posts Note use battery group 75 with side posts only. Battery size L 9” x W 71/2” x H 71/4” (Width of battery includes side posts) Caution: Battery can cause electrical shock or fires please exercise extra care when attaching the wires to battery. - Page 5 SERIES SETTING UP When unpacking the unit, if you nd damage due to shipping, contact your dealer. INCOMING WATER SUPPLY Connect a garden hose to the water inlet of the unit. The water supply must be able to deliver 8 gallons per minute at a minimum pressure of 5 psi.
-
Page 6: Setting Up
SERIES SETTING UP (Continued) ADJUSTING THE BURNER Allow su cient air to obtain a clean looking ame by loosening the lock screws and moving the air shutter, and if necessary, the bulk air band. DRAFT CONTROL ADJUSTMENTS The unit is set up in the factory to burn cleanly into atmospheric conditions. Therefore if a chimney is tted to the machine, an "O"... -
Page 7: Safety Components
SERIES OPERATION (Continued) CHANGING PRESSURE The variable Unloader Valve is already set to full pressure. Do not adjust the Unloader past the maximum pressure, as this will not increase the performance, and the excessive shuto pressure will damage the Washer. CLEANING CHEMICALS For chemical application, insert soap nozzle at the end of the lance. -
Page 8: Things To Check Regularly
SERIES THINGS TO CHECK REGULARLY Check for SYSTEM LEAKS. Leaks in the pressure side of the system can cause premature wear (or even failurek of the pump. The WARNING signal for this kind of leak is "frequent" cycling of the unloader. ("FREQUENT"... -
Page 9: Annual Burner Service
SERIES ANNUAL BURNER SERVICE Clean Heating Coil - Remove burner from coil by removing the four ange mount nuts. Inspect inside of combustion chamber and if it is heavily sooted so that air passage could be a serious problem, clean the air passage with a heavy duty vacuum. -
Page 10: Specifications And Features
SERIES ,Kd t d Z DK > < , '& < , '& 'WD h^ & sK>d ' ^ < , '& < , '& & 'W, h^ & & & ^ &d z KDWKE Ed^ < , '& < , '& & dhdZ ^ < , '& < , '& > > &d &... -
Page 11: Troubleshooting
SERIES TROUBLE SHOOTING TROUBLE POSSIBLE CAUSE REMEDY Low Pressure Leaks in water system Tighten all ttings. c i f l l i n i l i f i c i f e l l l l i ader valve. . l a n i l igh pressure pump n i l... - Page 12 TROUBLE SHOOTING (Continued) SERIES TROUBLE POSSIBLE CAUSE REMEDY l l i e t i l l i i f l e t l . s t g i l . t s u l i s l i – c t i , t s eplace.
-
Page 13: Electrical Schema
SERIES KEH2700GF ELECTRICAL WIRING DIAGRAM... - Page 14 SERIES KEH3500GF ELECTRICAL WIRING DIAGRAM...
-
Page 15: Warranty Policy
SERIES WARRANTY POLICY E ective May 1, 2002 This product is warranted to be free from defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase, unless stated otherwise below, when operated and maintained in accordance with the Maintenance and Operation Instructions supplied with the unit. -
Page 16: Pump Warranty Policy
SERIES PUMP WARRANTY POLICY Warranty for Pumps on KODIAK Pressure Washers January 1, 2002 The following statement is intended to assist our customers in understanding the terms of our warranty, the circumstances under which we will honour claims and the procedure for making such claims. KODIAK warrants each pump manufactured by Interpump and General Pump to be free of defects in material and workmanship for a period of (5) ve years from the date of shipment.
