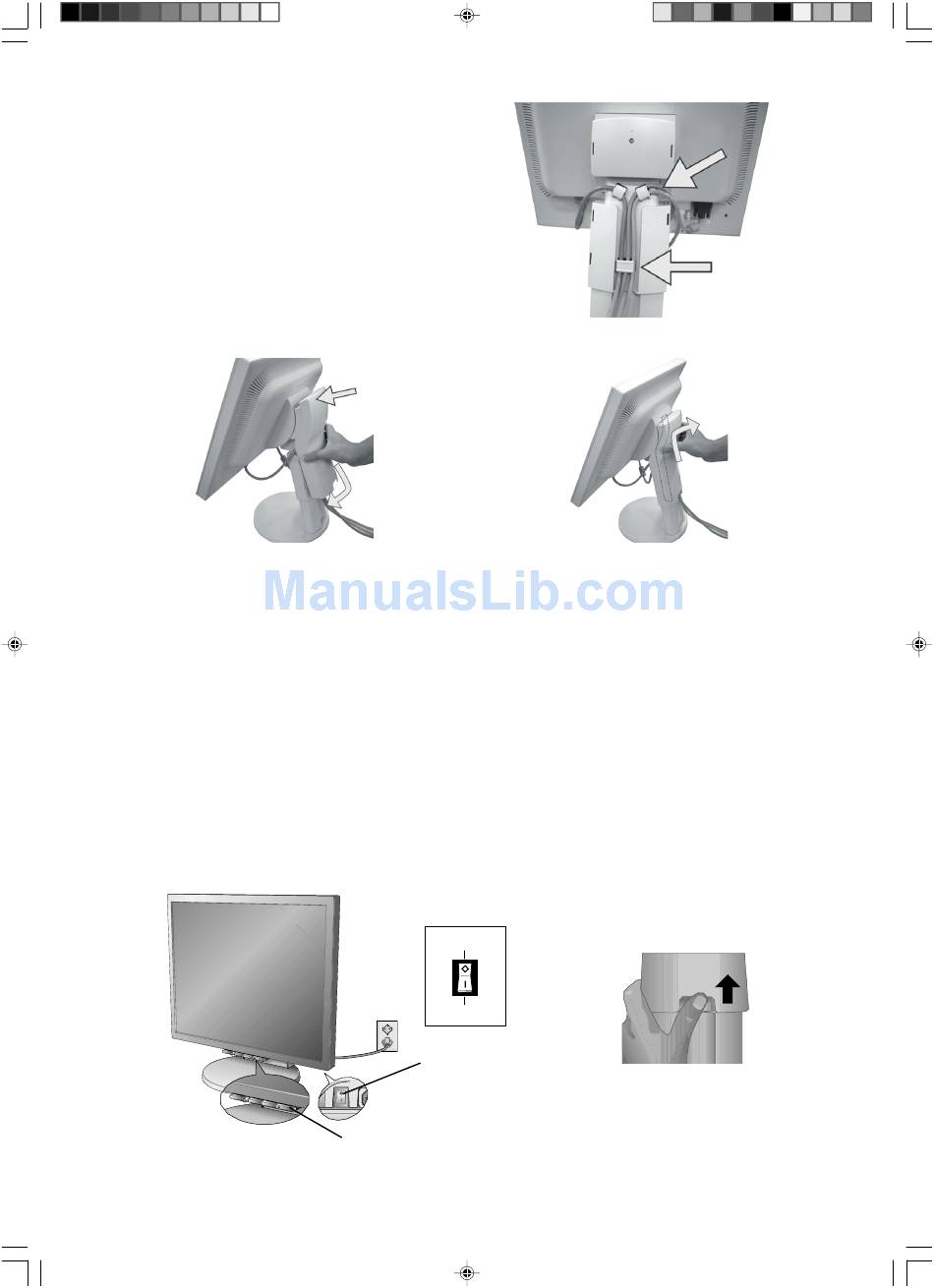

7. Place the DVI cable into the specific hooks indicated in Figure C.3.
8. Make sure all cables are resting flat against the stand (Figure C.3).
9. Hold the all cables firmly and place the cable cover onto the stand
(Figure D.1). To remove the cable cover, lift the cover off as shown in
Figure D.2.
10. Connect the power cord to the power outlet (Figure E.1).
NOTE: If you have difficulty removing the cable cover, please push the lower opening upward to remove it, as show in
Figure E.2.
NOTE: Please refer to Caution section of this manual for proper selection of AC power cord.
11. The vacation switch on the back side of the monitor must be turned on (Figure E.1). Turn on the monitor with the front
power button and the computer.
NOTE: The vacation switch is a true on/off switch. If this switch is on the OFF position, the monitor cannot be turned on
using the front button. DO NOT switch on/off repeatedly.
12. No-Touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings.
For further adjustments, use the following OSM controls:
• Auto Adjust Contrast (Analog input only)
• Auto Adjust (Analog input only)
Refer to the Controls section of this User's Manual for a full description of these OSM controls.
NOTE: If you have any problems, please refer to the Troubleshooting section of this User's Manual.
01_English
Insert Top First
Then Bottom
Figure D.1
Power Button
Figure E.1
4
Figure C.3
OFF Position
ON Position
Vacation Switch
English-4
13/4/06, 9:23
DVI Cable
Flat
Figure D.2
Figure E.2
