qing

USB3.0 Type HD Video Conferencing

Camera

User Manual

V1.0

(English)

Table of Contents

Summary of Contents for GlobalMedia USB3.0 HD Video Conferencing Camera

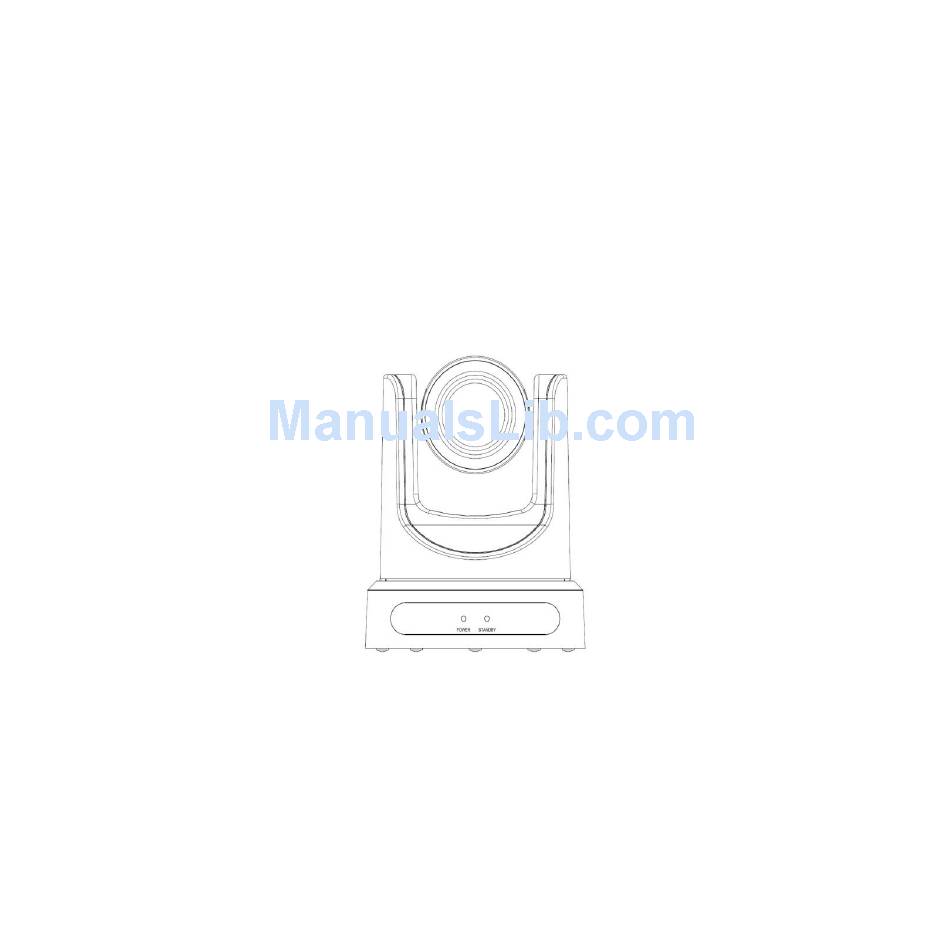

Page 1 qing USB3.0 Type HD Video Conferencing Camera User Manual V1.0 (English)
Page 2 Preface Thanks for using this USB3.0 HD Video Conferencing Camera. This manual introduces the function, installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: ...
Page 3: Table Of Contents
Contents 1、 Note·································································································· 3 2、 Supplied Accessories·············································································· 4 3、 Quick Start·························································································· 5 4、 Features······························································································8 5、 Product Specification··············································································9 6、 Main Unit·························································································· 11 7、 IR Remote Controller Explanation···························································· 12 8、 Use IR Remote Controller······································································ 14 9、 RS-232 Interface··················································································17 10、 Serial Communication Control································································· 19 11、...
Page 4: Note
Note  Electric Safety Installation and operation must accord with electric safety standard.  Caution to transport Avoid stress, vibration and soakage in transport, storage and installation.  Polarity of power supply The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing as follows.
Page 5: Supplied Accessories
Supplied Accessories When you unpack, check that all the supplied accessories are included: Camera ........1PCS AC power adaptor ...... 1PCS Power cord........1PCS RS232 cable........1PCS Remote controller......1PCS User manual ........1PCS...
Page 6: Quick Start
Quick Start Step1. Please check connections are correct before starting...
Page 7 Step2. Setting switches Set both of the switch1 and switch2 to "OFF'. That is "Normal Working Mode". SW-1 SW-2 Modes Normal Working Mode Step3. Setting of the system select switch The option of video format: VIDEO SYSTEM 1080i60 1080i50 720p60 720p50 576i 1080p30...
Page 8 Step6. (Optional) If you want to restore the factory default settings, Press [MENU] button to display the OSD menu. Select the item [MENU] -> [RESTORE DEFAULT] -> [Restore]. Set the value [Yes], press [HOME] button to restore the factory default settings. RESTORE DEFAULT Restore Change Value...
Page 9: Features
Features 1. Support USB3.0 transmission, the highest rate up to 5Gbps, ensure real-time lossless HD data transmission. 2. Support HD USB3.0,HD-SDI(optional),Network stream, three-stream simultaneous output, compatible with CVBS. 3. Adopt Panasonic's 1/3 inch, 2.12 million pixels high quality HD CMOS sensor, which can realize maximum 1920 x 1080 high resolution image with high quality, maximum output frame rate reach 30 frames per second.
Page 10: Product Specification
Product Specification Name USB3.0 Type HD Color Video Camera Camera 1080i/60,1 Video System 1080p/25, NTSC, PA 1/3", CMOS, Total Pixel: 2.2M, Sub stream Sensor 640x360,320x180 Effective Pixel: 2.12M resolution 128K,256K,384K,512K,768K,1024 K,1536K,2048K,3072K,4096K, Scanning Mode Progressive Rate 5120K,6144K,8192K Optional, or Customed 20x, f4.42mm ~ 88.5mm, F1.8 Variable rate, fixed rate, fixed Lens Rate control...
Page 11 1-ch 3.5mm audio interface, LINE Horizontal Rotation ±170° Audio Input IN/LINE OUT Range 1xRS-232 IN: 8pin Min DIN, Max Vertical Rotation -30° ~ +90° Distance: 30m, Protocol: VISCA/ Range Pelco-D/Pelco-P Control Input/Output 1xRS-485: 2pin phoenix port, Pan Speed Range 1.7° ~ 100°/s Max Distance: 1500m, Protocol: VISCA/Pelco-D/Pelco-P JEITA type (DC IN 12V)
Page 12: Main Unit
Main Unit 1. Audio LINE IN Interface 7. RS232 IN jack 2. Audio LINE OUT Interface 8. RS232 OUT jack 3. CVBS Interface 9. Network 4. Dip switches 10. USB3.0 5. System select switch 11. DC 12V jack 6. RS485 jack 12.
Page 13: Ir Remote Controller Explanation
IR Remote Controller Explanation 0. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. (Note: Power consumption in standby mode is approximately half of the normal mode) 1. Position Buttons To set preset or call preset 2.
Page 14 5. Focus Buttons Used for focus adjustment. Press [AUTO] adjust the focuses on the center of the object automatically. To adjust the focus manually, press the [MANUAL] button, and adjust it with [Focus＋] (Focus on far object) and [Focus－] (Focus on near object) 6.
Page 15: Use Ir Remote Controller
USE IR Remote Controller...
Page 16 When the camera is working, you can use Press and hold the up/down/left/right button, remote controller to perform panning, tilting, the camera will keep rotating from slow to fast, until zooming and focusing, store and call back preset it run to the mechanical limit; the camera stops as positions.
Page 17 3. Focus Control 5. Presets Set/Clear Focus Far: Press [FOCUS+] button (NOTE: Effective only in manual focus mode) Focus Near: Press [FOCUS-] button (NOTE: Effective only in manual focus mode) Press and hold the button, the action of focus continues and stops as soon as the button is released. 1.
Page 18 6. Recalling the Preset 7. Camera Selection Press the button corresponding to the camera you want to operate. Press any of the numeric buttons 0-9 directly to 8. Camera IR Address Set recall stored preset positions and settings. Note: No action is executed if a relative preset [*]+[＃]+[F1]: Address1 position is not stored.
Page 19: Rs-232 Interface
RS-232 Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND IR OUT 7.IR OUT 7.NC 8.NC...
Page 20 VISCA Network Configuration...
Page 21: Serial Communication Control
Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface.  RS232 Communication Control The camera can be controlled via RS232 ,the parameters of RS232C are as follows: Baud rate: 2400/4800/9600 bit/s. Start bit: 1 bit.
Page 22 VISCA Command List Part 1 Camera-Issued Messages Ack/Completion Message Command Command Packet Comments Function z0 4y FF Return when the command is accepted. ACK/Comletion (y: Socket No.) Messages z0 5y FF Return when the command has been Completion (y: Socket No.) executed.
Page 23 Returned when a command canot be z0 6y 41 FF executed due to current conditions.For Command Not Executable (y: Execution command Socket example, when commands controlling the No. Inquiry command: 0) focus manually are received during auto focus. Part 2 Camera Control Command Command Function Command Packet...
Page 24 Auto 8x 01 04 35 00 FF Normal Auto Indoor mode 8x 01 04 35 01 FF Indoor mode Outdoor mode 8x 01 04 35 02 FF Outdoor mode CAM_WB OnePush mode 8x 01 04 35 03 FF One Push WB mode Manual 8x 01 04 35 05 FF Manual Control mode...
Page 25 8x 01 04 0D 02 FF Down 8x 01 04 0D 03 FF Direct 8x 01 04 0D 00 00 0p 0q FF pq: Bright Position 8x 01 04 3E 02 FF Exposure Compensation On/Off 8x 01 04 3E 03 FF Reset 8x 01 04 0E 00 FF CAM_ExpComp...
Page 26 8x 01 04 61 02 FF CAM_LR_Reverse Image Flip Horizontal On/Off 8x 01 04 61 03 FF 8x 01 04 66 02 FF CAM_PictureFlip Image Flip Vertical On/Off 8x 01 04 66 03 FF mm: Register No. (=00-7F) CAM_RegisterValue 8x 01 04 24 mn 0p 0q FF pp: Register Value (=00-7F) p: Color Gain setting 0h (60%) to Eh CAM_ColorGain...
Page 27 CAM_SettingReset Reset 8x 01 04 A0 10 FF Reset Factory Setting CAM_Brightness Direct 8x 01 04 A1 00 00 0p 0q FF pq: Brightness Position CAM_Contrast Direct 8x 01 04 A2 00 00 0p 0q FF pq: Contrast Position 8x 01 04 A4 00 FF Flip-H 8x 01 04 A4 01 FF CAM_Flip...
Page 28 y0 50 02 FF Outdoor mode y0 50 03 FF OnePush mode y0 50 05 FF Manual CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain y0 50 00 FF Full Auto...
Page 29 odeInq y0 50 04 FF B&W CAM_MemoryInq 8x 09 04 3F FF y0 50 0p FF p: Memory number last operated. y0 50 02 FF SYS_MenuModeInq 8x 09 06 06 FF y0 50 03 FF y0 50 02 FF CAM_LR_ReverseInq 8x 09 04 61 FF y0 50 03 FF y0 50 02 FF...
Page 30 y0 50 0A FF 1280x720p50 y0 50 0C FF y0 50 0D FF y0 50 0E FF y0 50 02 FF IR_Receive 8x 09 06 08 FF y0 50 03 FF ww: Pan Max Speed Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF zz: Tilt Max Speed y0 50 0w 0w 0w 0w...
Page 31 y0 50 00 FF CAM_AFZone 8x 09 04 AA FF y0 50 01 FF Center y0 50 02 FF Bottom p: Color Hue setting 0h (− 14 dgrees) to CAM_ColorHueInq 8x 09 04 4F FF y0 50 00 00 00 0p FF Eh ( +14 degrees y0 50 00 FF High...
Page 32 p: AF sensitivity q.bit0: Picture flip(1:On, 0:Off) rr.bit6~3: Color Gain(0h(60%) to CAM_EnlargementBl y0 50 00 00 00 00 00 00 00 0p Eh(200%)) 8x 09 7E 7E 03 FF ockInq 0q rr 0s 0t 0u FF s: Flip(0: Off, 1:Flip-H, 2:Flip-V, 3:Flip-HV) t.bit2~0: NR2D Level u: Gain Limit...
Page 33 Pelco-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...
Page 34 Pelco-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0...
Page 35: Menu Setting
Menu Setting 1. MENU EXPOSURE Press [MENU] button to display the main menu Mode Auto on the normal screen, using arrow button to move ExpCompMode the cursor to the item to be set. Press the [HOME] Backlight button to enter the corresponding sub-menu. Gain Limit Anti-Flicker MENU...
Page 36 mode ) COLOR DRC: DRC strength, Optional items: 0 ~ 8. WB Mode Auto Bright: Intensity control, Optional items: 00~17. RG Tuning (Effective only in Bright mode) BG Tuning Anti-Flicker Flicker: Anti-flicker. Optional Saturation 100% items: Off, 50Hz, 60Hz (Effective only in Auto, Bright mode) IR Filter Iris: Aperture value.
Page 37 items: Auto,0 ~ 15 IR Filter: IR Filter, Optional items:1 ~ 3 Flip-H: Image flipped horizontally. Optional AWB sens: The white balance sensitivity, items: On, Off Optional items: Normal, High, Low. Flip-V: Image Flip Vertical. Optional items: Style: Optional items: Style1, Style2, Style3. On,Off B&W-Mode: Image color.
Page 38 7. SETUP AF-Sense: Automatic focusing sensitivity options, Optional items: Low, Normal, High Move the cursor to the Setup item in the main menu and press [home] button, SETUP menu appears, as shown in the following figure. 6. NOISE REDUCTION SETUP Move the cursor to the Noise Reduction item in Language the main menu and press [home] button, NOISE...
Page 39 V_AddrFix: If I can change through the serial Restore: Confirm restore factory settings. port of infrared switch, Optional items: On, Off Optional items: Yes, No （ When set to On, useless in 88 30 01 FF Note: Press [HOME] button to confirm, All Command）...
Page 40: Operating Environment
Equipment Setup and internet connection 1. Operating Environment Operating System: Windows 2000/2003/XP/vista/7 Network Protocol: TCP/IP Client PC: P4/128MRAM/40GHD/ support scaled graphics card, support DirectX8.0 or more advanced version. 2. Equipment Installation 1) Connect internet camera to your internet or to your PC directly via internet cable. 2) Turn on DC12V power.
Page 41 Picture 1.2 Connect by router /interchanger IP camera visited/ controlled by LAN Setup IP address 1.1 Connect IP Camera to internet (or PC), then turn on the power on IP Camera, shown as above. IP address can be searched via update software(software upgrading tool,named upgrade_En.exe in small CD in package). shown as below: Run upgrade_En.exe (UPGRADE v1.8) by CD-Rom, click [Search].The software will show the current LAN camera's IP address, subnet mask number, network gateway number and camera MAC serial number etc, shown as...
Page 42 If IPC IP address and PC IP address not in the same internet segment, upgrade_En.exe can modify IP address, subnet mask and port number etc. accordingly. In UPGRADE v1.8, select the camera needed to be modified, shown as below:...
Page 43 Click “config” then go to below:...
Page 44 Enter new IP in "IP" bar, subnet mask in "Mask" bar, Gateway,First DNS, MAC address,and click “Set”. Shown as above.(For example: if your PC IP is 192.168.1.88, then camera IP must be 192.168.1.xx, the first, second, third number must keep the same) NOTE IP camera default IP address"192.168.100.88", user "admin", password "admin".
Page 45 2.2 Input login name and password, click "confirm", then pop up below window,language select button on the left bottom:...
Page 46 ！ NOTE If user first time use this camera by internet (only for new user), must install a player software (VLC). Please go to http://4dx.pc6.com/xy/vlcplayer.zip,pop out the download window, click“Save”. Then Install VLC (player software), After installation,login again,will show as above: IP Camera accessed/controlled by WAN (internet) 1.
Page 47 2 dynamic DNS available: Dyndns.org, 3322.org 1.1 Router Port Mapping: Take TP-LINK router for example,enter Router Home Page (interface page),select “Transit control”- “ Transit rule"--"Virtual server"-- “Virtual service” ,add a new port number in “Outside Port” ,add a new port number in “inside port”, put camera IP address to “IP address”,then select “Apply” and “Add”,shown as below: (sorry,we do not have English Version TP-Link here,so put the Chinese Version picture for reference,the position is the same)
Page 48 Dynamic DNS visit camera 1.1 Camera accessed by dynamic DNS Set domain name to camera, setup the parameter, then dynamic DNS can access camera. Access link：http://hostname :port number For example, setup host computer name: youdomain.f3322.org, camera port number: 554, Access link should be: http://youdomain.3322.org:554 ！...
Page 49 1.2 Input URL address: rtsp://ip: port number/1 (Main stream); rtsp://ip: port number/2(sub stream)(When RTSP port number default value is 554,then can be omitted as rtsp://ip/1 or rtsp://ip/2)
Page 50 IP Camera parameter setup Homepage introduction 1.1 Menu All pages include 2 menu bars: Real time monitoring: displaying video image Parameter setup: with function buttons 1.2 Video viewing window Video viewing window must be same as video resolution, the bigger the resolution is, the bigger the playing area is.
Page 51 1) PTZ direction control box: Up, down, left, right, home oblique button as above 2) Rate: Vertical speed can be chosen as 1 ~ 24, horizontal direction at the rate of 1 ~ 20. select corresponding speed and click direction button to realize PTZ speed up or speed down. 3) Zoom In/Zoom out: for zooming in or zooming out, Focus In/ Focus Out: Focusing on distant objects or Focusing on close objects.
Page 52 Chinese/English Media 1.1 Video Setup,please click "Video"...
Page 53 1) Video format Support 50HZ(PAL)and 60HZ(NTSC),and Dial priority three formats. 2) Video Coding Support baseline and mainprofile format 3) Resolution Main bit flow support 1920x1080,1280x720,minor bit flow support 640x360,320x180,the bigger resolution is, the clearer the image will be, more network bandwidth will be taken. 4) Bit Rate User can assign bit flow/stream, normally speaking, the bigger bit flow is, the clearer the image will be.
Page 54 Brightness Image bright 0~100, slider control, on the right shows the corresponding numerical. Default 43. Saturation Saturation 0~100, slider control, on the right shows the corresponding numerical. Default 50. Contrast Contrast0~100, slider control, on the right shows the corresponding numerical. Default 57. Sharpness Sharpness0~100, slider control, on the right shows the corresponding numerical.
Page 55 Distortion Adjusted the wide-angle lens image distortion occurs, controllable range 0 ~ 100, right shows the corresponding numerical. Default 0. Flip & Mirror Tick Flip to realize image upside down, tick mirror to realize image around the mirror. Default not tick. Button Adjusting the parameters, press "apply"...
Page 56 Input Type line in only Input VolL The volume of the left channel Input VolR The volume of the right channel Button Press "apply" button to save parameters, press "cancel" button to cancel parameter System Setting,please click “System” Work Mode Work Mode RTSP Reboot Click the "Reboot"...
Page 57 Lan Settings Default the IP address is 192.168.100.88, The MAC address can be modified. Port Settings IP address identifies the network device, the device can run multiple web applications, each network program using network port to transmit data, so data transmission to be carried out between the port and port.
Page 58 RTSP Port Network camera support RTSP protocol, use the VLC tools broadcast. TCP Port Support TCP protocol, default port: 5678. Apply / Cancel Modify network parameters then press "Apply" button to modify network parameters, press "Cancel" button to cancel network parameters. Device Information,please click “information”...
Page 59: Network Control
Network Control 1. View from Web browser (better in IE)  To view from web browser, firstly need to check camera IP address. There are 2 methods to check: Method 1: press * and # and 4 on remote controller one by one, the camera IP address will be shown on screen.
Page 60 Method 2: Open “upgrade_En.exe”, change IP and click “Set”...
Page 61 Once IP changed, need to restart the camera. 2 methods to restart as below: Method 1: Turn off and turn on manually to restart camera Method 2: On web page, find “System” and click “Apply” (when under remote controlling environment, better use this method)
Page 62 PTZ ON IP NETWORK This model currently supports various PTZ control methods, including RS232, RS485, IR remote control, HTTP CGI, and TCP protocol. The following is the detailed description about HTTP CGI and TCP Protocol control methods. 1. TCP Protocol Method V51N implements TCP server inside, there is a port configurated by Web for receiving the connection from TCP client,the TCP port number is 5678.
Page 63 UpRight 81 01 06 01 VV WW 02 01 FF DownLeft 81 01 06 01 VV WW 01 02 FF DownRight 81 01 06 01 VV WW 02 02 FF Stop 81 01 06 01 VV WW 03 03 FF Home 81 01 06 04 FF Reset...
Page 64 [action] including: focusin, focusout, focusstop; [focus speed]: 0(low speed) – 7(high speed) 2.4 Preset Position control URL format as below: http://[Camera IP]/cgi-bin/ptzctrl.cgi?ptzcmd&[action]&[position number] More descriptions: [Camera IP]: This camera IP address; [action] including: posset, poscall; [position number]: 0-89,100-254.
Page 65: Maintenance And Troubleshooting
USB Control Connect USB cable from camera to computer (must with USB3.0 port) Install the software in the small CD in the package (amcap.exe) ,and click to open. Maintenance and Troubleshooting Camera Maintains  If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC adaptor to the outlet.
Page 66: Copyright Notice
 Image dithering even at widest zoom position 1. Check whether camera is fixed correctly. 2. Make sure if there are something like vibration machine or other things nearby. Control  IR remote controller cannot control the camera 1. Change the battery 2.
