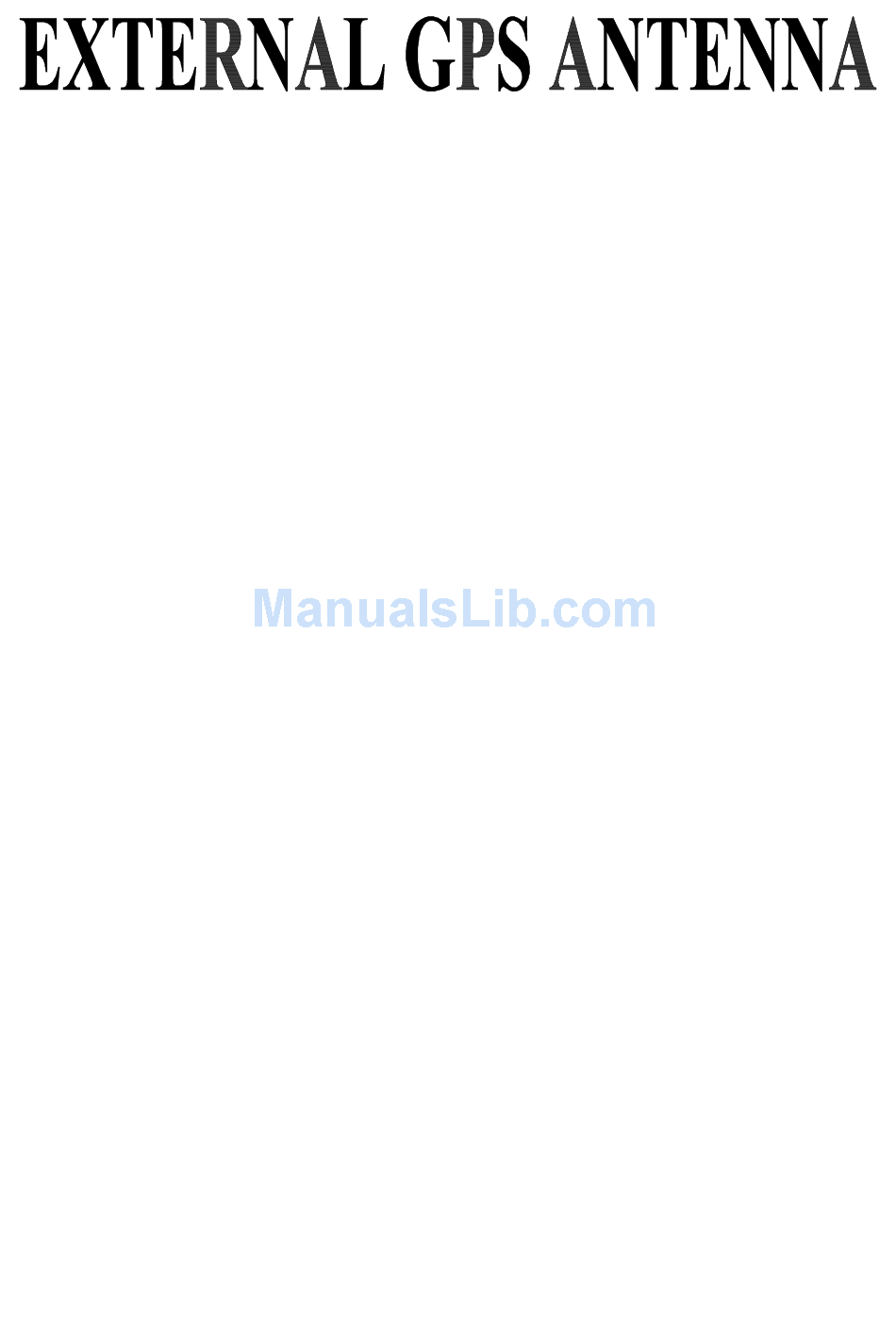

- Page 1 UX0GPGxx 10-35V (10 mt. cable) Issue A220302...
- Page 2 INTRODUCTION This GPS receiver module is based on a ultimate 12 channel GPS engine. The GPS engine, interface electronics, and a passive GPS antenna are enclosed inside the weather- proof plastic housing. This provides sophisticated state of the art GPS performance in an easy to use package.
- Page 3 1.2) UX0GPG00xx GPS RECEIVER CABLE P. # CBC0FS0704 Conxall Connector Wire Colour Description Signal Specification Pin n. Signal Name GPS RX + green NMEA-0183 signal RS232C 4800 N81 received from plotter GPS TX + brown NMEA-0183 signal "RS232C" (0 to 5V) transmitted to plotter 4800 N81 GPS RX -...
- Page 4 1.4) UNPACKING AND INSPECTION Carefully remove the system parts from the packing container. Ensure that the following system parts are enclosed: • GPS Receiver/Antenna • Interface Cable (10 metres) Inspect the packaging and system parts for any signs of damage in transit. If any damage is found notify the carrier and supplier immediately.
- Page 5 lower and an Antenna mounted high up will not suffer the athwartships velocities or accel- erations of small vessels and the result will be satisfactory. Summarising therefore, the Antenna must be mounted so as to have a clear view of the sky from the horizon upwards, must be clear of wire rigging and other larger metal objects as referred to above and, not subjected to excessive rolling velocities.
