LG LHX-557 Owner's Manual
5 disc dvd combi home theater system
Hide thumbs
Also See for LHX-557:
- Specifications (2 pages) ,
- Quick setup manual (2 pages) ,
- Warranty (1 page)
Related Manuals for LG LHX-557
Summary of Contents for LG LHX-557
-
Page 1: Home Theater System

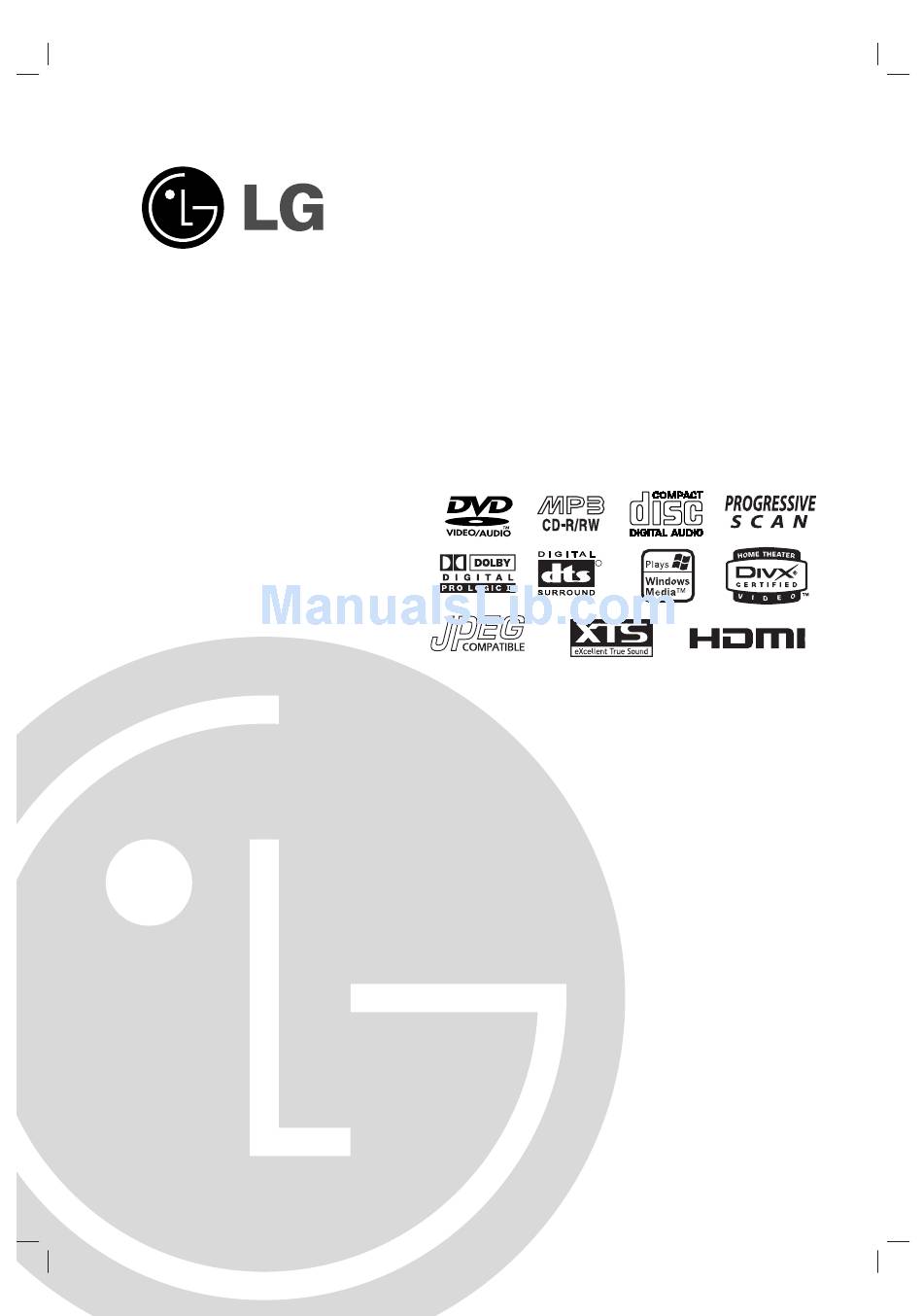

LH-EC950SB NA1ULLS 5 Disc DVD COMBI HOME THEATER SYSTEM OWNER’S MANUAL MODEL: LHX-557 Before connecting up, operating or repairing this product, please read this instruction booklet carefully and completely. - Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of...
-
Page 3: Introduction
IMPORTANT SAFETY INSTRUCTIONS CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS MANUAL FOR FUTURE REFERENCE. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. -
Page 4: Table Of Contents
Contents Introduction ....3-12 IMPORTANT SAFETY INSTRUCTIONS ..3 Symbol used in this Manual ....6 About the Symbol Display Notes on Discs . - Page 5 Operation (Continued) ..29-49 DVD Operation .....35-49 PLAYING A DVD ......35 •...
-
Page 6: Symbol Used In This Manual
Introduction To ensure proper use of this product, please read this Owner’s Manual carefully and retain for future reference. This manual provides information on the operation and maintenance of your Combi Home Theater System. Should the unit require service, contact an Authorized Service Center. -
Page 7: Types Of Playable Discs
Types of Playable Discs (8 cm / 12 cm disc) DVD audio discs (8 cm / 12 cm disc) Audio CD (8 cm / 12 cm disc) In addition, this unit plays DivX files, DVD -R, DVD +R, DVD -RW, DVD +RW, and CD-R / CD-RW that contains audio titles, MP3, WMA, and/or JPEG files. -
Page 8: Disc-Related Terms
Disc-related terms DVD ±R / DVD ±RW DVD -R and DVD +R are two different standards for recordable DVD drives and discs. This format allows information to be recorded onto the DVD disc only once. DVD +RW and DVD -RW are two standards for re-writable media, meaning the DVD content can be erased and re-recorded. -
Page 9: Front Panel
Front Panel POWER button and indicator Switches the Home Theater System ON and OFF. Lights blue when the Home Theater System is turned off. Drawer (DVD deck) Insert discs here. Z OPEN SEL/CLOSE Opens or closes the disc tray. Disc buttons (DISC 1 - DISC 5) Press to select the disc directly. -
Page 10: Display Window
Display Window Indicates current audio stream. Indicates the unit is in the radio recording mode. Indicates the current surround mode. Lights up when an SAP BILINGUAL broadcast is being received. Programmed playback active. DIGITAL PROG PROLOGIC RADIO PCM WMA PHOTO RPT ALL A B Indicates the unit is in the TV mode. -
Page 11: Remote Control
Remote Control POWER Turns Home Theater System ON and OFF. Select the Home Theater System’s function mode to DVD. Select the Home Theater System’s function mode to VCR. FM/AM Tuner select Select FM or AM band as the listening choice. (FM and AM bands). Disc buttons (1-5) To enjoy great sound effect. -
Page 12: Rear Panel
Rear Panel AC Power Cord Plug into the power source. HDMI output providing a high quality interface for digital audio and video. ANTENNA IN Connect the VHF/UHF/CATV antenna to this terminal. Do not touch the inner pins of the jacks on the rear panel. -
Page 13: System Setup
Connections Tips: Depending on your TV and other equipment you • wish to connect, there are various ways you could connect the Home Theater System. Use only one of the connections described below. Please refer to the manuals of your TV, VCR, •... -
Page 14: Connecting To A Tv
Connecting to a TV Make one of the following connections, depending on the capabilities of your existing equipment. RF COAXIAL CONNECTION Connect the RF.OUT jack on the Home Theater System to the antenna in jack on the TV using the 75-ohm Coaxial Cable supplied (R). -
Page 15: Antenna Connections
Antenna Connections Connect the supplied FM/AM antenna for listening to the radio. Connect the AM Loop antenna to the AM antenna connector. Connect he FM Wire antenna to the FM antenna connector. Notes: • To prevent noise pickup, keep the AM Loop antenna away from the Combi Receiver and other components. •... -
Page 16: Accessory Audio/Video (A/V)
Accessory Audio/Video (A/V) Connections to Home Theater System Connect the VCR IN LINE 1 or VIDEO/AUDIO(L/R) jacks on the Home Theater System to the AUDIO/VIDEO OUT jacks on your accessory component, using the optional audio/video cables. If the auxiliary devices (e.g. DVD) are equipped with OPTICAL OUT jack, connect them to the OPTICAL IN jack of the Home Theater System. -
Page 17: Hdmi Connection
HDMI Connection If you have a HDMI TV or monitor, you can connect it to this Home Theater System using a HDMI cable. 1. Connect the HDMI OUT jack on the Home Theater System to the HDMI jack on a HDMI compatible TV or monitor (H). -
Page 18: Speaker System Connection
Speaker System Connection Connect the speakers using the supplied speaker cables. To obtain the best possible surround sound, adjust the speaker parameters (volume, distance, etc.). Notes: Be sure to match the speaker cable to the appropriate terminal on the components: + to + and – to –. If the cables are reversed, the sound will be distorted and will lack bass. -
Page 19: Speaker Positioning
Speaker Positioning In the case of normal position use the 6 speakers (2 front speakers, 1 center speaker, 2 rear speakers and subwoofer). If you want to play the excellent bass sound, DTS digital surround or Dolby Digital surround, you should connect a subwoofer. -
Page 20: Mini Glossary
Mini Glossary Allows you to enjoy 5.1(or 6) discrete channels of high quality digital audio from DTS program sources such as discs, DVD and compact discs, etc. bearing the trademark. DTS Digital Surround delivers up to 6 channels of transparent audio and results in exceptional clarity throughout a true 360 degree sound field. -
Page 21: Vcr Operation Setup
VCR Operation Seup On-Screen Display (OSD) Some of these functions appear during VCR operation. ❶ ❷ ❸ ❹ PLAY HI-FI CH 4 STEREO FEB 2 , WED 2:15 PM ❻ ❼ ❶ TAPE SPEED DISPLAY Shows the current tape speed. ❷... -
Page 22: Vcr Setup Menu Options
VCR Setup Menu Options 1. Press MENU and the MAIN menu will appear. 2. Use v/V to select the SETUP menu, then press MEMORY/ENTER. The SETUP menu will appear. 3. Use v/V to choose a desired option on the SETUP menu. -
Page 23: Setting The Clock
Setting the Clock The Home Theater System gives you two ways to set the time and date: the Auto Clock Feature or manually. The Auto Clock feature enables the Home Theater System to set up the clock while the Home Theater System is turned off. -
Page 24: Dvd Operation Setup
DVD Operation Seup On-Screen Display You can display the general playback status on the TV screen. Some items can be changed using the menu. To use the on-screen display: 1. Press DISPLAY during playback. 2. Press v / V to select an item. The selected item is highlighted. -
Page 25: Initial Settings
Initial Settings By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 25 to 28. To display and exit the Menu: Press SETUP to display the menu. -
Page 26: Audio
Note: If your TV does not accept the Progressive • Scan format, the picture will appear scrambled if you try Progressive Scan on the Home Theater System . 4. When the confirm menu appears on your screen Cancel is highlighted as default. Use the b / B buttons to highlight Enter. -
Page 27: Lock (Parental Control)
Lock (Parental Control) LOCK Rating Unlock Password Country Code Move DVD-V RATING Some movies contain scenes that may not be suitable for children to view. Many of these discs contain parental control information that applies to the complete disc or to certain scenes on the disc. Movies and scenes are rated from 1 to 8, depending on the country. -
Page 28: Others
Others The Auto Play, B.L.E. and DivX(R) VOD settings can be changed. OTHERS Auto Play B.L.E. DivX(R) VOD Select Move DVD-V AUTO PLAY You can set up the Home Theater System so a DVD disc automatically starts playing whenever the DVD is inserted. -
Page 29: Operation
VCR Operation Normal Playback Preparation: Turn on the TV. Tune the TV to the Combi Receiver output channel (CH 3 or 4) or set the TV’s source selector to VIDEO. If a direct VIDEO connection is made between the Combi Receiver and the TV, set the TV’s source selector to VIDEO. -
Page 30: Normal Recording
Normal Recording Preparation: Turn on the power of both the Home Theater System and Tune the TV to the Home Theater System output channel (CH 3 or 4) or set the TV’s source selector to VIDEO. If a direct VIDEO/AUDIO connection is made between the Home Theater System and the TV, set the TV’s source selector to VIDEO. -
Page 31: Timer Recording
10. Use V to choose the SPEED option. Use b/B to choose the desired recording speed (AUTO, SP or SLP). AUTO mode determines how much tape is left and switches speed from SP to SLP, if necessary, to complete recording the program. There will be some picture and sound distortion at the point of the speed change. -
Page 32: Instant Timer Recording
Instant Timer Recording Instant Timer Recording allows you to make a recording easily of a preset length without using the programmable timer. Preparation: Turn on the power of both the Home Theater System and the TV. Be sure the TV is tuned to the Home Theater System output channel (3 or 4). -
Page 33: Vhs Hi-Fi Stereo System/Mts Boadcast
VHS Hi-Fi Stereo System/ MTS Broadcast This Home Theater System is equipped with the VHS Hi-Fi audio sound system for recording and playback. The information below gives a brief description of Hi-Fi audio and how to record and play a tape in the Hi-Fi audio mode. -
Page 34: Tape Counter Memory Feature
Tape Counter Memory Feature Real-Time Counter Shows length of tape run in hours, minutes, and seconds. Press CLK/CNT to select the real-time counter display. Every press of CLK/CNT changes the TV screen display as illustrated below. 2:15 AM 0:05:25 CLOCK COUNTER Counter changes to “0:00:00”... -
Page 35: Dvd Operation
DVD Operation Playing a DVD PLAYBACK SETUP Turn on the TV and select the video input source connected to the Home Theater System. TO INSERT DISCS 1. Press OPEN SEL./CLOSE on the unit. “OPEN SEL” will appear in the display window. 2. -
Page 36: General Features
General Features Note: Unless stated otherwise, all operations described • use the remote control. Some features may also be available on the Setup menu. MOVING TO ANOTHER TITLE/GROUP DVD-V DVD-A When a disc has more than one title/group, you can move to another title/group. -
Page 37: Repeat
REPEAT DVD-V DVD-A DivX You can play a title/chapter/all/track/group on a disc. Press REPEAT during playback to select a desired repeat mode. DVD Video Discs - Repeat Chapter/Title/Off • Chapter: repeats the current chapter. • Title: repeats the current title. •... -
Page 38: Special Dvd Features
Special DVD Features CHECKING THE CONTENTS OF DVD DISCS: MENUS DVDs may offer menus that allow you to access special features. To use the disc menu, press DVD MENU. Input the corresponding number or use the b B v V buttons to highlight your selection. Then press MEMORY/ENTER. -
Page 39: Dvd Audio Discs
DVD Audio Discs DVD Audio is a new disc format building on the success of DVD to provide high quality, uncompressed, multi-channel audio for a new experience in audio quality. A DVD Audio disc can be identified by the DVD audio logo on the disc jacket or on the disc itself. -
Page 40: Playing An Audio Cd Or Mp3/Wma Disc
Playing an Audio CD or MP3/WMA Disc The Home Theater System can play MP3/WMA formatted recordings on CD-ROM, CD-R, or CD-RW discs. Audio CD Once you insert an audio CD a menu appears on the TV screen. Press v / V to select a track then press PLAY (2 2 ) or MEMORY/ENTER and playback starts. -
Page 41: Audio Cd And Mp3 / Wma Disc Features
Audio CD and MP3 / WMA Disc Features PAUSE 1. Press PAUSE/STEP(X) during playback. 2. To return to playback, press PLAY (2 2 ) , MEMORY/ENTER or press PAUSE/STEP(X) again. MOVING TO ANOTHER TRACK 1. Press PLAY (2 2 ) briefly during playback to go to the next track or to return to the beginning of the current track. -
Page 42: Programmed Playback
Programmed Playback The program function enables you to store your favorite tracks from any disc in the receiver memory. A program can contain 30 tracks. 1. Insert a disc. Audio CD or MP3/WMA Discs: AUDIO CD or MUSIC menu appears. 2. -
Page 43: Viewing A Jpeg Disc
Viewing a JPEG Disc Using this Home Theater System you can view discs with JPEG files. 1. Insert a disc and close the tray. The PHOTO menu appears on the TV screen. PHOTO List Preview JPEG Folder 1 JPEG Folder 2 JPEG Folder 3 JPEG Folder 4 JPEG Folder 5... -
Page 44: Playing A Dvd Vr Format Disc
Playing a DVD VR format Disc This unit will play DVD-R/RW discs recorded using the DVD-Video format that have been finalized using a DVD-recorder. • This unit will play DVD-RW discs recorded using the Video Recording (VR) format. 1. Insert a disc and close the tray. The DVD-VR menu appears on the TV screen. -
Page 45: Playing A Divx Movie Disc
Playing a DivX Movie Disc Using this Home Theater System you can play DivX disc. 1. Insert a disc and close the tray. The MOVIE menu appears on the TV screen. MOVIE 0:00:00 List Movie Folder 1 Movie Folder 2 Movie Folder 3 Movie Folder 4 Movie Folder 5... -
Page 46: 5.1 Speaker Setup
5.1 Speaker Setup This chapter includes important reference information to help you set your Home Theater System. Speaker Setup Make the following settings for the built-in 5.1 channel surround decoder. 1. Press SETUP. The setup menu appears. 2. Use v / V to select the AUDIO option then press B to move to the second level. -
Page 47: Additional Features
Additional Features SCREEN SAVER The screen saver appears when you leave the Home Theater System in Stop mode for about five minutes. If the Screen Saver is displayed for five minutes, the Home Theater System automatically turns itself off. VIDEO MODE SETTING The video mode setting only works when the Progressive Scan mode is set to “On”... -
Page 48: Dvd Operation
RADIO Operation Presetting the Radio Stations You can preset 50 stations for FM and AM. Before tuning, make sure that you have turned down the volume. 1. Press FM/AM on the remote control until the frequency band appears on the display and TV screen. -
Page 49: Tuning Stations Manually
Tuning Stations Manually 1. Press FM/AM on the remote control until the frequency band appears on the display and TV screen. 2. Use FM/AM on the remote control to select the desired band. 3. Use 4 TUNING 3 on the front panel or press 1 and 2 on the remote control to tune in the desired station. -
Page 50: Reference
Controlling other TVs with the Supplied Remote You can control the sound level, input source, and power switch of non-LG TVs as well. If your TV is listed in the table below, set the appropriate manufacturer code. 1. While holding down TV POWER button, press the number buttons to select the manufacturer code for your TV (Refer to table on the right column). -
Page 51: Language Codes
Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Abkhazian 6566 Fiji Afar 6565 Finnish Afrikaans 6570 French Albanian 8381 Frisian Ameharic 6577 Galician Arabic 6582 Georgian Armenian... -
Page 52: Troubleshooting
Troubleshooting Check the following guide for the possible cause of a problem before contacting service. Symptom No power. The power cord is disconnected. No disc is inserted. The power is on, but No tape is inserted. the Home Theater System does not work. The TV is not set to receive Combi No picture. - Page 53 Symptom Cause Some channels are Those channels were deleted with the skipped over when using CH. ADD/DEL option. TRK/PRESET (v/V) Picture and sound of Antenna or cables are loose. broadcasting channel are weak or missing. Wrong TUNING BAND option is being used.
-
Page 54: Specifications
Specifications General Power requirements Power consumption Dimensions (approx.) Weight (approx.) Operating temperature Operating humidity Signal system Inputs ANTENNA IN VHS VIDEO IN(LINE1, 2) VHS AUDIO IN(LINE1, 2) Outputs MONITOR OUT S-VIDEO OUT Component Video output VCR Specifications Head system Timer Tape speed Tape width Maximum recording time... - Page 55 LH-EC950SB NA1ULLS Amplifier Stereo mode 180W + 180W (4Ω at 1 kHz, THD 10 %) Surround mode Front: 180W + 180W (THD 10 %) (* Depending on the sound mode Center*: 180W settings and the source, there Surround*: 180W + 180W (4Ω at 1 kHz, THD 10 %) may be no sound output.) Subwoofer*: 300W (3Ω...
- Page 56 This LG Electronics product, marketed by Zenith, will be repaired or replaced, at LG’s option, if it proves to be defective in material or workmanship, under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date (“Date of Purchase”) of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the United States, excluding U.S.
