Summary of Contents for Rega TTPSU

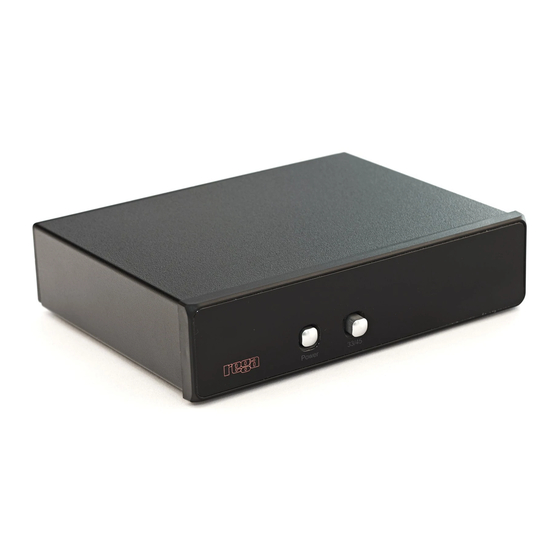

- Page 1 TTPSU T urntable power supply unit...
- Page 2 FRONT PANEL CONTROLS Power switch Rega logo / 45RPM ‘speed indicator’ Speed change REAR PANEL CONNECTIONS Connect to Rega PS1 24V Turntable power connection transformer to be connected to turntable.
- Page 3 TTPSU. Switch the mains power on. Push the power button on the front panel to turn the TTPSU on - When the power supply is switched on, the Rega logo will illuminate RED, This indicates that 33 rpm is selected.
- Page 4 The TTPSU has been designed to be easy to use, and above all to reproduce music. There are two different versions of the TTPSU (Turntable Power Supply Unit): TTPSU STANDARD - Used as an upgrade for 50Hz P3-24 classic, P5, and RP3 models, supplied as standard with all RP6 turntables.
- Page 5 INTRODUCTION The TTPSU and motor anti-vibration circuit is a combination of the long established P9 power supply along with an improved RP6 anti-vibration motor drive feeding a 24V AC synchronous motor. The TTPSU uses a remote "wall wart" transformer therefore keeping the sources of hum &...
- Page 6 If in the rare circumstance these are activated, they are reset by turning off the TTPSU by the front panel for approximately 10 seconds. If the fault should persist consult your dealer.
- Page 7 TTPSU off. (see Setup - getting started section for information on the RP3 TTPSU Special). To switch off at any time, simply press the power switch on the front of the TTPSU. To minimise the risk of hum pick up by the cartridge, the power supply should be situated...
- Page 8 Rega Research Ltd, exceptional Hi-Fi designed and made in ENGLAND.
