Sailor 6215 Installation Manual

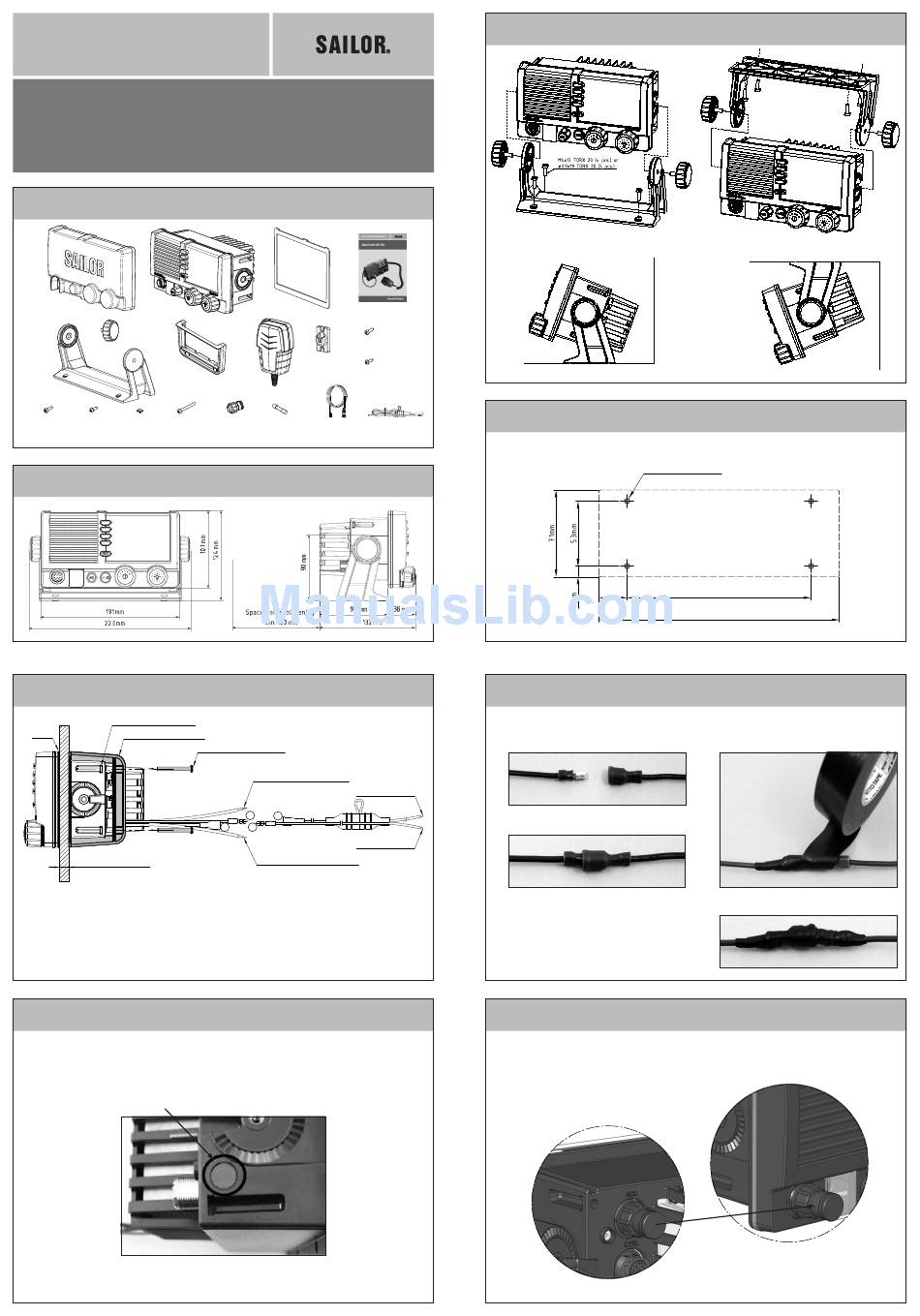

INSTALLATION GUIDE
SAILOR 6215/6216 VHF DSC
What's in the box?
Sun Screen Transceiver
Wheel Knob
(2 pcs.)
U-Mounting
Bracket
Flush Mount
Bracket (2 pcs.)
Screw M4x12 Screw ø3.9x19 Square Nut Screw M4x45
TORX 20 TORX 20 M4x7x2.2 TORX 20
(5 pcs.) (5 pcs.) (5 pcs.) (5 pcs.)

Dimensions for the VHF

How to install the VHF flush mount

Square Nut M4x7x2.2 (4 pcs.)
Gasket Flush Mount Bracket (2 pcs.)
Max wall thickness 26mm
99-130248
Note!
- Firmly tie back and secure any wires not used in order to
avoid possibility for mutual shorting or shorting to ground!
- To ensure waterproof sealing:
If the surface isn't plane and/or rigid remove the gasket and
seal with silicone sealant between the VHF and the surface.
Very important information!
Do not remove the membrane.
If you remove the membrane the radio will not be waterproof.
Membrane
Gasket
User & Installation Manual
Screw M4x12
TORX 20 (3 pcs.)
Cradle
Screw ø3.9x19
TORX 20 (3 pcs.)
Hand Microphone
Cap for LTW BD/BU Fuse
Connection Cable,
Connector 6.3x3.2mm (10AT)
1 m
(2 pcs.)
Screw M4x45 TORX 20 (4 pcs.)
Connect to LOUD HAILER
(RED isolation on inner connector)
Connect to POWER +
A
A
B B
Connect to POWER -
Connect to EXT. SPEAKER
(WHITE isolation on inner connector)

How to install the VHF on desktop and overhead

Drilling plan on desktop and overhead

Power Cable
99-130249

Cable assembly for waterproof installation

Connect the 4 cable connections with rubber vulcanizing tape as shown .....
1.
(RED wire)
2.
(BLUE wire)

How to prevent water ingress

Connector for Hand Microphone or Handset - If not used, put the cap
from the ACC connector on the front connector to prevent water ingress.
Tilting ±20°
4 x M4 or hole for
self-tapping ø3.9
23mm 150mm
196mm
3.
4.
