AvaLAN AW5802mTR-EVAL User Manual

5.8 ghz wireless ethernet module evaluation kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

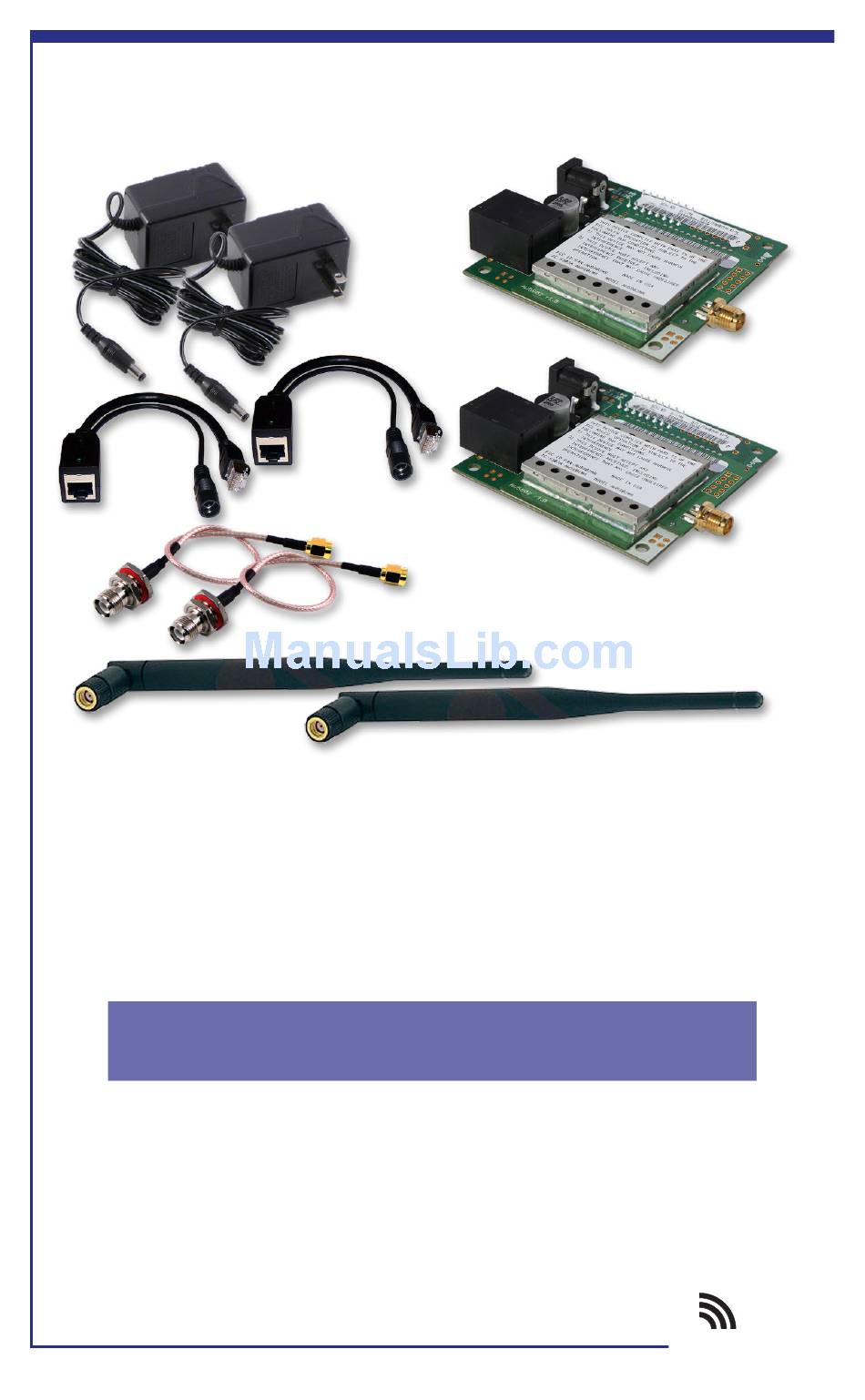

AW5802mTR-EVAL
User's ManUal
5.8 GHz Wireless Ethernet Module
Evaluation Kit
AvaLAN
Industrial-grade, long-range wireless Ethernet systems
W
I
R
E
L
E
S
S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW5802mTR-EVAL and is the answer not in the manual?

Questions and answers

Related Manuals for AvaLAN AW5802mTR-EVAL

Summary of Contents for AvaLAN AW5802mTR-EVAL

  • Page 1 AW5802mTR-EVAL User’s ManUal 5.8 GHz Wireless Ethernet Module Evaluation Kit AvaLAN Industrial-grade, long-range wireless Ethernet systems...

  • Page 2: Limited Warranty

    This product is warranted to the original purchaser for normal use for a period of 360 days from the date of purchase. If a defect covered under this warranty occurs, AvaLAN will repair or replace the defective part, at its option, at no cost. This warranty does not cover defects resulting from misuse or modification of the product.

  • Page 3: Operational Summary

    User’s Manual AW5802mTR Operational summary The AW5802mTR Radio Module allows the user to create a long-range, wireless Ethernet network with up to 16 subscriber units per access point. Configuring a wireless link with the AW5802mTR requires the establishment of six elements: •...

  • Page 4: Evaluation Kit Contents

    • AW-POE Power Over Ethernet Injectors • AW-12VPS 12 Volt Power Supplies Additional quantities of any of these components may be purchased from AvaLAN Wireless or our distributors. To power up a radio module, connect the antenna via the pigtail cable provided.

  • Page 5: Physical Dimensions

    User’s Manual AW5802mTR Physical Dimensions Power: 5-48 VDC Ethernet: 10/100T Power: 9-48 VDC Mounting Holes 23 mm 66 mm 70 mm Antenna: Reverse polarity Mounting Holes 5.8 GHz Channels Channel Center Frequency Channel Center Frequency Channel Center Frequency Channel Center Frequency Auto Mode 5728.125 MHz 5758.845 MHz...
  • Page 6 2. Download the AvaLAN IP Discovery Utility from our website and extract ipfinder.exe from the zip archive, placing it on your desktop or in a convenient folder.
  • Page 7 User’s Manual AW5802mTR 5. Make note of the chosen IP address and password, then click “Go to Device Web Page.” This will cause your default web browser to launch with the device IP address in the browser address bar. Or you may launch the browser on your own and enter the web page address manually: http://[the IP address you just set].
  • Page 8 AW5802mTR User’s Manual Despite the warning, you will need to click the “Advanced Admin” button in order to set the device type, ID and encryption key. You should then see a page similar to this: 8. On the Advanced Admin page, set the parameters as follows: •...
  • Page 9 User’s Manual AW5802mTR LED and Switch Behavior Reset Switch: Press momentarily for soft reset of processor. Hold for LEDs 10 seconds to reset module to factory defaults. DIP Switches CH16 CH32 LINK QUALITY Function Color Unit has power and has successfully booted Green Radio reception is occuring Green...

  • Page 10: Initial Setup

    AW5802mTR User’s Manual “Easy Key” Configuration In most cases, the browser interface is a better choice for configuring the modules. But they also can be configured as a point-to-point bridge or a point-to-multipoint group using the DIP switches. When this method is used, the module that will oper- ate as the access point provides a unique network ID calculated from its MAC ad- dress and a unique random encryption key programmed into it during manufacture.

  • Page 11: Technical Specifications

    User’s Manual AW5802mTR To add a new SU to the AP , disconnect the AP from the network and power off. Connect an Ethernet cable between the SU and AP . Power up the SU FIRST and then the AP . The SU will receive the key. Disconnect the Ethernet cable and cycle power on the SU to cause the new keys to take effect.

  • Page 12: Agency Certifications

    User’s Manual Agency Certifications Warning: Changes or modifications to this device not expressly approved by AvaLAN Wireless could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 13 User’s Manual AW5802mTR Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio ex- empts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélec- trique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
