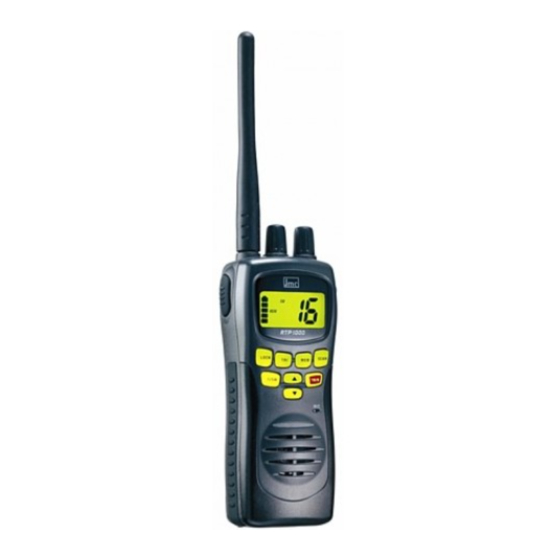

- Page 1 UMS–RTP1000 First Edition October 2005 Summary Operating Manual RTP1000 Model Two-way VHF Marine Radio www.japan-marina.co.jp sales@japan-marina.co.jp...
-
Page 3: Table Of Contents
Contents Controls and Indicators..............2 LCD display..................3 Warning! ....................4 Ni-MH Battery Pack Warning ............4 Introduction ..................5 Features ................... 5 Technical Support and Service ............6 Included in Your Package ..............7 Getting Started ................... 8 Mounting the Cradle ................. 8 Attaching the Antenna .............. -
Page 4: Controls And Indicators
Controls and Indicators LOCK SCAN 16/9 1/5W Antenna Belt Clip Adapter Jack Battery Battery Release Clip PTT (Push to Talk) Key Triple Watch Button (TRI) Lock Button (LOCK) TX Power Button (1/5W) Microphone Speaker MIC (Optional) Jack Volume/Power Knob (VOL) Squelch Knob (SQ) LCD Display Memory Button (MEM) -
Page 5: Lcd Display
LCD Display Transmit Indicator TX Power Indicator Channel Number Display Memory Indicator Scan Indicator Battery Indicator G Triple Watch Indicator Key Lock Indicator... -
Page 6: Warning
Warning! • The RTP1000 is waterproof only when the antenna, rubber caps (adapter jack and speaker mic jack) and the battery are properly attached. • Do not operate the transmitter of any radio equipment unless all the Radio Frequency (RF) connectors are secure and any open connectors are properly terminated. -
Page 7: Introduction
This handheld VHF marine radio will give you consistent, outstanding performance in virtually all conditions and situations. To ensure that you get the most from the RTP1000’s features, please read this operating guide carefully before using the unit. Features •... -
Page 8: Technical Support And Service
Be sure that a qualified technician services your radio equipment. Caution: Changes or modifications to this product not expressly approved by JMC, or operation of this product in any way other than as detailed by this Operating Guide, can void your... -
Page 9: Included In Your Package
Included in Your Package AC Adapter Antenna RTP1000 Cradle Rechargeable Battery DC Adapter Beltclip Carring Strap Mounting Screws 6AA Alkaline Battery Case Reference Guide/ Printed Material (attached to the RTP1000) -
Page 10: Getting Started
Getting Started Mounting the Cradle Mount the Cradle to either a counter or wall. To counter: Attach the Cradle using the mounting screws and washers as follows. To wall: Apply the Cradle to the wall and insert the two mounting screws into the larger holes of the Cradle Push down the Cradle until it is firmly seated. -
Page 11: Using The Alkaline Battery Case
Using the Alkaline Battery Case When needed, you can use the battery case with AA Alkaline batteries (not included) instead of the rechargeable battery pack. To install the batteries: Remove the battery case cover by pulling the 2 halves apart applying your fingers to the projections. -
Page 12: Charging The Battery Pack
Charging the Battery Pack Your marine radio is powered by a specially designed Ni-MH battery pack. • Before operating the RTP1000, charge the Ni-MH battery pack for 16 hours without interruption with the Adapter. Place the RTP1000 in the Cradle. -
Page 13: Operation
Operation • See “Controls and Indicators” (page 2) for button, knob, and key positions. • When you turn On your RTP1000 just after purchasing, it is auto- matically tuned to channel 16 frequency for distress, safety, and calling. • When you press any button (except PTT and LOCK key), a short tone sounds. -
Page 14: Selecting A Channel
Selecting a Channel Turn On your RTP1000. [ UP ] To select a higher channel, press the ▲ button. To select a lower channel, [ DOWN ] press the ▼ button. • To change the channel continuously, press and hold the ▲ or ▼ button for more than 1 second. -
Page 15: Triple Watch
Triple Watch Triple Watch mode monitors channels 16 and 9 for a signal while you listen to the currently selected channel. The marine radio checks channel 16 and 9 for activity every 2 seconds. To select Triple Watch mode, press the TRI button. -
Page 16: Programming A Channel Into Memory
Programming a Channel into Memory Before using the scanning feature, you have to program channels into memory. Select the channel to enter into memory by pressing the ▲ or ▼ button. Press the MEM button for two seconds to store the channel. MEM appears on the display. -
Page 17: Deleting A Channel From Memory
Deleting a Channel from Memory Select the channel to delete from memory by pressing the ▲ or ▼ button. Press the MEM button for two secons. MEM disappears from the display. Scanning To begin scanning the programmed channels, press the SCAN button. SCAN and TRIPLE appear on the display. -
Page 18: Transmitting
Transmitting Transmission power can be set to either 5W or 1W. Press the 1/5W button to make the change, then the 5W or the 1W indicator on the display changes accordingly. To transmit, press and hold the PTT (push-to-talk) key. TX appears on the display. -
Page 19: Battery Indicator
Battery Indicator When the unit is On, battery power is always indicated on the display. When the battery is fully charged, the battery indicator appears as follows: When the battery is nearly discharged, the battery indicator appears as follows: • When the battery indicator drops to the blinking 1-mark level on the display, the radio will receive but will not transmit. -
Page 20: Marine Channels - International
Marine Channels - International Channel Frequency (MHz) Ship to Ship to Permanent Traffic Type Desig Transmit Receive Ship Shore Scan List 156.050 160.650 Duplex 156.100 160.700 Duplex 156.150 160.750 Duplex 156.200 160.800 Duplex 156.250 160.850 Duplex 156.300 156.300 156.350 160.950 Duplex 156.400 156.400 156.450 156.450... - Page 21 Channel Frequency (MHz) Ship to Ship to Permanent Traffic Type Desig Transmit Receive Ship Shore Scan List 156.275 160.875 Duplex 156.325 160.925 Duplex 156.375 156.375 156.425 156.425 156.475 156.475 RX Only 156.525 156.575 156.575 156.625 156.625 156.675 156.675 156.725 156.725 156.775 156.775 156.825 156.825 156.875 156.875...
-
Page 22: Optional Parts And Replacement Accessories
Optional Parts and Replacement Accessories AC Adapter Mounting Screws Antenna Carring Strap DC Adapter Ni-MH Battery Cradle Reference Guide Beltclip Alkaline Battery Case... -
Page 23: Specifications
Specifications General Freq. Control Freq. Tol. Transmit 1.5 PPM (at 25°C) Receive 1.5 PPM (at 25°C) Oper. Temp. –15°C to +55°C Antenna Flexible Whip Microphone Built-in Electret type Display Liquid Crystal Display Speaker 8Ω 1 Watt Power Source Rechargeable Ni-MH Battery Pack 7.2V 1350 mAh Size (without antenna) 5.8 (H) x 2.7 (W) x 1.68 (D) inch... -
Page 24: Troubleshooting
Troubleshooting Not enough range Cause: Line of sight blocked ⇒ Increase antenna height. Will not transmit on 5 watt range but will transmit on the 1 watt range. Cause: Low voltage ⇒ Recharge or replace the batteries. Will not transmit while charging. Cause: Low voltage ⇒... -
Page 25: Declaration Of Conformity
Memo:... - Page 26 Memo:...
- Page 27 Memo:...
- Page 28 UTZZ01606CZ(0)
