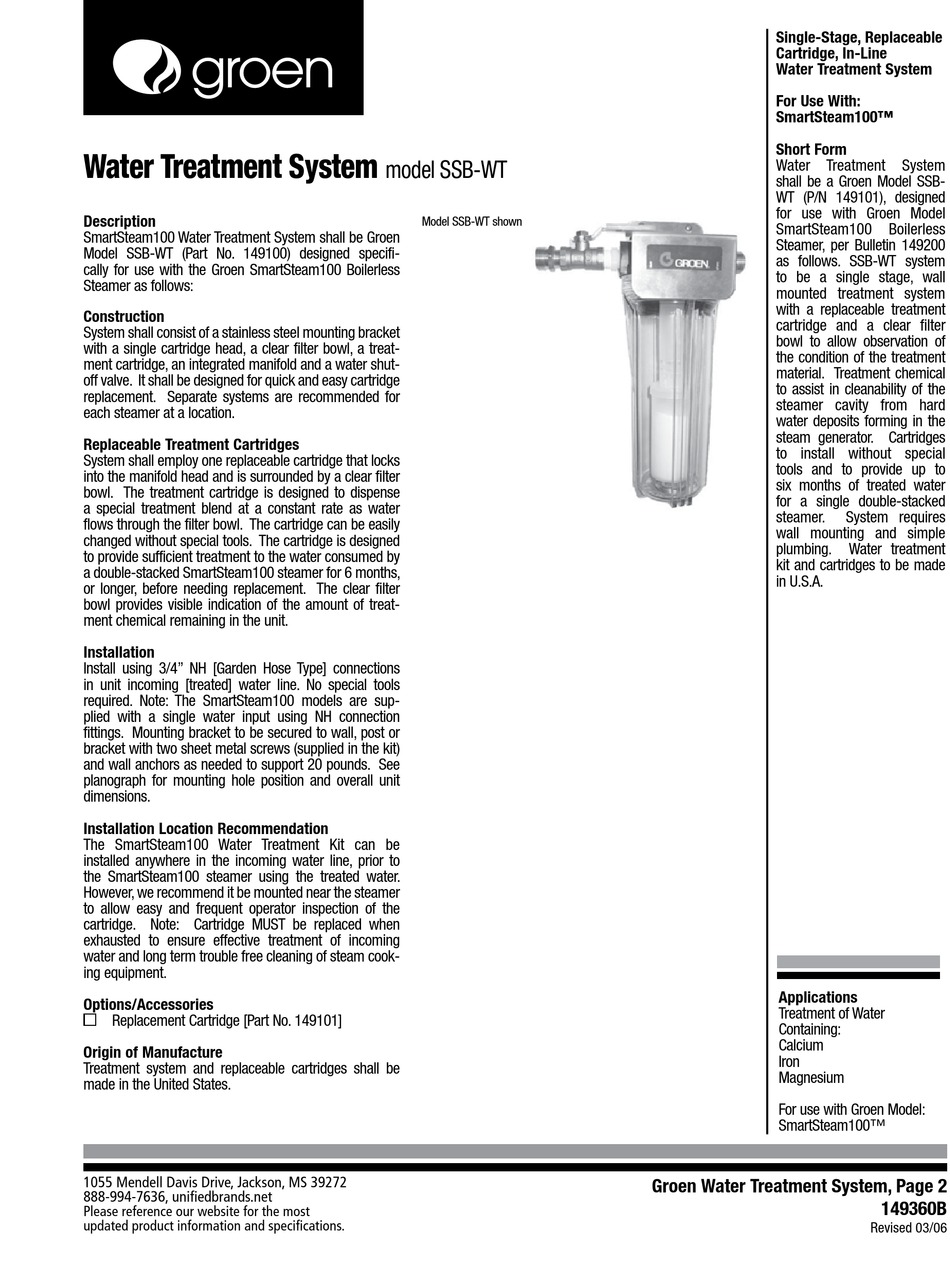

Groen SSB-WT Manual

Water Treatment System
Description
SmartSteam100 Water Treatment System shall be Groen
Model SSB-WT (Part No. 149100) designed specifi-
cally for use with the Groen SmartSteam100 Boilerless
Steamer as follows:
Construction
System shall consist of a stainless steel mounting bracket
with a single cartridge head, a clear filter bowl, a treat-
ment cartridge, an integrated manifold and a water shut-
off valve. It shall be designed for quick and easy cartridge
replacement. Separate systems are recommended for
each steamer at a location.
Replaceable Treatment Cartridges
System shall employ one replaceable cartridge that locks
into the manifold head and is surrounded by a clear filter
bowl. The treatment cartridge is designed to dispense
a special treatment blend at a constant rate as water
flows through the filter bowl. The cartridge can be easily
changed without special tools. The cartridge is designed
to provide sufficient treatment to the water consumed by
a double-stacked SmartSteam100 steamer for 6 months,
or longer, before needing replacement. The clear filter
bowl provides visible indication of the amount of treat-
ment chemical remaining in the unit.
Installation
Install using 3/4" NH [Garden Hose Type] connections
in unit incoming [treated] water line. No special tools
required. Note: The SmartSteam100 models are sup-
plied with a single water input using NH connection
fittings. Mounting bracket to be secured to wall, post or
bracket with two sheet metal screws (supplied in the kit)
and wall anchors as needed to support 20 pounds. See
planograph for mounting hole position and overall unit
dimensions.
Installation Location Recommendation
The SmartSteam100 Water Treatment Kit can be
installed anywhere in the incoming water line, prior to
the SmartSteam100 steamer using the treated water.
However, we recommend it be mounted near the steamer
to allow easy and frequent operator inspection of the
cartridge. Note: Cartridge MUST be replaced when
exhausted to ensure effective treatment of incoming
water and long term trouble free cleaning of steam cook-
ing equipment.
Options/Accessories
Replacement Cartridge [Part No. 149101]
Origin of Manufacture
Treatment system and replaceable cartridges shall be
made in the United States.
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, unifiedbrands.net
Please reference our website for the most
updated product information and specifications.
SSB-WT
Water Treatment System
model SSB-WT
Model SSB-WT shown
Description
SmartSteam Water Treatment System shall be a Groen
Model SSB-WT [Part No. 149100]
designed specifically for use with the Groen
SmartSteam™ Boilerless Steamer as follows:
Treatment System Construction
System shall consist of a stainless steel mounting
bracket with a single cartridge head, a clear filter
bowl, a treatment cartridge, an integrated manifold
and a water shutoff valve. It shall be designed for
quick and easy cartridge replacement. Separate
systems are recommended for each steamer at a
location.
Replaceable Treatment Cartridges
System shall employ one replaceable treatment
cartridge that locks into the manifold head and is
surrounded by a clear filter bowl. The treatment
cartridge is designed to dispense a special treatment
blend at a constant rate as water flows through
the filter bowl. The cartridge can be easily changed
without special tools. The cartridge is designed to
provide sufficient treatment to the water consumed
by a double-stacked SmartSteam™ steamer for 6
Single-Stage, Replaceable
Cartridge, In-Line
Water Treatment System
For Use With:
SmartSteam100™
Short Form
Water Treatment System
shall be a Groen Model SSB-
WT (P/N 149101), designed
for use with Groen Model
SmartSteam100 Boilerless
Steamer, per Bulletin 149200
as follows. SSB-WT system
to be a single stage, wall
mounted treatment system
with a replaceable treatment
cartridge and a clear filter
bowl to allow observation of
the condition of the treatment
material. Treatment chemical
to assist in cleanability of the
steamer cavity from hard
water deposits forming in the
steam generator. Cartridges
months, or longer, before needing replace
to install without special
clear filter bowl provides visible indicati
tools and to provide up to
amount of treatment chemical remaining i
six months of treated water
for a single double-stacked
Installation
steamer.
Install using 3/4" NH [Garden Hose Type] co
wall mounting and simple
in unit incoming [treated] water line. No sp
plumbing.
required. [Note: The SmartSteam models ar
kit and cartridges to be made with a single water input using NH c
fittings. Mounting bracket to be secured to
in U.S.A.
or bracket with two sheet metal screws (s
the kit) and wall anchors as needed to s
pounds. See planograph for mounting ho
and overall unit dimensions.
Installation Location Recommen
The SmartSteam Water Treatment Kit
installed anywhere in the incoming w
prior to the SmartSteam steamer using t
water. However, we recommend it be mou
the steamer to allow easy and frequen
inspection of the cartridge. [Note: Cartrid
be replaced when exhausted, to ensure
treatment of incoming water and long te
free cleaning of steam cooking equipment.
Options/Accessories
r Replacement Cartridge [Part No. 1491
Origin of Manufacture
Treatment system and replaceable cartridg
made in the United States of America
1055 Mendell Davis Drive
Jackson, MS 39272
difoodservice.com
Applications
Treatment of Water
Containing:
Calcium
Iron
Magnesium
For use with Groen Model:
SmartSteam100™
Groen Water Treatment System, Page 2
System requires
Water treatment
Telephone (60
Toll Free (800)
FAX (601) 373
info@groen.co
149360B
Revised 03/06
