Discrete indoor IP Camera D1
•
4 306 31

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4 306 31 and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND 4 306 31

Summary of Contents for LEGRAND 4 306 31

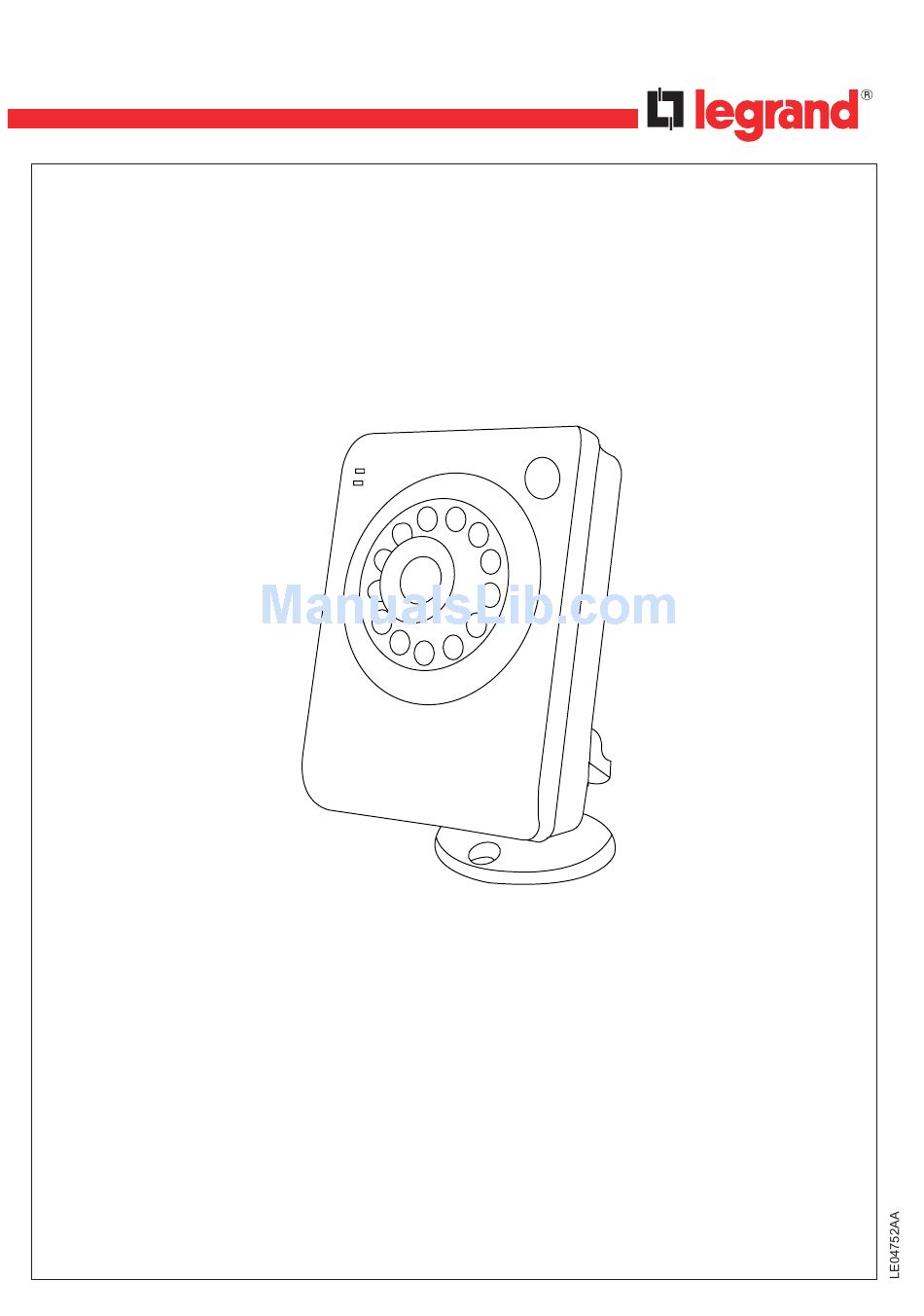

  • Page 1: User Manual

    Discrete indoor IP Camera D1 • 4 306 31 USER MANUAL...

  • Page 2: Table Of Contents

    Indice Accessories .................... 4 General Introduction ................5 2.1 Overview ........................5 2.2 Features ........................5 2.3 Specifications ......................6 Framework ....................13 3.1 Front panel ........................ 13 3.2 Side panel ......................... 14 3.3 Bottom panel ......................15 Installation .................... 16 Quick Configuration Tool ..............
  • Page 3 Search ....................62 Alarm ....................64 About ....................65 Log out ....................66 Annex 1: No-IP DDNS ......................67 Annex 2: Using Google Chrome ..................73 Annex 3: Using Firefox ...................... 75 Annex 4: Using IE8 ......................77 Annex 5: Email Function ....................

  • Page 4: Accessories

    1 Accessories Name IP Camera 5V power adapter Universal holder Quick Start Guide...

  • Page 5: General Introduction

    2 General Introduction 2.1 Overview This device integrates traditional camera and network video technology. It adopts audio video data collection, transmission and storage. It can connect to the network directly without any auxiliary device. This device uses standard H.264 video compression technology which maximally guarantees the video quality. It can be used alone or used in a network area.

  • Page 6: Specifications

    2.3 Specifications 2.3.1 Performances Model 4 306 31 Parameter Sensor Type 1/4-inch CMOS Pixel PAL: 640 (H) x 480 (V) IR distance 7-10 m Video format Shutter 1/50 - 1/10000s Min. Illumination Color 0.1Lux/F1.2 B/W 0.01Lux/F1.2 (IR mode 0Lux) Auto Iris >...
  • Page 7 2.3.2 Function specification Specification Note CCD Video Mirror Support left-right video switch. Flip Support video upside down flip function. Process Scene Mode Support scene mode setup. Resolution VGA, QVGA, CIF , QCIF , QQVGA Video Compression S Standard H.264 compression format Video Take 18*22 pix as a macro unit.
  • Page 8 Specification Note IPC provides user interface, device information, video information, COM setup, record setup, motion detection setup, alarm setup, OSD information interfaces to Parameter Configura- modify system setup. tion IPC provides running information such as user port, log, status, user management, email setup, date modification.
  • Page 9 2.3.3 Factory Default Setup Function configuration type Item Name Default setup Date format DD MM YYYY Enable Date separator ‘ / ‘ Time format General Setup Language English When HDD is full Overwrite Record duration 8 min Device No. Video type Main stream Channel Channel01...
  • Page 10 Function configuration type Item Name Default setup Time Setup Snapshot All Period : Enable motion detec- tion/alarm Shedule setup Week All week Option COM01 Function Console Data bit COM Setup Stop bit Baud rate 115200 Parity None Ethernet Port 01 DHCP Enable IP address...
  • Page 11 Function configuration type Item Name Default setup Event type Motion detection Channel Ch01, Enable Sensitivity Time period setup Period: Start time 0: 00:00 End time: 23:59:59 All period: enable Week: All weeks Video detection Anti-dither 0 second Record channel 1, enable Record latch 10 seconds Send email...
  • Page 12 Function configuration type Item Name Default setup Channel Exposure Mode Auto Night Vision Auto Camera config Backlight Compensation Signal Type Mirror Disable Flip Disable Auto Registration 0.0.0.0 Port 7000 202.101.172.35 DNS Setup Alternative DNS 202.101.172.35...

  • Page 13: Framework

    3 Framework 3.1 Front Panel Port Port Name Function Power indication light. When system is recording, the green light flashes. The interval is 0.5s. When system is running: POWER The red light becomes on when system boots up. When system is running properly, the green light becomes on. Port 1 When system is upgrading, the red light flashes.

  • Page 14: Side Panel

    3.2 Side Panel Refer to the following figure for side panel information. Port Name Function Micro SD card port. You can insert the SD card. Please format SD card port the SD card via the WEB if it is your first time to use it. USB port USB Port.

  • Page 15: Bottom Panel

    3.3 Bottom Panel Refer to the following figure for Bottom panel information. Port Name Function I/O Port I/O port, connect to MD9M data converter cable 10M/100M self-adaptive Ethernet port. Connect to the network cable. DC 5V Power input port. Input DC 5V.

  • Page 16: Installation

    4 Installation 1- Place the gasket in the universal holder 2- Place the end of the holder to the screw hole in the real panel of the device. 3- Turn the universal holder clockwise to fix the device firmly. 4- Dig three holes in the wall (or in the ceiling) in accordance with the holes of the universal holder.
  • Page 17 5- Insert the three screws of the universal holder to the holes you just dug, and then fix the screws firmly. 6 - Turn the knob to adjust the IP camera to the suitable angle.

  • Page 18: Quick Configuration Tool

    5 Quick Configuration Tool The quick configuration tool allows you to search for a device's IP address, even if it is in another segment (cameras, DVR, NVR, encoders and decoders) and to modify it. The configuration tool is available on the CD supplied with the product.
  • Page 19 To connect to a device and open the web application: - Highlight it (single click in the list). - Right click the highlighted line.   - Click on "Open Device Web". - The following web page opens:   If the connection fails: - either the camera does not have an IP address in the same segment as the PC (see chapter 5.1.2 to change it), - or the Internet Explorer security parameters are not set correctly (see chapter 6 to change them).
  • Page 20 5. 1.2 Connection with the configuration tool (to change the IP address or upgrade a device’s internal software) To search for devices connected to the network: - Click the «Refresh» button; the tool will search for devices connected to the network and display them in the form of a list (see chapter 5.1.1 for details of the interface).
  • Page 21 - Restart the procedure. The following window should open:   - Click Login to access the parameter modifications.     Function Note Enable DHCP Enable or disable the DHCP function IP address Device IP address Subnet mask Device subnet mask Gateway Device default gateway MAC address...
  • Page 22 5.1.2 PPPoE Select "PPPoE" on the right-hand side of the interface:   Function Note Enable PPPOE Enable or disable the PPPoE function User name PPPOE user name Password PPPOE password IP address Device IP address in the WAN Save Save Return Return to the search interface - Click the "System Information"...
  • Page 23 5.1.3 System Select "System Information" on the right-hand side of the interface.   Function Note Device serial number Software version Device software version Device name Model name Synchronization Synchronisation of the device date and time with the date and time on the PC. with PC Click "Sync"...
  • Page 24 5.1.4 System Upgrade Select "System Upgrade" on the right-hand side of the interface.   Function Note Upgrade file/Open Click here to select the upgrade file. Current progress/Upgrade Click here to start the upgrade procedure. Return Return to search interface Steps for updating the device's internal software - Click on the "Open"...
  • Page 25 - Once the file has been transferred, the device upgrades automatically.   - Once the device has been upgraded, the following dialogue box opens:   - Click OK to finish the procedure.

  • Page 26: Connecting To A Device And Opening The Web Application

    6 Connecting to a Device and Opening the Web Application 6.1 PC Configuration This device supports Web access and management via PC. Web includes several modules including monitor channel list, record search, alarm setup, system configuration, PTZ control, monitor window, etc. The system pops up warning information to ask whether you wish to install the control webrec.cab or not.

  • Page 27: Connection With The Search Tool

    6.2 Connection with the Search Tool To open the software, double click the "ConfigTool.exe" icon on the CD supplied with the product. To search for devices connected to the network: - Click the "Refresh" button; the tool will search for devices connected to the network and display them in the form of a list.

  • Page 28: Connection With Internet Explorer

    6.3 Connection with Internet Explorer IP camera factory default setup: - IP address: 192.168.1.108. - User name: admin - Password: admin Open Internet Explorer (IE) and enter your camera IP address in the address bar. For example, if your camera IP is 192.168.1.108, then enter http://192.168.1.108 in the IE address bar. Input your IP address here Note:...
  • Page 29 After you log in, the main window appears: Note: Use IE compatibility mode if you are using IE8 or above. See the detailed user guide for the Web interface.

  • Page 30: Main Interface Introduction

    7 Main Interface Introduction 7.1 Log in Input user name and password (default is admin/admin). After you logged in, IP Camera web main interface appears: There are six sections: - Section 1: Monitor channel menu tree. - Section 2: System menu. - Section 3: PTZ control.

  • Page 31: Monitor Channel Menu Tree

    7.2 Monitor Channel Menu Tree The monitor channel menu tree is shown below. Refer to the following sheet for detailed information. Parameter Function CAM 1 Monitor channel 1 IP Camera supports main stream and extra stream. - Main stream: In normal network width environment, main stream can record video and audio and realize network monitor.

  • Page 32: System Menu

    Refer to the following sheet for monitor window parameter information. Parameter Function Display - 1: Device IP address. device - 2: Channel number. information - 3: Bit stream. - 4: Stream decode type. - S1: Overlay. - S2: Off stream. - S3:GD1 - H1: Overlay - H2: off stream decoding from the display card.

  • Page 33: Monitor Window Switch

    7.4 Monitor Window Switch The device support only 1-window and full-screen display mode. Video quality adjustment button. Displays the original image size in the webpage. 7.5 Preview Window Switch The device do not support this function. 7.6 PTZ Control The device do not support PTZ control function. 7.7 Color and More Setup Color setup Refer to the following sheet for detailed information.
  • Page 34 More Setup Refer to the following sheet for detailed information. Parameter Function More Picture System pops up an interface to modify path. Path Record System pops up an interface to modify path. Path Reboot System pops up a dialogue box, click OK button to reboot device.

  • Page 35: Configure

    8 Configure See chapter 7.3 to see how to access to the configuration menu». 8.1 System Information 8.1.1 Version Information View device hardware feature and software version information. 8.1.2 HDD information View local storage status and network status including free capacity and total capacity.
  • Page 36 8.1.3 Log View system log. Refer to the following sheet for log parameter information. Parameter Function Type Log types include: system operation, configuration operation, data management, alarm event, record operation, user management, log clear and file operation. Search Select log type from the drop down list and then click search button to view the list.

  • Page 37: System Configuration

    8.2 System Configuration Please click save button to save your setup before exiting each section. 8.2.1 General Setup Set system time, record length, video format, etc.
  • Page 38 Refer to the following sheet for detailed information. Parameter Function System Time Modify system time. Click “Save” button after your completed modification Sync PC Click this button to save the system time as your PC current time Data Format Select data format from the dropdown list. Data Separator Select separator such as –...
  • Page 39 Refer to the following sheet for detailed information. Parameter Function Channel Select a monitor channel. Channel Name Display current channel name. You can modify it . Compression H.264 Main Stream It includes general stream, motion stream and alarm stream. Select different encode frame rates form different recorded events. For example, use high frame rate to record important events, record scheduled event in lower frame rate and set different frame rates for motion detection record and alarm record.
  • Page 40 Click watermark button to open interface as below: 8.2.3 Schedule Set differents periods for various days. There are max six periods in one day.
  • Page 41 Refer to the following sheet for detailed information. Parameter Function Channel Select a channel first. Pre-record Input pre-record value here. System can record the three to five seconds video before activating the record operation into the file. (Depends on data size).
  • Page 42 Refer to the following sheet for detailed information Parameter Function RS232 There is only one option COM 01, corresponding to RS232 Function Console is for debug. Control keyboard: Switch between RS232 and control keyboard. Network keyboard: COM control protocol. You can use network keyboard to control IPC via COM.
  • Page 43 Refer to the following sheet for detailed information Parameter Function Ethernet Select the network card first. Port 1 is the ethernet port. Port 2 is the wireless port (if available). DHCP Dynamically get IP address. Get the device IP adress from the server if this function is enabled.
  • Page 44 Email Interface Please refer to the following sheet for detailed information. Parameter Function SMTP Server Input server address and then enable this function. Port Default value is 25. Modify it if necessary. User Name Sender email account user name. Password Sender email account password.
  • Page 45 DDNS interface Refer to the Annex 1 for NO-IP DDNS setup information. Refer to the following sheet for detailed information. Parameter Function Server Type Select DDNS protocol from the dropdown list and then enable DDNS func- tion. The private DDNS protocol means you use your self-defined private protocol to realize DDNS function.
  • Page 46 NTP interface Realize network time synchronization. Enable current function and input server IP , port number, time zone and time. Refer to the following sheet for detail information. Parameter Function Enable Enable NTP function or not. Server IP Server IP address Port Server port.
  • Page 47 IP Filter interface Enable IP filter function so that some specified IP user can or not access the device. You can not set white list and black list function at the same time.
  • Page 48 8.2.6 Alarm...
  • Page 49 Parameter Function Event Type It includes local alarm/network alarm. - Local alarm: Device detects alarm from input port. - Network: Device detects alarm from network. Alarm in Select corresponding alarm channel. Enable Check to enable the alarm function. Type There are two options: normal open and normal close. NO becomes activated in low voltage, NC becomes activated in high voltage..
  • Page 50 8.2.7 Detect The dark blue squares correspond to a zone with active detection.
  • Page 51 Refer to the following sheet for detailed information. Parameter Function Event Type There are three types: Motion detection/Video loss/Camera Masking. Channel Select channel name from the dropdown list. Enable Check to enable motion detection function. Sensitivity There are six levels. The level 6 has the highest sensitivity. Region - Region: after you select motion detection type, click this button to set motion detection zone.
  • Page 52 8.2.8 Default & Backup Default: Restore factory default setup. Select corresponding items. Backup: Export current configuration to local PC or import configuration from current PC. System can’t restore some information such as network IP address. Refer to the following sheet for detailed information. Parameter Function Select All...

  • Page 53: Advanced

    8.3 Advanced 8.3.1 HDD Management HDD management includes net storage management and local storage management. Select the storage device first and then the items on your right become valid. Check the corresponding item here. Click the Execute the button; system needs to reboot to activate current setup. Refer to the following sheet for detailed information.
  • Page 54 8.3.2 Alarm I/O Refer to the following sheet for detailed information. Parameter Function Alarm output There is only one output channel. Please click the button 1. Trigger Enable/disable alarm output device. Refresh Search alarm output status.
  • Page 55 8.3.3 Record Refer to the following sheet for detailed information. Parameter Function Auto System enables auto record function as set in record schedule setup. Manual Not available. Stop Stop current channel record, no matter what period applied in the record schedule setup.
  • Page 56 8.3.4 Account Add, remove user or modify password. Note : Reusable means that the account can be use for different login at the same time. 8.3.5 Auto Maintenance Select auto reboot and auto delete old files interval.
  • Page 57 8.3.6 Snapshot Refer to the following sheet for detailed information. Parameter Function Channel Monitor channel. Snapshot Two modes: Timing and activation. mode Frame rate Select from the dropdown list. The value ranges from 1f/s to 8f/s. Resolution Select from the dropdown list. The resolution may vary due to different series.
  • Page 58 8.3.7 Abnormity Refer to the following sheet for detailed information. Parameter Function Event Type - The abnormal events include: no disk, no space, disk error, net error, offline, IP conflict. - XXXX Space Alarm: Set the minimum percentage value here. The device can alarm when capacity is not sufficient.

  • Page 59: Additional Function

    8.4 Additional Function 8.4.1 Configure Set camera property parameter. The following interface may vary regarding different devices. Refer to the following sheet for detailed information. Parameter Function Channel Monitor channel 1 Exposure There are two modes: Auto exposure (AE) and Manual exposure (ME). Mode There are some ME time ranges from 1/50 to 1/10000.
  • Page 60 8.4.2 Auto Register Refer to the following sheet for detailed information. Parameter Function Enable Enable auto register function. Device management server number. Device management server IP address. Port Server port number. Device ID Device ID in the device management server.
  • Page 61 8.4.3 Talk Encode Set audio compression bit rate. It includes PCM, G711a, G711u.

  • Page 62: Search

    9 Search See chapter 7.3 to see how to access to the configuration menu». Click search button, the following interface appears: Select record playback mode, and then select start time, end time and channel. Click search button, the corresponding files in the list appears. Select the file(s) to download and click download button, system pops up a dialogue box.
  • Page 63 Type Parameter Function Download by file: Select the file(s) and then click download button. Download Download by time: Download the recorded file(s) during specified type period. Select the file needed (multiple choices) and click download button, system pops up a dialogue box. Input the downloaded file name, specify the path and then click Download OK button.

  • Page 64: Alarm

    10 Alarm See chapter 7.3 to see how to access to the configuration menu». Click alarm function, the folowing interface appears. Set device alarm type and alarm sound setup. . Refer to the following sheet for detailed information. Type Parameter Function Video loss System alarms when video loss occurs.

  • Page 65: About

    11 About See chapter 7.3 to see how to access to the configuration menu». View current web client information.

  • Page 66: Log Out

    12 Log out See chapter 7.3 to see how to access to the configuration menu». System goes back to log in interface.

  • Page 67: Annex 1: No-Ip Ddns

    Annex 1: No-IP DDNS If you do not have a Static IP address on the Internet, you need to have a dynamic IP . Because your IP address changes after a certain period of time. So you need to configure a dynamic DNS service. After completed configuration in the device.
  • Page 68 To receive domain name in the No-IP DDNS service, please follow the steps listed below. Please visit www.no-ip.com; the page of No-IP appears as below. Left click mouse on the “Create Account” button, account Information interface Fill in the requested fields and click I Accept butt Then you can get an email containing username and password.
  • Page 69 Click to sign and enter the email address and password you get earlier. Click “login” to sign up, you can see the welcome interface and configuration option of account. You can highlight manage host item. The Manage Hosts interface is shown belo Click the Add Host button you can access the creation of a domain name.
  • Page 70 Input corresponding host name in the filed. You can use this name to access device from an external network. In the field to the right of the name, select the desired area. This is your domain name for access to the device. Click “Create Host”...
  • Page 71 Please go to the device and access the MAIN MENU> SETTING> NETWORK> DDNS. Input server IP you get in the above step. Select the DDNS Type as No-IP DDNS and highlight the icon in front of Enable to enable the DDNS function. Now fill the fields as described below, and click OK to save current setup. •...

  • Page 73: Annex 2: Using Google Chrome

    Annex 2: Using Google Chrome 1- Download and Install Extension Click “Extension” in Google Chrome configuration dropdown list to go to the extension management interface. The Google Chrome extension management interface is shown below. Click “Browse the gallery” and search for “IE Tab” extension.
  • Page 74 Install the latest “IE Tab” extension (version 1.0.11208.1 or above). After installation, you will get an IE icon on top right of your Google Chrome interface. 2. Visit Web Interface - Get an IE address bar by clicking the icon showed previously. - Enter the IP address of your device.

  • Page 75: Annex 3: Using Firefox

    Annex 3: Using Firefox 1- Dowload and install extension: - Click “Tools” and “Add-ons”. - Search and install IE Tab: ie_tab_plus-1.95.20100930-fx+sm After installation, restart Firefox. 2- After restart of Firefox, choose Tools—Add-ons to check if the plugin has been installed. 3- After installation, add the target address to IE Tab before start to access device web client.
  • Page 76 After this, open the webpage http://10.15.5.127 with Firefox . Note : If you have done the follows above and you still can not open the web normally, you need to check the setting in IE to enable downloading of the ActiveX.

  • Page 77: Annex 4: Using Ie8

    Annex 4: Using IE8 1- Run Web interface with IE8 With IE8, sometimes it will not run with the normal mode, there 2 ways to solve this. 1.1 Use the Compatibility View function of IE8 With this way, every time you open the IE interface, must click this button 1.2 Add the certain IP address or website into Compatibility View Settings - Choose Compatibility View Settings in Tool menu...
  • Page 78 - Add the IP or domain name of device into Compatibility View Settings list - Now the web interface can be accessed in normal mode. 3- Download ActiveX with IE8 - For some PC when update windows and install IE8, it will not install the ActiveX.
  • Page 79 Note : If you have done the follows above and you still can not open the web normally, you need to check the setting in IE to enable downloading the ActiveX.

  • Page 80: Annex 5: Email Function

    Annex 5: Email Function First, the Email sender must support smtp 1- Email Setting 1 Set as follow, I use Email server: www.126.com as an example 220.181.15.112 user user@126.com Désignation Email server IP address (ping the server to get the IP) Must be enable Server port (usually 25) User Name - Password...
  • Page 81 2- Email Setting 2 - Input domain name of the email server, such as:smtp.126.com, if you have already set DNS settings smtp.126.com user user@126.com Désignation Email server: if it is domain name, set DNS as follow Must be enable Server port (usually 25) User Name - Password Sender.
  • Page 82 - Get DNS setting from your PC in the same network by command: ipconfig /all 3- Send Email Setting - Enable “send email function” of Detect or Alarm settings, so when there are alarms the device will send Email.

  • Page 83: Annex 6: Routers Configuration

    Annex 6: Routers configuration If you need to access to your device from external network, you will need to set NAT settings on your router. In the circumstance that your device is behind a router or gateway, you need to open the port on that router for the device behind it.
  • Page 84 Note : Do not copy the information in this sample configuration. It is different according the setting on each device. The picture above shows an example of how to open the service port on router for a device in local network. - Check the “Enabled”...
  • Page 85 2- LINK SYS Router Log on to the router. Select “Applications & Gaming” tab on the top. Select “UPNP Forwarding” tab on the left. Then the following screen will be displayed. The screen might be very different regarding to the different model of routers.
  • Page 86 3 SMC Router Log on to the router, select “Advanced Setup” tab on the top, and click “NAT” button on the left panel. Select “Virtual Server” in the expanded list structure, you will see the following screen. Notice that it might look very different according to different models of routers. - In “Private IP”...
