Summary of Contents for LEGRAND VADDIO ConferenceSHOT 10
- Page 1 Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Document 411-0002-31 Rev D October 2019...
-
Page 2: Table Of Contents
Contents Overview What's in this Guide Features Unpacking the Camera A Quick Look at the Camera Front of the Camera Back of the Camera Installation Don’t Void Your Warranty! Before You Install the Camera Installing the Wall Mount About Ceiling-Mounted Cameras Camera Behavior Settings RS-232 Serial Communication Settings RS-232 Connector Pin-Out... -
Page 3: Overview
Overview This guide covers the ConferenceSHOT™ 10 enterprise-class PTZ conferencing camera: North America – 999-9990-000 (silver/black), 999-9990-000W (white) Europe and UK – 999-9990-001 (silver/black), 999-9990-001W (white) Australia and New Zealand – 999-9990-009 (silver/black), 999-9990- 009W (white) What's in this Guide This guide covers: Unpacking the camera Tips for a successful installation... -
Page 4: Unpacking The Camera
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Unpacking the Camera Make sure you received all the items you expected. Here are the packing lists for the ConferenceSHOT 10 cameras. Caution: Use the power supply shipped with the camera. Using a different power supply may create an unsafe operating condition or damage the camera, and will void the warranty. -
Page 5: A Quick Look At The Camera

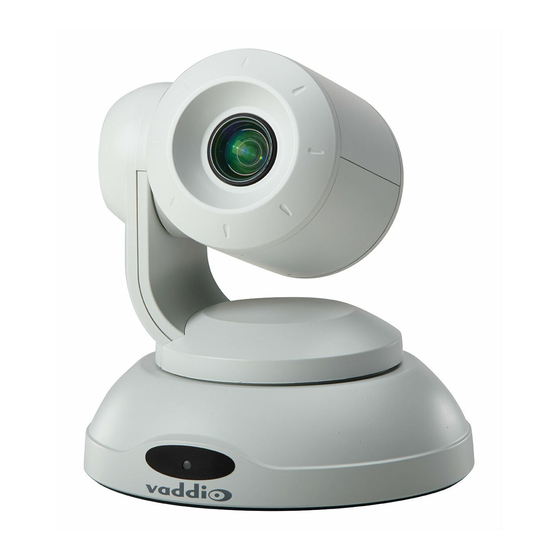

Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera A Quick Look at the Camera This section covers the physical features of the camera. Front of the Camera Camera and zoom lens – The ConferenceSHOT 10 camera features a 10X optical zoom lens (11X in Super-Wide mode). -
Page 6: Back Of The Camera
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Back of the Camera 12 VDC, 3.0 A – EIAJ-04 jack. Connect only the power supply shipped with the camera or approved replacement 12 VDC, 3A power supply. USB 3.0 – USB Type B connector. Connect to a computer for use with soft conferencing applications. Provides uncompressed USB 3.0 stream. -
Page 7: Installation
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Installation This section covers: Selecting the location for the camera Installing the mount Connection diagrams Connecting and mounting the camera Don’t Void Your Warranty! Caution Always support the camera's body when lifting or moving it. Lifting the camera by its head or mounting arm will damage it. -
Page 8: Installing The Wall Mount
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Installing the Wall Mount The camera is shipped with a wall mount. Other mounting options are available as well. Contact us if you don’t have the camera mount you need. You can install the camera wall mount to a 2-gang wall box or directly to the drywall. If you mount it to drywall, use the wall anchors provided with the wall mount. -
Page 9: Camera Behavior Settings
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Camera Behavior Settings The camera uses DIP switches to determine certain camera functions. Note When the camera is not inverted, DIP switches are in their default positions when they are up. IR Frequency Selection:If there are multiple cameras in the room, use switches 1 and 2 to configure each with a different IR frequency to allow the IR Remote Commander to control them independently. -
Page 10: Rs-232 Connector Pin-Out
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera RS-232 Connector Pin-Out Connector pin-out: Pin 1: Not used Pin 2: Not used Pin 3: Not used Pin 4: Not used Pin 5: Not used Pin 6: GND Pin 7: RXD (from TXD of control source) Pin 8: TXD (to RXD of control source) Caution Check your cables. -
Page 11: Connecting The Camera
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Connecting the Camera Here is an example of how the camera might be set up in a medium-size conference room. In this setup, a PC uses a unified communications conferencing application to manage the camera and an EasyUSB Mixer/Amp with attached microphones and speakers. -
Page 12: Installing The Camera
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Installing the Camera Caution Before you start, be sure you can identify all cables correctly. Connecting a cable to the wrong port can result in equipment damage. Caution Check your cables. Connecting a cable to the wrong port or using the wrong pin-out can result in equipment damage and will void the warranty. -
Page 13: Powering Up The Camera
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Powering Up the Camera Connect camera power. The camera will initialize and move. This will take a few seconds. When an image is available, the camera is ready to accept control information. Status Indicator Light The light in the camera's base indicates its current state. -
Page 14: Next Steps
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Next Steps The camera is now ready to configure and use. This information is available in the Complete Manual for the ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera. Operation, Storage, and Care For smears or smudges on the product, wipe with a clean, soft cloth. -
Page 15: Glossary
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Glossary auto white balance A setting that allows the camera to manage color adjustments automatically. backlight compensation A setting that reduces contrast to adjust for bright light behind the main subject of the shot. bandwidth Data transfer rate (bits per second) for the stream. - Page 16 Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera gateway Network information automatically assigned in a DHCP network. If installing equipment on a non- DHCP network, get this information from the network administrator. HDMI A video output format; may also carry audio information. home (camera) The settings to which the camera returns after a reboot or on exiting standby mode.
- Page 17 Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera subnet mask Network information automatically assigned in a DHCP network. If installing equipment on a non- DHCP network, get this information from the network administrator. UCC, UC conferencing Unified Communications Conferencing; refers to soft-client conferencing (such as Zoom or Skype for Business) using a computer with USB-connected peripherals.
-
Page 18: Compliance And Conformity Statements
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Compliance and Conformity Statements Compliance testing was performed to the following regulations: FCC Part 15 (15.107, 15.109), Subpart B Class A ICES-003, Issue 54: 2012 Class A EMC Directive 2014/30/EU Class A EN 55032: 2015 Class A EN 55024: November 2010... -
Page 19: European Compliance
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera European Compliance This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions and Immunity and meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. ... -
Page 20: Warranty And Return Policy
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Warranty and Return Policy Hardware warranty: Two (2) year limited warranty on all parts and labor for Vaddio manufactured products. Vaddio warrants its manufactured products against defects in materials and workmanship for a period of two years from the day of purchase, to the original purchaser, if Vaddio receives notice of such defects during the warranty. - Page 21 Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera General RMA Terms and Procedures: RMA’s are valid for 30 days and will be issued to Vaddio dealers only. End users must return products through Vaddio dealers. Before a defective product can be authorized to send in for repair, it must first go through the troubleshooting process with a member of the Vaddio Technical Support team.
- Page 22 Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Advance Replacement Procedures: The Vaddio Dealer must submit a non-revocable purchase order for advance replacement equipment at normal dealer pricing. Credit shall be issued upon complete product return (including all accessories) for dealers with Net 30 terms. For credit card accounts, charges will be assessed to the credit card for the replacement and credited back upon complete product return.
- Page 23 Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Non-Warranty Repair Charges: Total repair charges (per unit) for a non-warranty repair consist of the following: Cost of any replacement parts needed to repair the defect. Labor costs billed per hour after minimum charges/time. Labor charges include troubleshooting and repair time only.
-
Page 24: Photo Credits
Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera Photo Credits This guide may include some or all of these photos. European Space Agency (ESA) astronaut Samantha Cristoforetti, a Flight Engineer with Expedition 42, photographs the Earth through a window in the Cupola on the International Space Station By NASA - https://blogs.nasa.gov/ISS_Science_Blog/2015/03/06/women-in-space-part-two-whats- gender-got-to-do-with-it/, Public Domain, https://commons.wikimedia.org/w/index.php?curid=38834990 Carl Sagan, Bruce Murray, Louis Friedman (founders) and Harry Ashmore (advisor), on the occasion of... -
Page 25: Index
Index network port 4 operating environment 5, 12 anatomy of the camera 3-4 packing list 2 cable connectors 4, 8 part numbers 2 camera mount 5-6, 10 pin-out, RS-232 connector 8 installing 6 precautions 2, 5 camera placement 5 for operating the system 5 capabilities 1 product capabilities 1 ceiling-mounted cameras 6... - Page 26 Installation Guide for the ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera wall mount 6 installing 6 warranty 5, 18...
- Page 27 ©2019 Legrand AV Inc. Vaddio is a registered trademark of Legrand AV Inc. All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All patents are protected under existing designations. Other patents pending.
