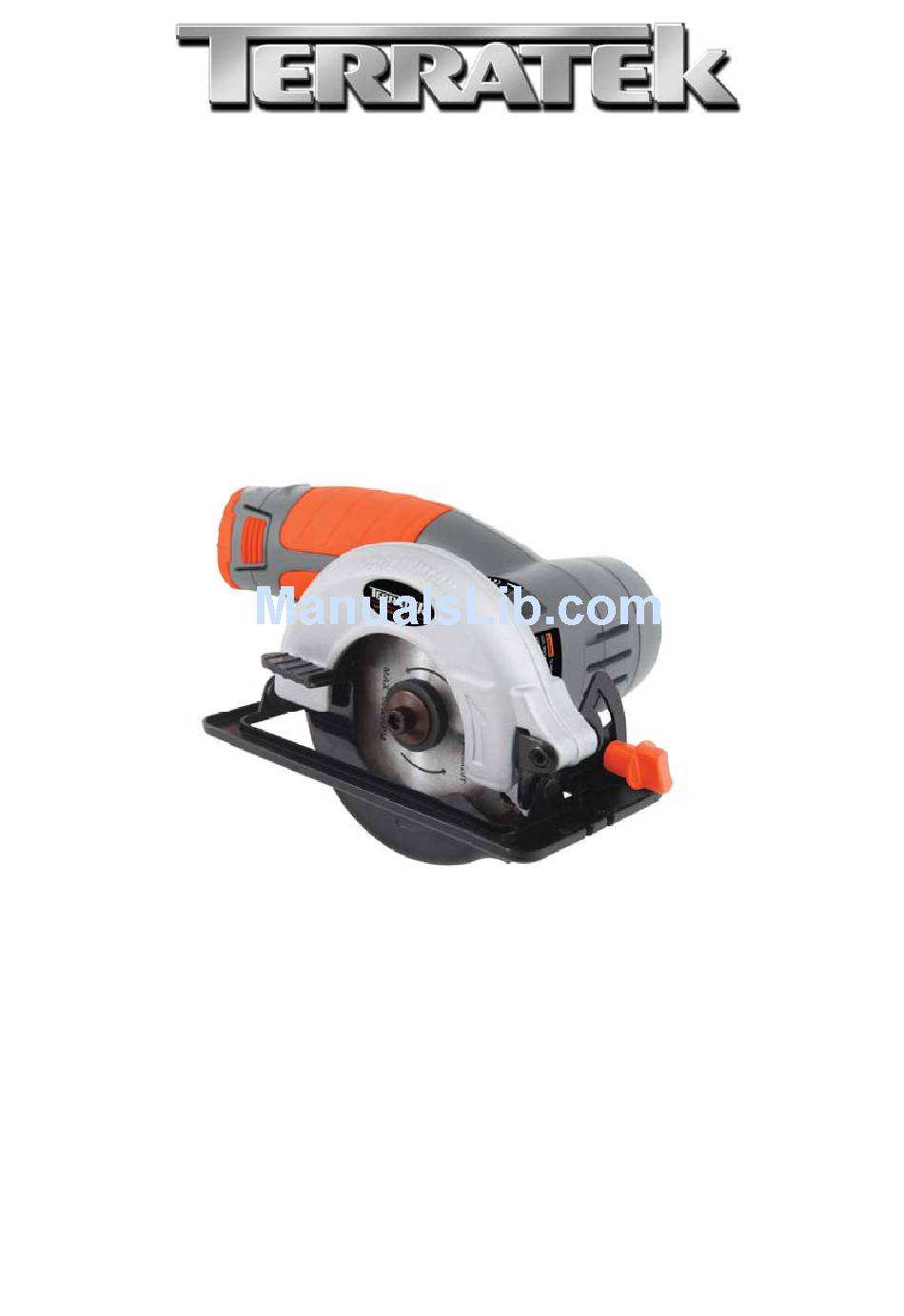

- Page 1 12V Li-ion Cordless Circular Saw T12VCS User Manual — Please read and retain for future reference. IMPORTANT: Read all instructions before use.
-
Page 2: Technical Information
Contents Parts List Technical Information Safety Instructions Using your tool Maintenance Warranty Parts List Description Description hexagonal screw M6X16 spring washer 10 upper clamp small gear saw blade motor lower clamp right housing screw ST2.6x10 rear cover clamp for blade guard screw st2.6x14 lower blade guard left housing... - Page 3 Exploded Assembly Diagram NOTICE: Actual product may vary from pictures shown.
- Page 4 fig.1 1. Battery pack 2. Handle 3. Switch & Safety lock 4. Spindle lock 5. Angle Locking Knob 6. Base plate 7. Lower Guard Battery capacity indicator LED 8. Cutting depth locking lever 9. Charger 10. Blade screw Tabs Charge indicator fig.2...
- Page 5 Technical Information Model: T12VCS No-load Speed: 4800 /min Arbor Size: 10mm Saw blade: Diameter 100mm Max. Cutting capacity: : 26mm; 45 : 14mm Battery Type: 1300 mAh Li-ion Charger Charging time: 1 hour Input: 100-240V AC, 50 – 60 Hz, 27W Output: 12.6V DC, 1500mA Max...
-
Page 6: Important Safety Information
Read and Keep This Manual Please read carefully all instructions within this manual. Failure to follow all safety warnings can result in serious personal injury. The term “Power Tool” in all of the following warnings refers to your mains operated (corded) or battery operated (cordless) power tool. Important SAFETY Information This symbol is to warn you of potential personal injury hazards. -
Page 7: Electrical Safety
Electrical safety Before use, ensure that the power outlet you are using matches the plug on your power tool and that the voltage of the outlet matches that of your power tool. Only use grounded extension cords with power tools fitted with 3 pin plugs and if using outdoors ensure any extension cord is suitable for outdoor use. -
Page 8: General Safety Instructions
Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Develop a periodic maintenance schedule for your tool. When cleaning a tool be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched or safety guard return springs may be improperly mounted. - Page 9 9. USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.
- Page 10 26. NEVER LEAVE TOOL RUNNING UNATTENDED. Turn power off. Don’t leave tool until it comes to a complete stop. 27. Double Insulation eliminates the need for the three wire grounded power cord and grounded power supply system. This power tool is supplied with all the relevant safety guards and features, it should be checked before every operation, this manual should be read and kept in a safe place.
- Page 11 d) Never hold the workpiece you wish to saw in your hand or on your leg. Secure the workpiece on a sturdy surface. It is important that you secure the workpiece well to minimize the danger of body contact, the saw blade jamming or loss of control. e) Hold the tool only by the insulated handles when carrying out work during which the cutting tool could strike concealed power cables or its own cable.
- Page 12 c) If you wish to restart a saw that is already in the workpiece, center the saw blade in the saw gap and check that the saw’s teeth are not caught in the workpiece. If the saw blade is jammed it may move out of the workpiece or cause a recoil when the saw is restarted.
- Page 13 Wear hearing protection. Exposure to noise can cause hearing loss. Always wear eye protection. Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock.
- Page 14 Symbols IMPORTANT: Some of the following symbols may be used on your tool. V…………………………volts A…………………………amperes Hz……………………….hertz ~…………………….….alternating current …/m………………..revolutions per minute .....class II construction (double insulated) Kg………………………..kilograms ………………………..No load speed ……………….…..Conforms to European Harmonised New Approach Directives. DC ………………..…….Direct Current Battery use and care A battery operated tool with integral batteries or a separate battery pack must be recharged only with the specified charger for the battery.
-
Page 15: Overload Protection
Overload Protection The power cutter is fitted with an overload/overheat protection device. When the tool is forced to work at an excessive load, the protection device will be activated automatically to disconnect the power supply. If this occurs, switch off the tool and switch on again to resume the work, make sure to apply only suitable workload to the tool. -
Page 16: Specific Safety Rules
ADDITIONAL PRECAUTIONS FOR CHARGER & BATTERY PACK 1. Do not charge battery pack when temperature is below 10°C (50°F) or above 40°C (104°F). 2. Do not attempt to use a step-up transformer, an engine generator or DC power receptacle. 3. Do not allow anything to cover or clog the charger vents. 4. -
Page 17: Package Contents
Unpacking Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. Package contents A) 12V Li-ion cordless circular saw B) User manual C) Allen key (1 piece) Operation CAUTION! Always be sure that the tool is switched off before assembly, including insertion or removal of the battery pack. - Page 18 Depth Setting 1. Loosen the depth adjustment screw using the cutting depth locking lever (Fig.1-8). 2. Hold the base plate flat against the body of the work piece and raise or lower the body of the saw until the blade is at the right depth. 3.
- Page 19 LED Capacity indicator: (Fig.2) Once only the one LED is lit, the battery must be re-charged. Disposal of the exhausted battery WARNING: Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery.
-
Page 20: General Maintenance
Accessories CAUTION: Use only accessories or attachments recommended for use with your Terratek tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. - Page 21 We ACL Group (Intl.) Ltd, England DN6 8LZ declare that the 12V Li-ion cordless circular saw l has been manufactured according to our full quality assurance procedures. The declaration is to certify that it conforms to CE, EMC, MD and RoHS directives: EN55014-1/A1:2009 EN55014-2/A2:2008 All provisions of Annex 1 of Council Directive 2004/108/EC –...
-
Page 22: Environmental Protection
Environmental Protection RECYCLING: WASTE ELECTRICAL PRODUCTS SHOULD NOT BE DISPOSED OF WITH HOUSEHOLD WASTE. PLEASE RECYCLE WHERE FACILITIES EXIST. CHECK WITH YOUR LOCAL AUTHORITY OR RETAILER FOR RECYCLING ADVICE. Please read the following carefully ACL Group (Intl) Ltd. and/or it’s distributor has provided the parts list and assembly diagram as a reference tool only.
