Page 1: Troubleshooting

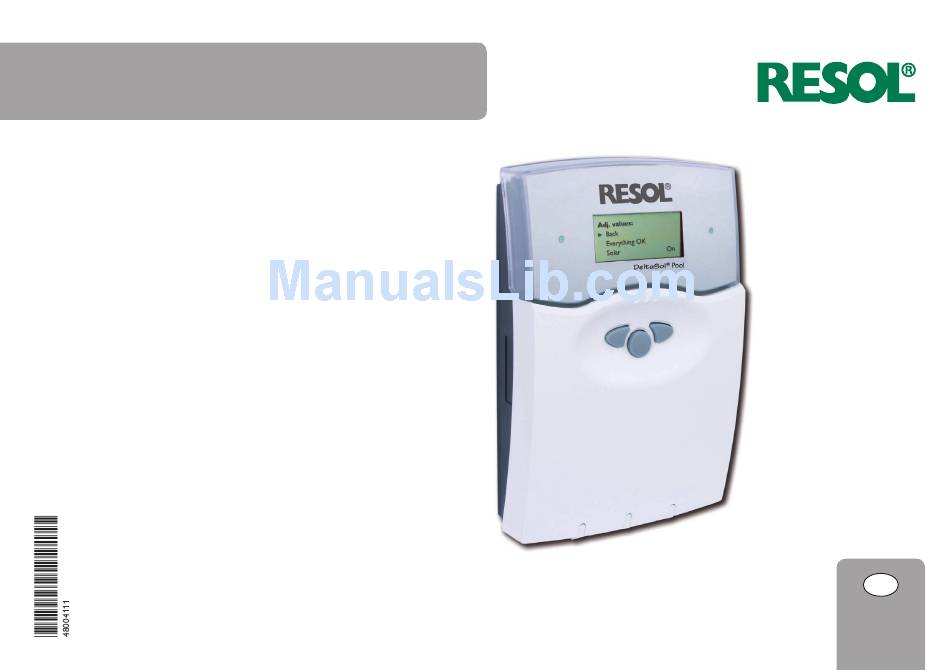

® Pool DeltaSol Manual for the specialized craftsman Mounting Connection Operation Troubleshooting en-US/CA Thank you for buying this RESOL product. Manual Read this manual carefully to get the best performance from this unit. www.resol.com Please keep this manual carefully. - Page 2 Safety advice Target group Please pay attention to the following safety advice in order to avoid danger and These instructions are exclusively addressed to authorised skilled personnel. damage to people and property. Only qualified electricians should carry out electrical works. Initial installation must be effected by qualified personnel named by the manufac- turer.
-
Page 3: Table Of Contents
Backup heating of the swimming pool is adapted to solar gain and pool demand, thus The DeltaSol Pool can easily be connected to other modules via the RESOL ® saving expensive energy. Furthermore, the controller is equipped with a functional- VBus ®... -
Page 4: Overview
Supply connection: type Y attachment Standby: < 2 W Mode of operation: type 1.B.C.Y action Rated impulse voltage: 2.5 kV upper fastening point Data interface: RESOL VBus ® VBus current supply: 30 mA ® Functions: solar operating hours counter and energy metering, function control, filter runtime monitoring, maximum flow temperature limitation, cooling function, collector emergency shutdown, pump monitoring. -
Page 5: Installation
Installation 2.1 Mounting push-push locking mechanism WARNING! Electric shock! push to open Upon opening the housing, live parts are exposed. push to close Î Always disconnect the controller from power sup- ply before opening the housing! ATTENTION! ESD damage! Electrostatic discharge can lead to damage to electronic com- ponents! Î... -
Page 6: Electrical Connection
2.2 Electrical connection 2.2.1 Actuators (pumps, valves, etc.) The controller is equipped with 7 relays to which loads (actuators) such as pumps, WARNING! Electric shock! valves and auxiliary relays can be connected: Nullleiter-Sammelklemme Upon opening the housing, live parts are exposed. benutzen! Î... - Page 7 Collective Block R1-R6 1 (1) A (100 ... 240) V~ The controller is equipped with the RESOL VBus Isolate mains before removing ® for data transfer with and ener- The power supply to the controller must be carried out via an external power 4 (1) A (100 ...
-
Page 8: Basic System
Basic system Sensor allocation CS10 S9 S10 Imp release T-return irradia- flow T-absorber T-pool T-flow T-outd. filter system tion rate (WMZ) switch-extra filter runtime Abbreviations sensors sensor description T-absorber absorber temperature T-pool swimming pool temperature T-flow flow temperature T-outd. outdoor temperature T-return return temperature irradiation... -
Page 9: Operation And Function
Operation and function 4.2 Control lamp 4.1 Buttons for adjustment The controller is equipped with a red-/green control lamp. The following control and system status are signaled: • green: automatic operation control lamp • red flashing: malfunction of the system •... -
Page 10: User Code
4.4 User code Commissioning 1. Expert Code 0077 All menus and adjustment values are shown and all values can be altered. control lamp Note: After the menu point “user code” has been chosen, enter the user code! (-) backwards forwards (+) If you do not enter the expert user code, the expert menu will not be displayed. - Page 11 Minimum runtime Flow maximum limitation Adj. values/Min. on Expert/Options/Flow max. adjustment range: 1 … 10 min and adjust: factory setting: 2 min Expert/Adj. values/T-FLmax. Adjust the minimum runtime, in minutes. adjustment range: 30 … 90 °C Period of time during which the system has to run at least after the switch-on factory setting: 40 °C condition has been fulfilled.
- Page 12 Energy metering Adjusting the antifreeze concentration WMZ/Options/WMZ WMZ/WMZ1/Expert/Antifreeze selection: adjustment range: 20 … 70 Vol % WMZ “Yes” or “No” factory setting: 40 % Heat quantitiy measurement is possible with the difference between flow and re- Adjust the ratio of the water/glycol mixture. turn temperature, and with the flow rate indicated by the flowmeter.
- Page 13 Circulation function Absorber minimum limitation This function makes sure that solar loading will start only if the absorber tempera- Expert/Options/Circulation and adjust: ture reaches the adjusted value. Expert/Adj. values/Circ. time Expert/Options/Abs. min. adjustment range: 1 … 10 min and adjust: factory setting: 1 min Expert/Adj.
-
Page 14: Messages
Extra filter runtime Language: Expert/Options/Extra circ. Expert/Language/English and adjust: Language choice: German, English, French, Castellano, Italiano. Expert/Adj. values/Extra circ. adjustment range: 1 … 20 h Messages factory setting: 2 h Sensor fault This option is used for switching on an extra runtime of the filter pump (in h) if necessary (e.g. -
Page 15: Balance Values
Messages The following states can be displayed: display description display description normal operation of the system, no malfunction Everything OK display of pool temperature Tpool controller is switched off Controller off display of flow temperature Tflow controller has been switched off by the operator >... -
Page 16: Troubleshooting
Troubleshooting Operating control lamp flashes red. The symbol ☍ and the ⚠ are shown. The defective sensor (swimming pool sensor, flow temperature sensor, absorber Sensor fault. An error code instead of a temperature is shown on the sensor sensor) is indicated on the display. The solar thermal system will be switched off or display channel. -
Page 17: Accessories
Smart Display SD3 / Large Display GA3 on sensors, also as complete sensors with immersion sleeve. The RESOL Smart Display is designed for simple connection to RESOL controllers with RESOL VBus . It is used for visualizing data issued by the controller: collector ®... -
Page 18: Interface Adapters
® . A full version The AM1 Alarm module is designed to signal system failures. It is to be connected of the RESOL ServiceCenter software is included. to the VBus ® of the controller and issues an optical signal via the red LED if a fail- ure has occurred. - Page 20 This mounting- and operation manual including all parts is copyrighted. Anoth- some examples. They can only be used at your own risk. No liability is assumed for er use outside the copyright requires the approval of RESOL – Elektronische incorrect, incomplete or false information and / or the resulting damages.
