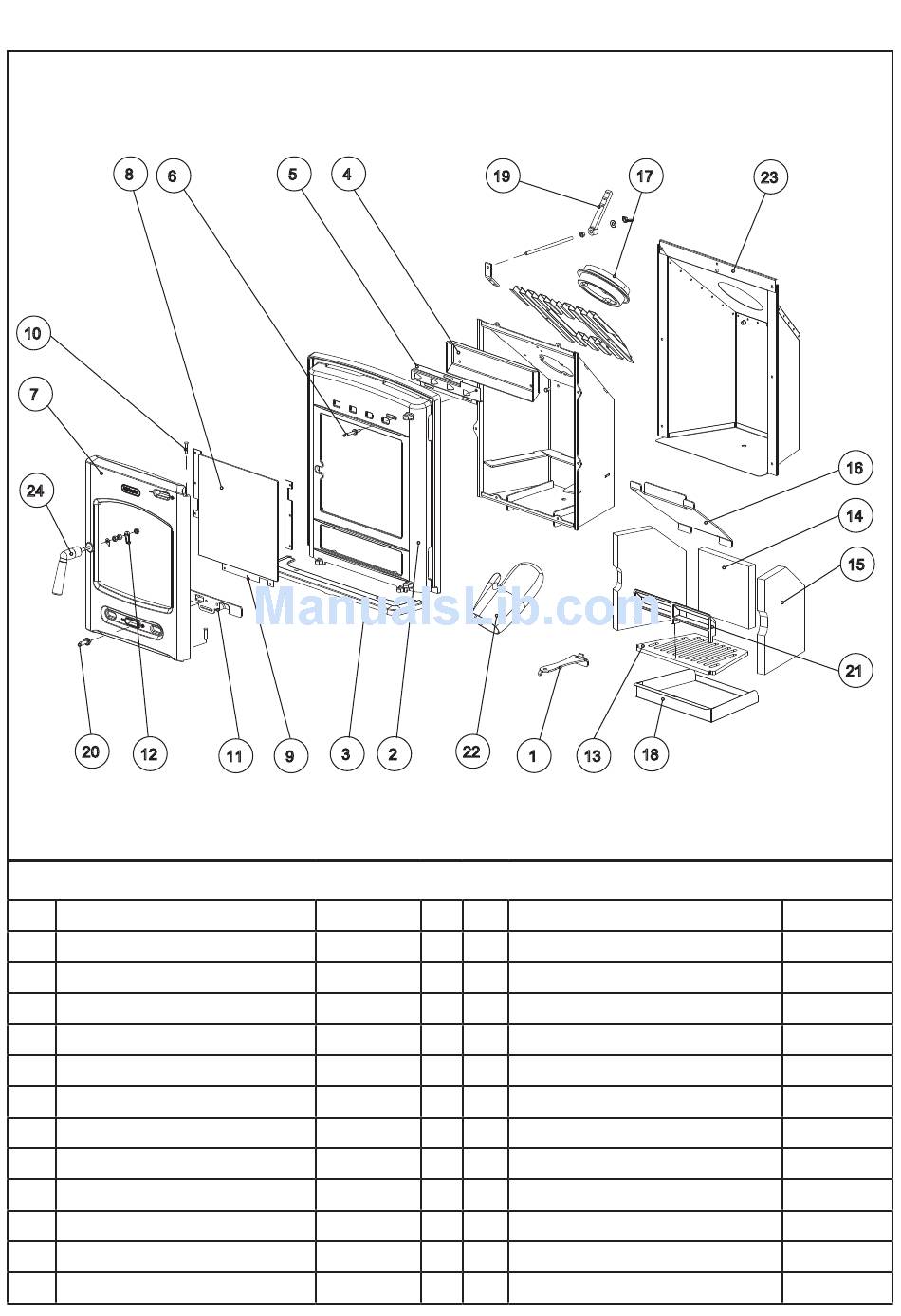

BELLINGHAM 4.7KW INSET STOVE (BLM4iSE) - SPARE PARTS
Item Description
1 HAND TOOL
2 FASCIA
3 FASCIA BASE
4 AIRWASH
5 AIRWASH SLIDE
6 AIRWASH HANDLE
7 DOOR
8 GLASS
9 GLASS FIXING BRACKET
10 DOOR PIN
11 PRIMARY AIR SLIDE
12 HANDLE CATCH
Bellingham 4.7kW Inset (BLM4iSE)
5 4
3 2
11 9
Part Number
1/70186/0
1/70628/0
1/70629/0
1/70630/0
1/70631/0
1/70632/0
1/70633/0
1/70634/0
1/70635/0
1/70636/0
1/70637/0
1/70639/0
- 11 -
19
22
1 13
Item Description
13 GRATE
14 REAR BRICK
15 SIDE BRICK
16 BAFFLE PLATE
17 FLUE COLLAR
18 ASHPAN
19 CLAMP
20 PRIMARY SLIDE HANDLE
21 LOG BAR
22 PROTECTIVE GLOVE
23 OUTER WRAP ASSEMBLY
24 HANDLE ASSEMBLY
17
23
18
Part Number
1/70645/0
1/70646/0
1/70647/0
1/70648/0
1/70649/0
1/70651/0
1/70653/0
1/70818/0
1/70819/0
1/71118/0
2/61996/0
4/19204/0
