Summary of Contents for Thiel SmartSub SS1

  • Page 1: Owner Information

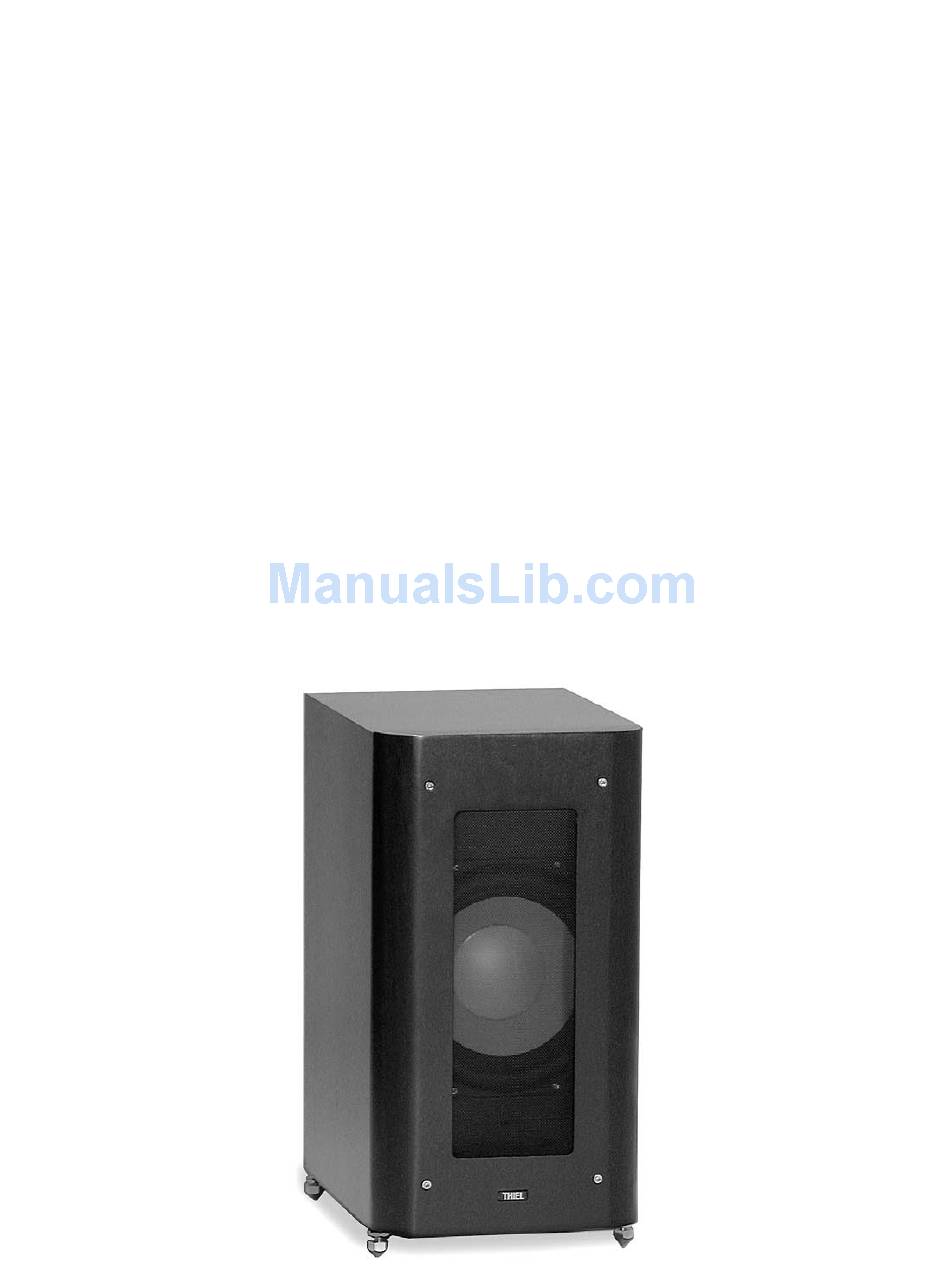

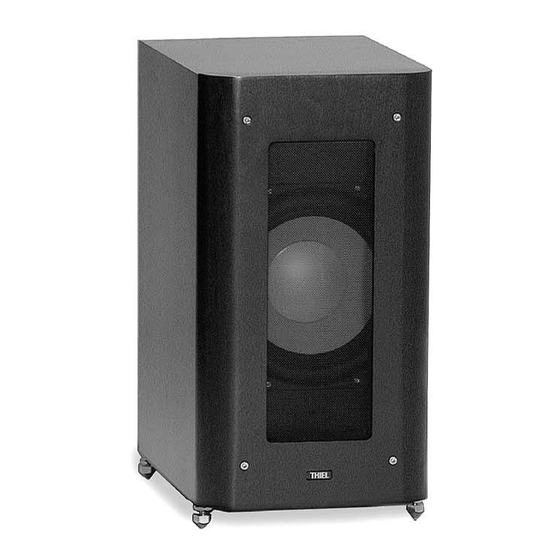

    THIEL SmartSub ® SS1 Subwoofer Owner Information...

  • Page 3: Table Of Contents

    Thank you for purchasing a THIEL SmartSub system. It has been engineered to provide a very high level of performance and also incorporates innovative (patent pending) concepts in its design to solve the several special problems subwoofer systems usually exhibit. Consequently, it performs at a very high level with a wide variety of speakers and room locations.

  • Page 4: Product Features

    Product Features The THIEL SS1 SmartSub is a very high performance, innovative subwoofer system that provides exceptionally deep, uniform, dynamic and low distortion bass reproduction. In addition, it provides near-ideal performance with any room placement and, when used with the companion SI1 Integrator, provides near-perfect integration with any type of main loudspeaker.
  • Page 5 SmartSub Integrator. The passive crossovers provide perfectly blended augmentation of THIEL main speakers, allowing the combination to provide very accurate reproduction of the entire sonic spectrum, to below the audible range.

  • Page 6: System Configurations

    A SmartSub Passive crossover can be used if one is equipment, hookup connections and processor settings. available to match your main THIEL speakers and if low Which system configuration is best for you depends mainly frequency adjustments are not required.
  • Page 7 Right Bal Output L – Unbal Output Left Sub Output R – Right Sub Output Left Bridge In Right Bridge Remote Power THIEL Audio Model INPUTS Lexington, Kentucky www.thielaud io.com SI 1 Speaker level Inputs LFE Input Left Bal Input...

  • Page 8: Crossover Use

    Here is a description of each of these with their advantages. There are several passive crossovers available that match a THIEL subwoofer to various THIEL speaker models. Since they are designed for specific models, they achieve very good integration and balance between the subwoofer and the main speakers.

  • Page 9: Subwoofer Placement

    Subwoofer Placement C C C C C a a a a a ution! ution! ution! ution! ution! Th The subwoofe e subwoofe e subwoofe e subwoofer h e subwoofe r has bui as bui as bui as bui as built-in electronics lt-in electronics lt-in electronics lt-in electronics...

  • Page 10: Setting Up The Subwoofer

    Setting up the Subwoofer to the distance from the side of the subwoofer to the side Hookup wall and the Rear W all Distance to the distance from the rear If the subwoofer is being used with a passive crossover or of the subwoofer to the rear wall.
  • Page 11 T6.3A L 250V for 120v 120V~ 6.3A 60Hz or ® T3.15A L 250V for 240v 230V~ 3.15A 50Hz THIEL Audio • 1026 Nandino Boulevard • Lexington, Kentucky USA • www.thielaudio.com See page 14 for fuse replacement Power cord plugs here Turn power on here...

  • Page 14: Fuse Replacement

    THIEL warrants every THIEL SmartSub system against defects in materials and workmanship to the original owner for a period of ten years from the date of purchase. THIEL will, at no charge, replace any defective part and make any repairs necessary to ensure its proper performance when the defective unit is returned to us postpaid.
  • Page 16 THIEL 1026 Nandino Blvd., Lexington, KY 40511, USA www.thielaudio.com 12/06...
