Subwoofer Placement

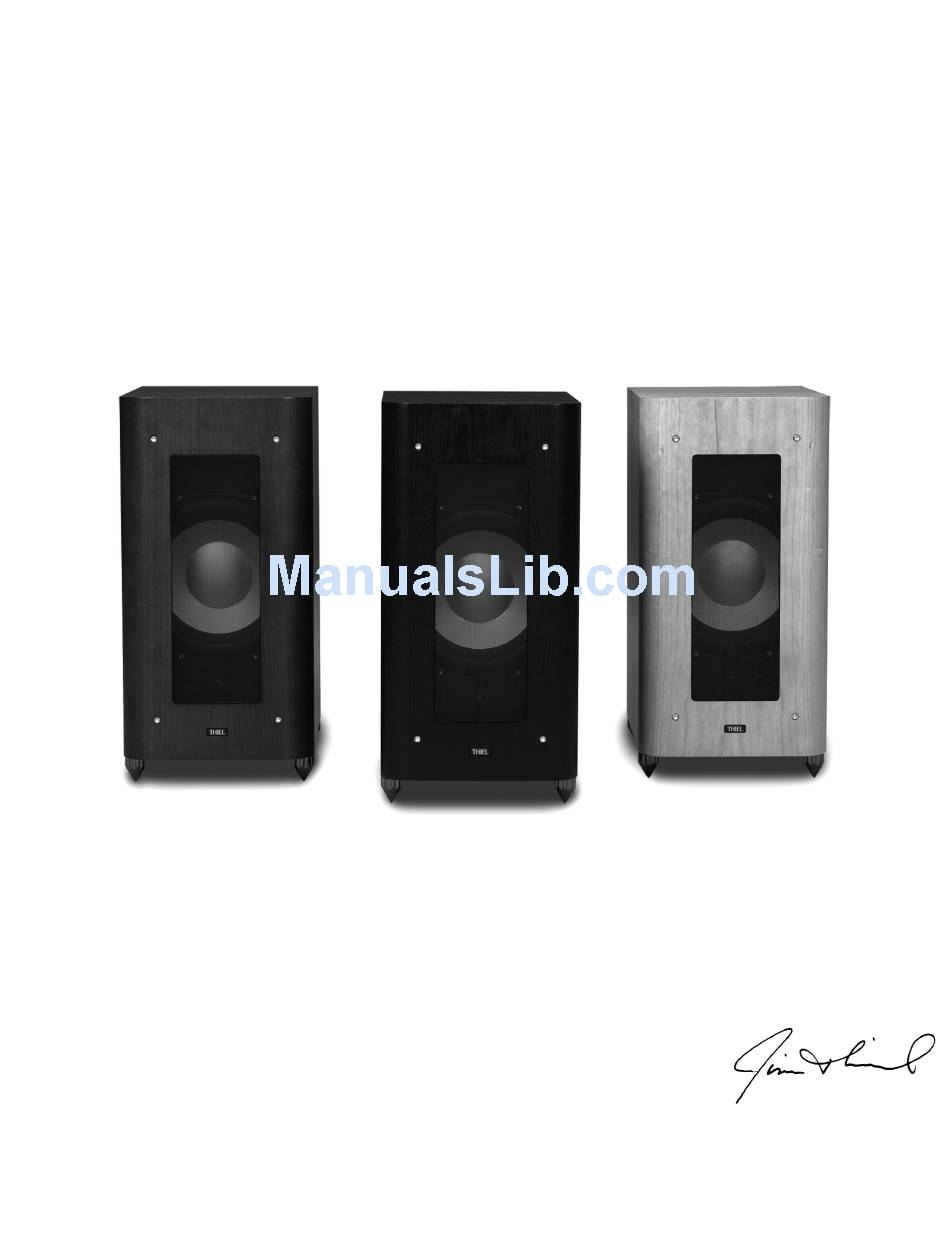

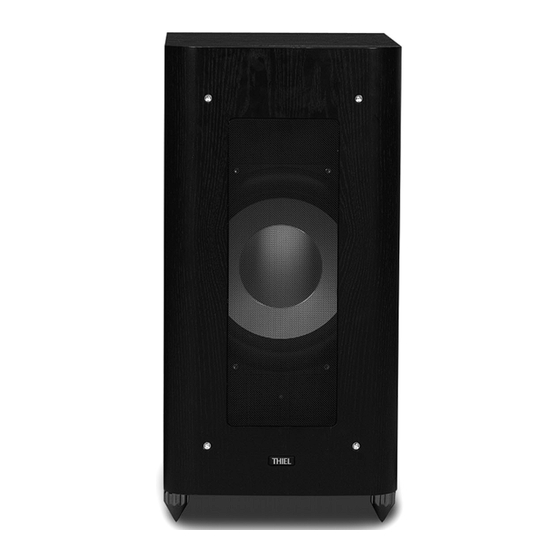

THIEL
USS SmartSub
Owner Information
2
Thank you for purchasing a THIEL SmartSub system. It has been
3
engineered to provide a very high level of performance and also
incorporates innovative and patented concepts in its design to
4
solve the several special problems subwoofer systems usually
4
exhibit. Consequently, it performs at a very high level with a
4
wide variety of speakers and room locations.
4
5
6
6
6
6
6
6
7
8
8
8
®
Jim Thiel, Product Designer
THIEL Loudspeakers
