WLL-TR-1p

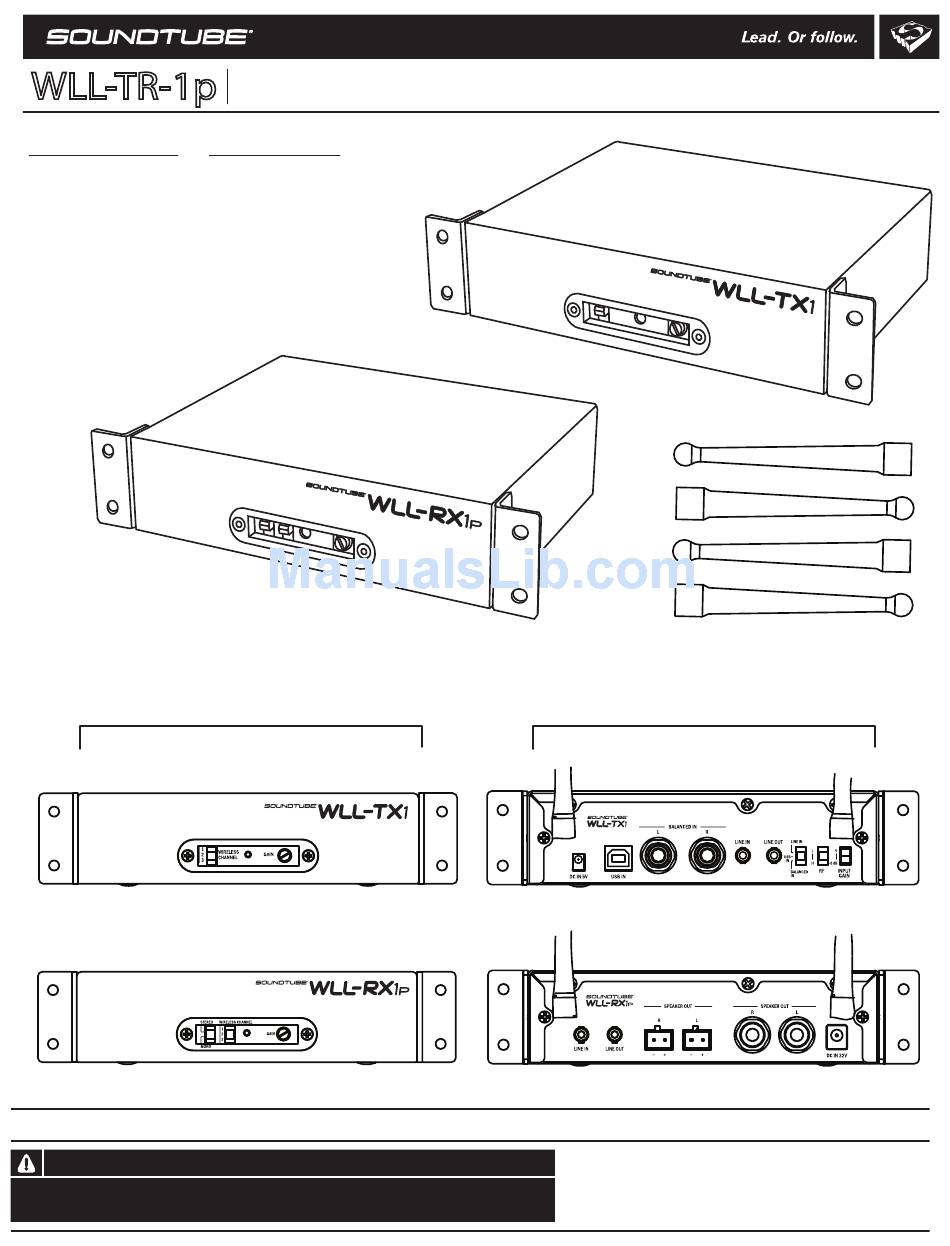

Transmitter Box Contents
1- WLL-TX1 wireless transmitter
1- 5v power supply
2- Half rack mount adapters
2- Antenna
RX unit- Receiver/Amp
TX unit- Transmitter
RX unit- Receiver/Amp
Warning
SoundTube products must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
Install Instructions For:
WLL-TR-1p (WLL-TX1 transmitter and WLL-RX1p receiver/amp).
Receiver Box Contents
1- WLL-RX1p wireless receiver/amp unit
1- 32v power supply
2- Half rack mount adapters
2- Antenna
2- Two-pin Euro-block connectors
Front
TX unit- Transmitter
RX unit- Receiver/Amp
1.435.647.9555
© 2012 SoundTube Entertainment, Inc. All rights reserved. PN INS-WLL-TR-1p Rev01.27.12
TX unit- Transmitter
Antenna (4)
Rear
|
|
800.647.TUBE
www.soundtube.com
