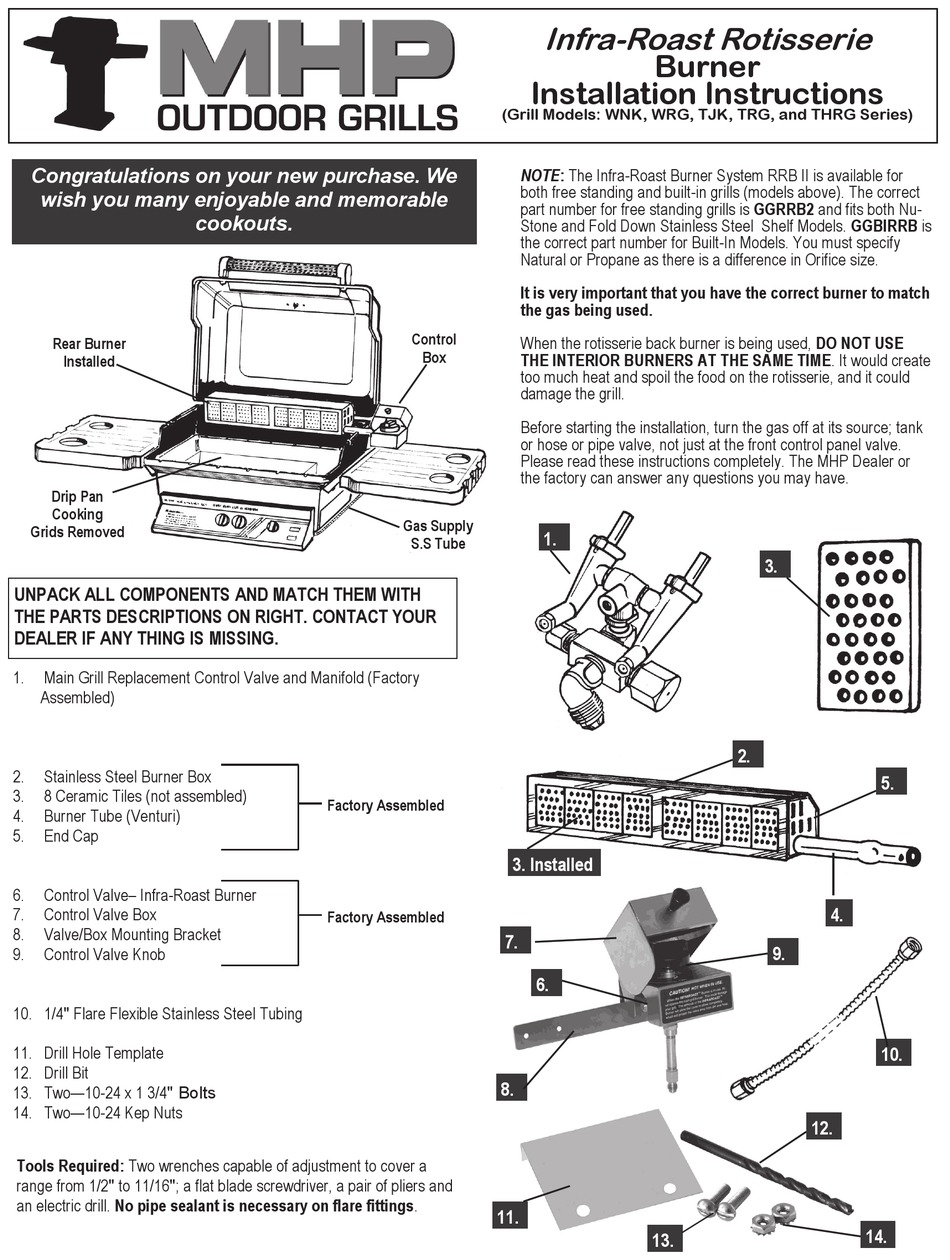

MHP WNK series Installation Instructions

Infra-roast rotisserie burner
Hide thumbs Also See for WNK series:
1
2
3
4

Advertisement

Table of Contents

Congratulations on your new purchase. We
wish you many enjoyable and memorable
Rear Burner
Installed
Drip Pan
Cooking
Grids Removed
UNPACK ALL COMPONENTS AND MATCH THEM WITH
THE PARTS DESCRIPTIONS ON RIGHT. CONTACT YOUR
DEALER IF ANY THING IS MISSING.
1.
Main Grill Replacement Control Valve and Manifold (Factory
Assembled)
2.
Stainless Steel Burner Box
3.
8 Ceramic Tiles (not assembled)
4.
Burner Tube (Venturi)
5.
End Cap
6.
Control Valve– Infra-Roast Burner
7.
Control Valve Box
8.
Valve/Box Mounting Bracket
9.
Control Valve Knob
10. 1/4" Flare Flexible Stainless Steel Tubing
11. Drill Hole Template
12. Drill Bit
13. Two—10-24 x 1 3/4" Bolts
14. Two—10-24 Kep Nuts
Tools Required: Two wrenches capable of adjustment to cover a
range from 1/2" to 11/16"; a flat blade screwdriver, a pair of pliers and
an electric drill. No pipe sealant is necessary on flare fittings.
cookouts.
Factory Assembled
Factory Assembled
Infra-Roast Rotisserie

Installation Instructions

(Grill Models: WNK, WRG, TJK, TRG, and THRG Series)
NOTE: The Infra-Roast Burner System RRB II is available for
both free standing and built-in grills (models above). The correct
part number for free standing grills is GGRRB2 and fits both Nu-
Stone and Fold Down Stainless Steel Shelf Models. GGBIRRB is
the correct part number for Built-In Models. You must specify
Natural or Propane as there is a difference in Orifice size.
It is very important that you have the correct burner to match
the gas being used.
Control
When the rotisserie back burner is being used, DO NOT USE
Box
THE INTERIOR BURNERS AT THE SAME TIME. It would create
too much heat and spoil the food on the rotisserie, and it could
damage the grill.
Before starting the installation, turn the gas off at its source; tank
or hose or pipe valve, not just at the front control panel valve.
Please read these instructions completely. The MHP Dealer or
the factory can answer any questions you may have.
Gas Supply
1.
S.S Tube
3. Installed
7.
6.
8.
11.
Burner
3.
2.
4.
9.
12.
13.
5.
10.
14.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WNK series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MHP WNK series

Summary of Contents for MHP WNK series

  • Page 1: Installation Instructions

    Before starting the installation, turn the gas off at its source; tank or hose or pipe valve, not just at the front control panel valve. Please read these instructions completely. The MHP Dealer or the factory can answer any questions you may have.
  • Page 2 DISCONNECT GAS The first step in the installation is to remove the grill’s front con- SUPPLY LINE Mounting trol panel so you can gain easy access to the main grill control Bolt valve and replace it with the new valve/manifold combination. Make sure the gas is “OFF”...
  • Page 3 ASSEMBLE THE BURNER END CAP REMOVE Place Infra-Roast Ceramic tiles into the burner. Remove the two TWO SCREWS screws that hold the end cap in place. With the end cap re- moved, simply slide the eight tiles into the preformed channel. NOTE: The tiles have two faces (a front and a back).

  • Page 4: Cooking Tips

    BE CAREFUL! COOKING TIPS Using the back Infra-Roast Burner is a fun and exciting method of food preparation. With some practice you MHP Intra-Roast System will provide flavor and convenience not possible with conventional gas grill cooking. We recommend a shallow baking pan or shaped aluminum foil to collect the “drizzles.” Place the pan on top the the grill rock directly beneath the food on the spit.
