- Page 1 Hall Research Technologies, Inc 1163 Warner Ave. Tustin, CA 92780 Phone: (714) 641-6607 Fax: (714) 641-6698 ’ ’ 18-Channel VGA Video Splitter / Distribution Amplifier November 17, 2005 UMA1004 Rev. n/c...

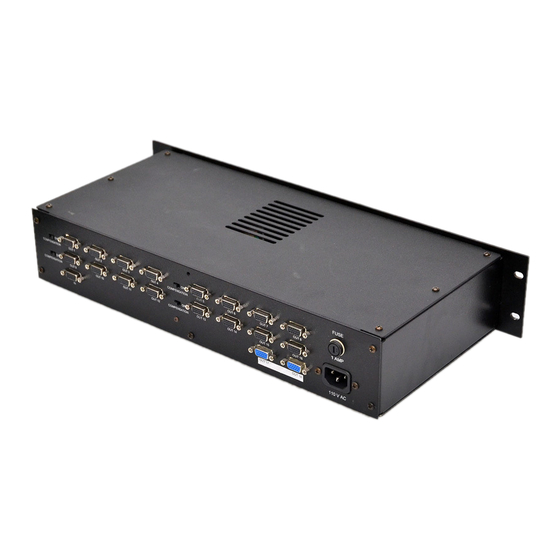

- Page 2 Description The Model 1800-RA is a VGA (RGBHV) video splitter that employs the latest technologies in high-resolution video distribution. The rack-mountable unit provides one VGA input and 18 VGA outputs. 16 of the 18 outputs can be boosted beyond the normal signal levels in order to drive long cable up to several hundred feet.
-
Page 3: Connection Diagram
Connection Diagram Specifications Equipment included: • North American AC power cord (European also available upon request) • 6 ft, high-resolution (multi-coaxial) video input cable • User’s Manual Dimensions: 15.5 " wide x 3.19" high x 10" deep Video Specs: Connectors Input and Outputs: HDD15 female Coupling Signal Level... - Page 4 If necessary, you should consult the place of purchase or and experienced radio/television technician for additional suggestions. Warranty HRT warrants that the supplied equipment is free from defective workmanship and material. Subject to the agreements set forth, will repair or replace, at its option, the defective components for a period of 2 years after purchase.
