Summary of Contents for Trigano Jardin OSMOSE Oval

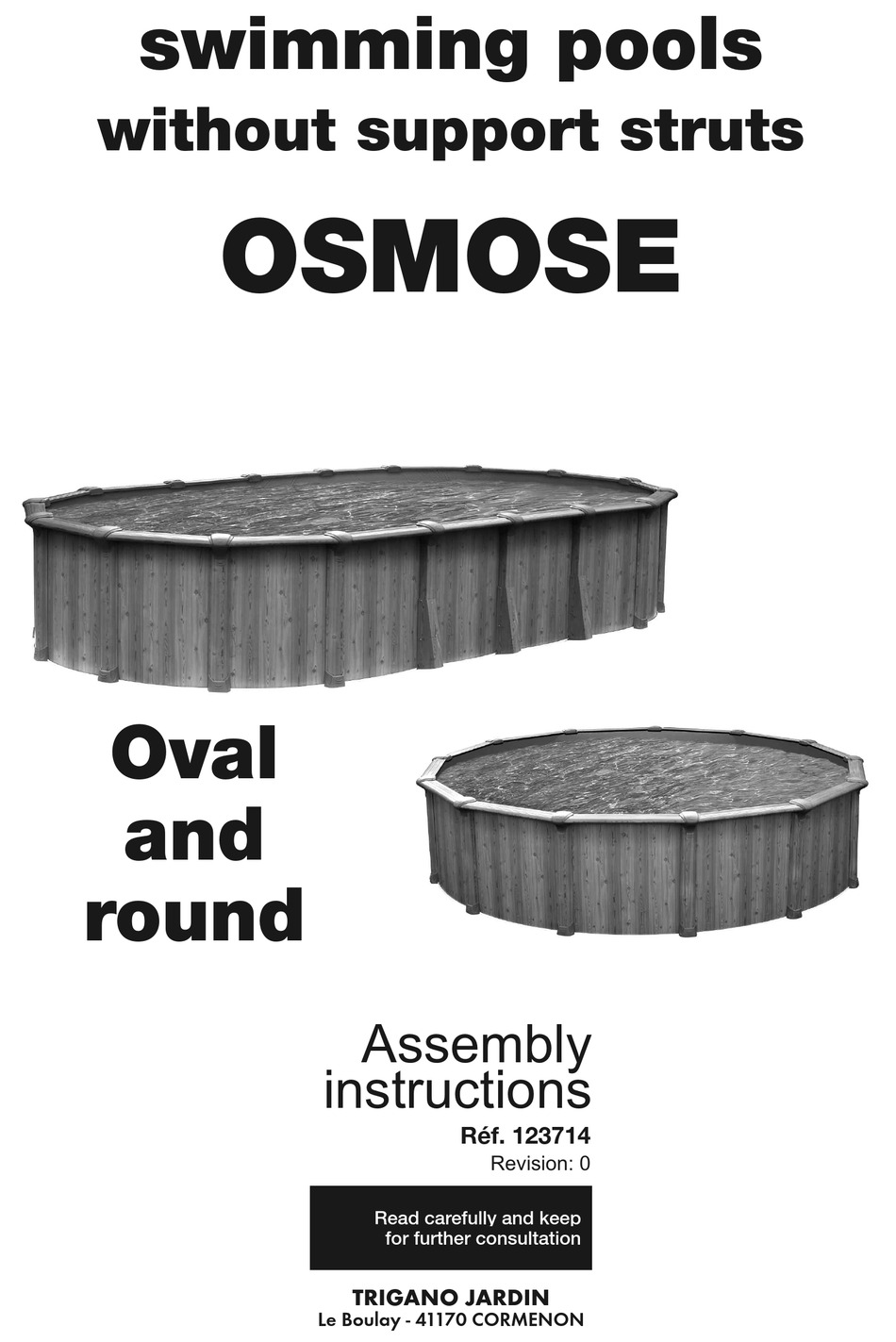

- Page 1 OSMOSE Oval round Assembly instructions Réf. 123714 Revision: 0 Read carefully and keep+ for further consultation+ TRIGANO JARDIN Le Boulay - 41170 CORMENON...
-
Page 2: Safety Recommendations
MANUFACTURER’S WARNING: WE ADVISE AGAINST DISMANTLING THE SWIMMING POOL For further explanations or in case of installation problems with the swimming pool kit, please contact us: TRIGANO JARDIN Tél : +33 (0)2 54 73 55 82 Fax : +33 (0)2 54 73 55 81 Le Boulay sav.abak@trigano.fr... - Page 3 Keep this notice for further consultation. NB: TRIGANO JARDIN cannot be held responsible for incorrect installation or incorrect operation due to the non respect of the specifications or the instructions for assembly and use and declines all forms of responsibility in this regard.
- Page 4 Chow do I get organised to assemble my swimming pool? Installation planning : • Time required for installation: 4 days, including 2 days to prepare the ground and 2 days to assemble the pool. • Number of people required for assembly : 3. READ THESE INSTRUCTIONS CAREFULLY AND KEEP THEM FOR FURTHER CONSULTATION.
- Page 5 Dimensions of OSMOSES 574,04 cm 788,67 cm 365,76 608,60 cm 365,76 727,71 cm 518,16 518,16 3.65 x 6.10 (12 x 20) 3.65 x 7.31 (12 x 24) 975,36 cm 1066,80 cm 914,40 cm 462.28 711,20 1005,84 cm 619,76 5.48 x 10.05 (18 x 33) 4.57 x 9.14 (15 x 30) Area required for Installation Real Size of the Swimming Pool...
- Page 6 STAGE 1 - Levelling: oval and round pools Having decided on the area for installation, make sure you have enough space around it and prepared the ground for cleaning, you can start levelling the ground. The ideal tool to do this is an aluminium mason’s ruler. If you haven’t got one, use a long plank (the plank should be completely straight) and a spirit level as shown in the illustration.
- Page 7 13. Left-side boot (without support) 1. Pressure plate 7. Tensile strip 14. Right-side boot (without support) 2. Right lower side rail 8. Metal screw 4.8x12 15. Tensile strip support, length 1155mm 3. Oval upper plate 9. Metal screw 5.5x20 16. Three-hole plate. 4.
- Page 8 STAGE 4 – Installing the straight sides : oval swimming pool. Once you have completely finished the assembly of the tensile strips and attached them to the lower corner-pieces, you can begin to ins- tall them in their final positions. If your pool has an odd number of strips, (e.g. a three-strip pool measuring 3.65 x 7.31), find the centre of the area that you levelled earlier, place the first strip there and assemble the oval riser as shown in the illustration.
- Page 9 STAGE 6 – Assembly of lower rails : oval and round swimming pools. Once you have unpacked the lower rails, you will certainly have noticed that there are three different sizes of rails (except for the pool size 3.65 x 5.18 which only has two sizes). Some rails measure 95.25cm, others measure 99.06cm and the others are longer, but the exact length depends on the size of your pool.
- Page 10 STAGE 7 – Straight-sides frame : oval swimming pool. Now that the base of the pool is completely assembled, you must make sure that the straight sides of the pool are per- fectly aligned. We call this “framing the pool”. We do this by measuring from the outside of the first oval riser on one side to the outside of the last oval riser on the oppo- site side (these are the two oval risers the furthest apart from...
- Page 11 STAGE 10 - Installation of the walls : oval and round swimming pool. DO NOT ATTEMPT THIS STAGE IN WINDY WEATHER CONDITIONS. THE WALL IS VERY HEAVY AND IT CAN BE EXTREMELY DIFFICULT TO HANDLE IN THE WIND. IF THE WIND CATCHES THE WALL DURING INSTALLATION IT MAY CREATE A DANGEROUS SITUATION OR CAUSE DAMAGE TO THE POOL.
- Page 12 STAGE 11 – Assembly of the wall joints : oval and round swimming pools. IMPORTANT : This operation must be carried out with care! While joining up the wall, make sure that the pre-attached aluminium edges are not touching one another. One bar should be inside the pool (the bolts will be touching the bar) and one bar should be outside the pool (the nuts should be touching the bar).
- Page 13 STAGE 13 – Assembly of curved risers : oval and round swimming pools. In most models, the top can be identified either by the presence of an extra Top plate hole in the centre or by one on either side (according to the model) for the de- corative hoods.
- Page 14 Pool wall CORRECT LINER SEAM resting evenly on the INCORRECT LINER SEAM protective angle shifting on the wall. of the pool This should not happen. Correct the situation if necessary. Protective angle Protective angle NB: Align the seam of the wall straight from top to bottom, far from the skimmer and the overflow. STAGE 16 - Adjustment of the liner and assembly of the skimmer : oval and round swimming pools.
- Page 15 Installing the skimmer and the overflow pipe 1- INSTALLING THE OVERFLOW PIPE • Unscrew the ring completely and remove the two circular joints. • Insert the overflow piece on the inside of the wall, through the opening that you have made in the liner, then, into the first joint and the pre-cut hole through the wall.
- Page 16 STAGE 17 - Installation of the inner stabiliser : oval and round swimming pools. 1/ OVAL : Once the liner has been completely adjusted and the plastic holding pegs have been attached, the next stage is to attach the inner sta- biliser rails.
- Page 17 STAGE 19 - Installation of the lips : oval and round swimming pools. 1/ OVAL : Straight side upper rail You should have two different sizes of lips with your oval swimming pool. The upper lips of 104.77cm (measured from the furthest point to the furthest point) are for the straight sides of your pool.
- Page 18 21 – Advice for use and maintenance Failure to comply with the running maintenance instructions can cause serious health risks, notably for children. Filtration In order to eliminate matter in suspension, a good filtration system (sand filter) is essential. During the season in which your pool is in use, the filtration system should be run every day for a sufficiently long period of time to ensure at least one turnover of the volume of water every 24 hours (the minimum length of time during for which the filtration system should be run will depend on how much the pool is used and on the water temperature).
- Page 19 SOLUTION PROBLEM CAUSE Adjust the pH level. Cloudy water Hard water with particles in Place a flocculant in the skimmer or directly in the pool. suspension. Backwash the filter (BACKWASH position) until the water expelled towards the drain is clean Adjust the pH level.
- Page 20 Thank you for purchasing an ABAK swimming pool. This swimming pool will guarantee you exceptional quality and reliability and we hope that it will meet your expectations. S w i m m i n g P o o l s TRIGANO JARDIN Le Boulay - 41170 CORMENON...
