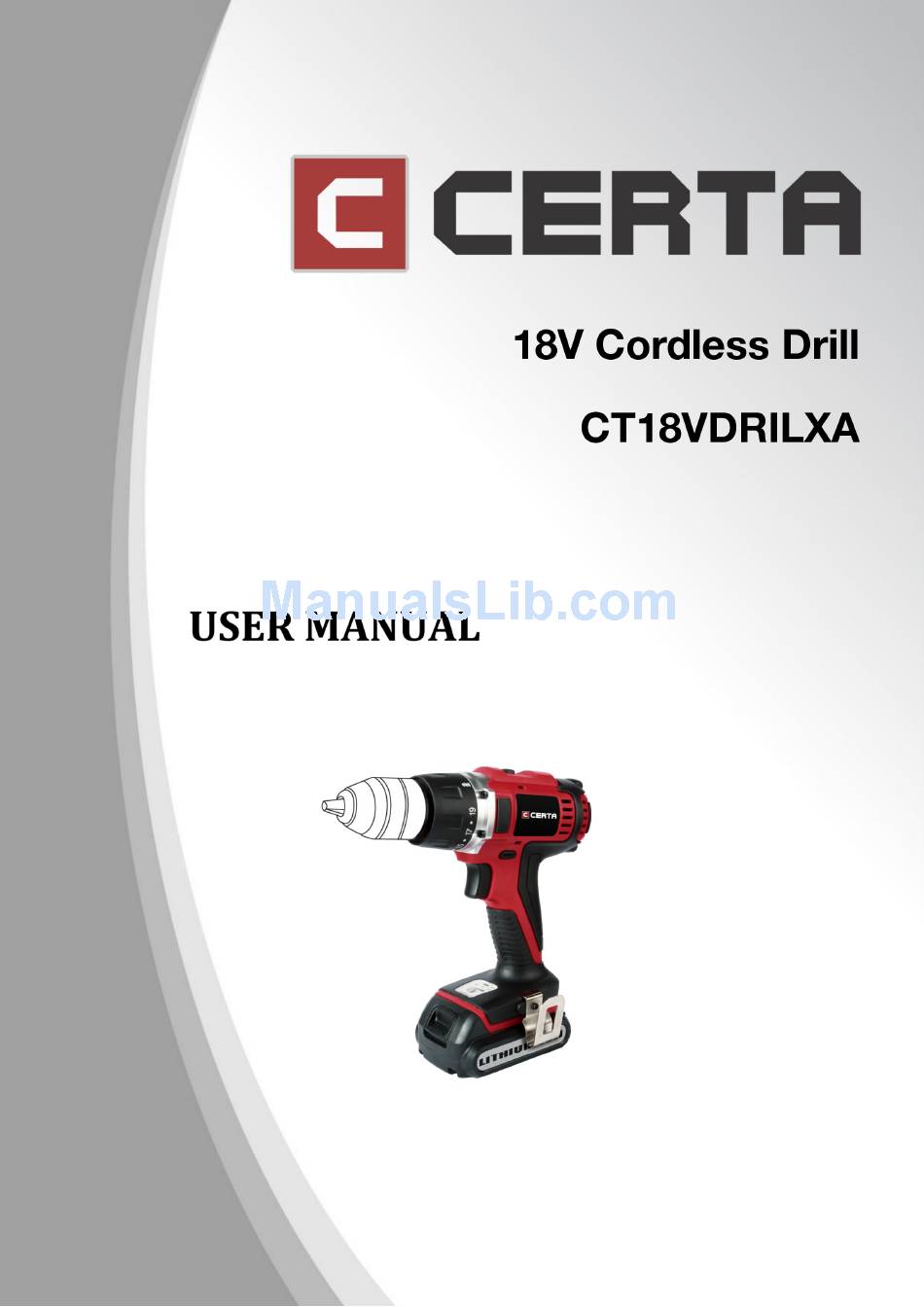

Summary of Contents for Certa VDRILXACT
-
Page 2: Table Of Contents
General Tool Safety Warnings......................2 Work Area............................2 Electrical Safety..........................2 Personal Safety..........................2 Power Tool Use and Care......................3 Battery Tool Use and Care......................3 Additional Warnings Applicable for the Cordless Drill..........4 Important Safety Instructions for Battery Charger............4 Important Safety Instructions for the Battery Pack............5 Symbols..............................6 Product Information.........................6 Layout..............................6... -
Page 3: Work Area
Save all warnings and instructions for future reference. The term “power tool” refers to your mains operated (corded) power tool or battery-operated (cordless) power tool. 1. Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. 2. - Page 4 energizing power tools that have the switch on invites accidents. 4. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. 5.
- Page 5 terminals together may cause burns or a fire. 5. Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Page 6 reassembly may result in a risk of electric shock, electrocution or fire. • Battery short or fire may result. • Functional Description and Specifications. Other types of batteries may burst causing personal injury and damage. • This is important to prevent serious damage to the battery cells. •...
-
Page 7: Symbols
The following symbols or initials may be used on the tool. Please see below to learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. Volts Voltage Amperes Current Hertz Frequency (cycles per second) Kilograms Weight Minutes... -
Page 8: Torque Settings
Voltage Supply 17V d.c./1.3 A h Li-ion Idling Speed 0-400/0-1400rpm Torque Settings 19+1 Forward & Reverse Rotation Yes Chuck Clamping Width Max 13mm Battery Charging Current 1300mA Mains Voltage for Charger 100-240V~/50-60Hz Charging Time 1 hour Weight 1.5kg 1. Remove the battery pack (5) from the handle, pressing the push lock buttons (8) downwards to do so. -
Page 9: Drilling
The cordless screwdriver is fitted with a mechanical torque selector. The torque for a specific size of screw is selected with the set- collar (1). The correct torque depends on several factors: the type and hardness of the material • the type and length of screws •... -
Page 10: Led Lamp
The 3 colour LEDs will indicate the status of battery capacity as soon as you press the ON/OFF switch (4). All LEDs illuminate: Battery is fully charged. • Yellow and red LEDs illuminate: Battery has adequate charge. • Red LED: The battery is empty. Please recharge. •... - Page 11 Clean out dust and debris from vents and electrical contacts by blowing • with compressed air. Always wear safety goggles when cleaning tools with compressed air. Keep tool handles clean, dry and free of oil or grease. • Use only mild soap and a damp cloth to clean the tool, keeping away from •...
- Page 12 connected to a light switch which turns power off when you turn out the lights. Surrounding air Move charger and • • temperature. battery to a surrounding air temperature of above 4.5°C or below 40.5°C. Battery pack too hot The charger will not •...
