Page 1: User Manual

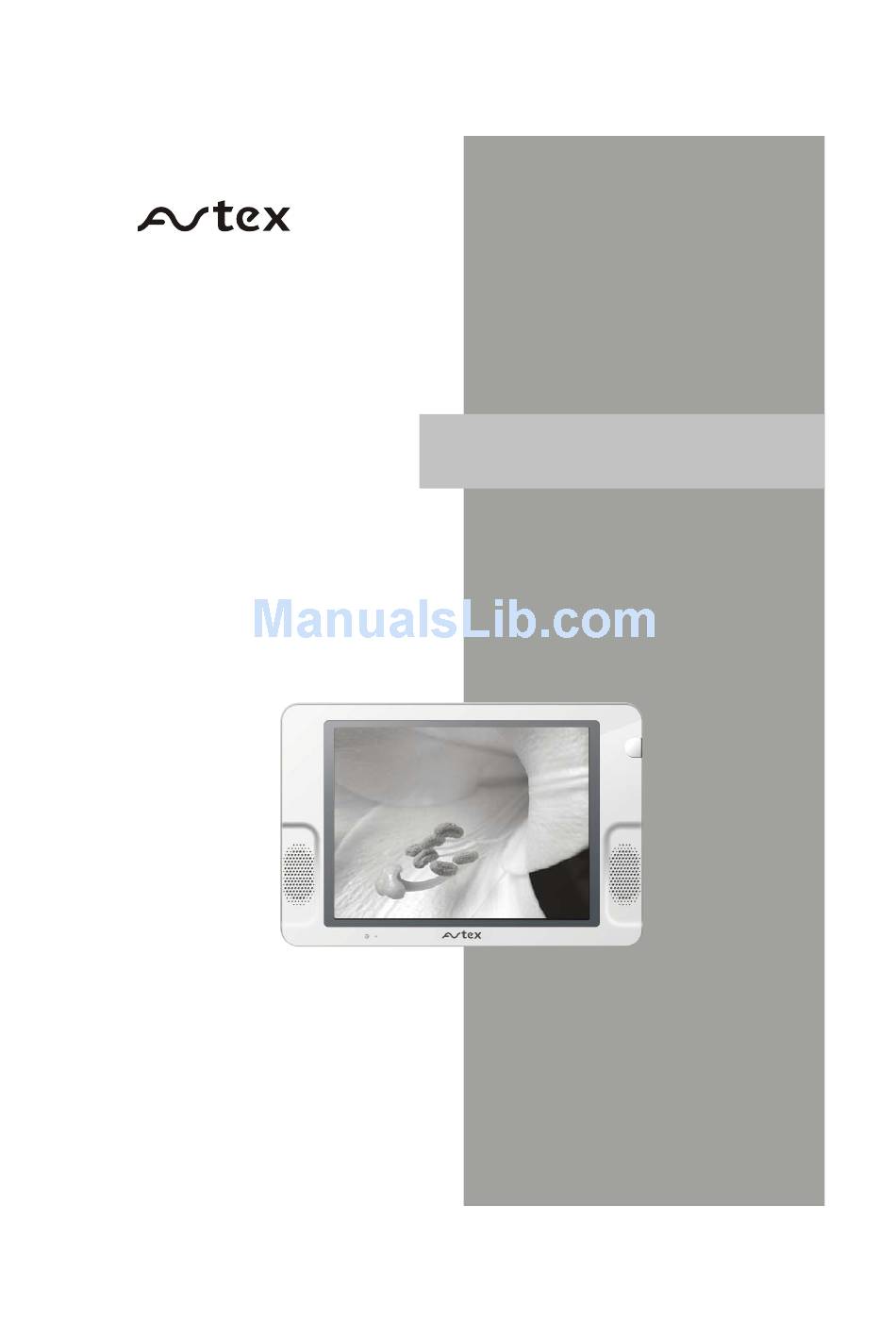

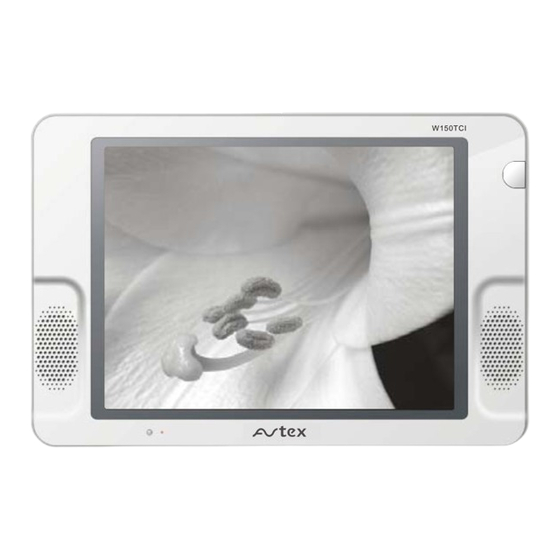

TFT-LCD TV W150TCI USER MANUAL READ CAREFULLY BEFORE OPERATION W150TCI... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS TO PREVENT ELECTRICAL SHOCK. CAUTION DO NOT REMOVE THIS COVER. NO USER- SERVICEABLE PARTS INSIDE. RISK OF ELECTRIC SHOCK. REFER SERVICING TO QUALIFIED DO NOT OPEN. SERVICE PERSONNEL. T h i s s y m b o l i n d i c a t e s This symbol indicates d a n g e r o u s v o l t a g e important instructions... - Page 3 IMPORTANT SAFETY INSTRUCTIONS Do not clean the front with keton-type materials (e.g.Acetone ),ethyl alcohol, toluene, ethy lacid, methyl, or chloride-these may damage the panel. Locate your DC adapter near an easily accessible AC outlet. If your LCD TV does not operate normally in particular, if there are any unusual sounds or smells coming from it unplug it immediately and contact an authorized dealer or service center.
-
Page 4: Table Of Contents
CONTENT INSTALLATION Normal installation PANEL BUTTON FUNCTIONS Panel control Rear panel EXTERNAL EQUIPMENT Connecting diagram REMOTE CONTROL HANDSET Remote buttons Battery installation LET'S START Changing source operation TV MENU SETUP Sound Picture TV setup OSD setup Function TELETEXT FUNCTION Teletext function SCART SETUP Video setting menu VGA SETUP... -
Page 5: Installation
INSTALLATION NORMAL INSTALLATION Hook Ostium M4 10 Screw 1pcs Kickstand Rear viewing of LCD TV 1, Hook the tache (labeled A)of the kickstand onto the plate (labeled C). 2, Tighten the screws ( M4 10) through the ostium (labeled B). 3, Figure shows the finished installation. -
Page 6: Panel Button Functions
PANEL BUTTON FUNCTIONS PANEL CONTROL Front panel IR sensor window Indicator( Indicator is red when in standby mode, green when working normally. Left panel SETUP (Enter or exit setup menu) VOL+/-(Increase or decrease volume) CH+/- (Increase or decrease channel number) SOURCE (Enter to exit source menu) STANDBY (To switch between standby mode and power-on mode) Headphone jack... -
Page 7: Rear Panel
PANEL BUTTON FUNCTIONS REAR PANEL COAXIAL VIDEO SCART VGA input terminal Composite video/audio input PC audio input Coaxial digital audio output 12V DC input terminal R input terminal SCART input terminal... -
Page 8: External Equipment
EXTERNAL EQUIPMENT CONNECTING DIAGRAM COAXIAL VIDEO SCART cable DVD or VCR player Power amplifier (with coaxial digital audio in) NOTE You should connect the interconnecting cables BEFORE plugging in the power cord. -
Page 9: Remote Controller
REMOTE CONTROLLER REMOTE BUTTONS Direct source buttons Select signal source directly: DTV, TV, SCART, AV, VGA. NICAM Switch in NICAM,A2 and mono channel (It is effective in TV signal input with NICAM or A2 function). Number button To select program number. RETURN To exchange channel between the previous program and the current program in TV and... - Page 10 REMOTE CONTROLLER STANDBY To switch between standby mode and power- on mode. LANG To switch the output language in DTV. TWO-DIGIT NUMBER BUTTON To switch between one or two-digit program number. SOURCE To select input source: TV, DTV, AV, SCART, VGA.
-
Page 11: Battery Installation
REMOTE CONTROLLER BATTERY INSTALLATION Remove the battery cover. Insert two SUM-4(AAA) batteries matching the -/+ polarities of the battery to the -/+ marks inside the battery compartment, as in the following figure: BATTERY LIFE Generally speaking, the battery may be used for one year, but the battery life is also related to the usage times and remote controller operation. -
Page 12: Changing Source Operation
LET'S START After this unit is well fixed on the desk or on the wall, and the cords are well connected for input and output, what you should do next is: Firstly, connect the adapter to the LCD TV, and turn on the power switch then the unit will go into standby mode, you can see the indicator turn red. -
Page 13: Picture
TV MENU SETUP This product can store up to 100-channel programs (0 99). In TV, press [SETUP] button and the setup menu will show as follows: Pressing [ ] button on the remote control, you can select setup menu sections (setup PICTURE menu consists of "... - Page 14 TV MENU SETUP NOTE Select "BRIGHTNESS " to adjust it, the sub item will show as follows : press [ ] button to adjust the value of brightness. BRIGHTNESS " CONTRAST , TINT , SHARPNESS , SATURATION are as the same. "...
-
Page 15: Sound
TV MENU SETUP SOUND Select " "and menu will show as follows: SOUND SOUND MODE USER BALANCE BASS TREBLE NICAM MONO SELECT ENTER SETUP RETURN Press [ ] button to select different items and press [ ] button to adjust them. The following are the descriptions of the sound item. -
Page 16: Tv Setup
TV MENU SETUP T V S E T U P Select " " and TV setup menu will show as follows: TV SETUP CHANNEL COLOR SYSTEM AUTO SOUND SYSTEM AUTO FINE TUNING 40.00MHZ MANUAL SEARCH AUTO SEARCH CHANNEL EDIT SELECT ENTER SETUP RETURN... - Page 17 TV MENU SETUP Select "AUTO SEARCH " , the searching menu will show as follows: AUTO SEARCH VHF L 112.25MHZ PRESS SETUP TO EXIT The number of programs have been found. The current searching frequency. The current searching frequency Band, 3 Bands in total: "VHF L" ,"VHF H"," UHF". Select "CHANNEL EDIT "...
-
Page 18: Osd Setup
TV MENU SETUP OSD SETUP You can adjust the relative parameters of OSD itself here. Select " " item and OSD SETUP menu will show as follows: OSD SETUP ENGLISH LANGUAGE OSD H-POSITION OSD V-POSITION OSD DURATION TRANSPARENCY SELECT ENTER RETURN SETUP Press [... -
Page 19: Function
TV MENU SETUP FUNCTION Select " " item and FUNCTION menu will show as follows: FUNCTION FULL ASPECT RATIO NOISE REDUCE SLEEP RESET SELECT ENTER SETUP RETURN Press [ ] button to select different items and press [ ] button to adjust them. Item Description To switch the video format between "FULL"... -
Page 20: Teletext Function
TELETEXT FUNCTION Most TV stations provide cost-free teletext information, including the latest news, weather information, TV program list and stock information, etc. You just input the needed teletext page according to the teletext content. TELETEXT DISPLAY Select the channel with teletext signal; Press [TEXT] button;... -
Page 21: Av And Scart Setup
AV and SCART SETUP VIDEO SETTING MENU The menu setup of AV/SCART modes is much the same as that of TV mode, except the " " section is invalid and a bit difference in sound mode. It is not repeated here. You can find it in preceding pages. NOTE In TV, if you first use the set or havn t tuned, the hint will display as follow:... -
Page 22: Vga Setup
VGA SETUP With the VGA mode supported up to 1024*768@75Hz, and speakers built in, you can use this unit as a multimedia PC monitor. When this unit works in VGA mode, the following setup can be done. Press [SETUP] button to enter main section. Press [ ] button to select sections and then press [ ] button or [OK] button to enter. -
Page 23: Sound
VGA SETUP Here shows the color temperature sub menu. COLOR TEMPERATION MODE NORMAL GREEN BLUE Press [ ] button to select item and press [ ] button to adjust the value of the item. Item Description Select color temperature mode :"USER", "NORMAL", "WARM" MODE and "COOL". -
Page 24: Monitor Setup
VGA SETUP M O N I T O R S E T U P Press [ ] button to select " " and press [ /OK] button to enter. MONITOR SETUP H - POSITION V - POSITION FREQUENCY PHASE SELECT ENTER RETURN SETUP... -
Page 25: Osd Setup
VGA SETUP O S D S E T U P Press [ ] button to select " " and press [ /OK] button to enter. OSD SETUP ENGLISH LANGUAGE OSD H-POSITION OSD V-POSITION OSD DURATION TRANSPARENCY SELECT ENTER RETURN SETUP Press [ ] button to select different items and press [ ] button to adjust . -
Page 26: Function
VGA SETUP F U N C T I O N Press [ ] button to select " ", and press [ /OK] button to enter. FUNCTION FULL ASPECT RATIO NOISE REDUCE SLEEP RESET SELECT ENTER SETUP RETURN Press [ ] button to select different items and press [ ] button to adjust . -
Page 27: General Setup
DTV MENU OPERATION Press the [DTV SETUP] button, then the Main Menu will be displayed, you can set your preferences in that, such as search channels, edit the channel list or your favorite list , view Programme Guide Information. It is easy to see that the Main Menu is composed Main Menu of six parts: General Setting, Channel Install, General Setting... - Page 28 DTV MENU OPERATION Channel Search You can set the search mode as new or add . Channell Search Then press [ OK ] button to confirm it. Installation type Note: If the mode is new, will delete the old channel the current frequency. If the mode is add, do not delete the old channel the current frequency.
-
Page 29: Channel Manage
DTV MENU OPERATION CHANNEL MANAGE Channel Manage Create a favourite list The Favorite lists menu allows you to create, Modeify a favourite list modify and delete your own favorite lists but not Delete a favourite list the two default service lists (TV, Radio). Four TV favorite lists and four radio favorite lists can be created. - Page 30 DTV MENU OPERATION Default TV/Radio lists On these lists, only the Lock/unlock option is available: a press on the [RED] button will " " lock the highlighted channel if unlock and vice-versa (toggle behavior). TV/Radio favourite lists For all these lists, a few actions are available: Add/Skip: Toggle behavior on the [GREEN] button, in front of the channel list a color icon indicates the status (white for skipped, blue for added).
-
Page 31: Advanced Setting
DTV MENU OPERATION ADVANCED SETTING The parental control item allows you to enable or disable the locking management. Advanced Setting Parental control Disabled Channel lock Maturity level PIN change SETUP EXIT Parental Control If the parental control item is disabled then all the locking are deactivated, If it is enabled then all the locking are applied according to your choice. -
Page 32: System Info
DTV MENU OPERATION ELECTRONIC PROGRAM GUIDE (EPG) By pressing the Guide button, an Electronic Program Guide is displayed. The EPG supplies information, such as program lists, start and end times of all available channels. In addition, In addition, the detailed information about the program is often available in he EPG. (The availability and the amount of program details will vary depending on the broadcaster.) A press on the [ ] buttons allows you to consult all event pages for the days, a press on... -
Page 33: Program Information
DTV MENU OPERATION System Information System Information This screen gives you some information about the DTV (Device Version and Software Version). W150TCI_ICE_ 2008_03_06_V1.0 SETUP EXIT Factory Settings This acknowledge pop-up allows you to erase all the custom parameters. If it is confirmed, all All private settings and other user data services lists and user preferences are deleted will bu erased. -
Page 34: Mheg5
DTV MENU OPERATION The Channel selector is activated by a press on the OK button while in viewing mode. This screen presents the channels of the current default/favourite lists. When selecting a channel of this list with the OK button, the DTV changes the video background accordingly. When you press the OK button on the selected service, the DTV switches to viewing mode and changes the selected channel accordingly. -
Page 35: Display Troubleshooting
TROUBLESHOOTING Please check for causes of problems in accordance with the following chart before contacting maintenance personnel. DISPLAY TROUBLESHOOTING Causes and Correction Symptom Check whether the power cord is well connected, and whether this unit is powered on Black screen, power indicator light off Check whether the signal cord of input device is well connected... -
Page 36: Specifications
SCART Power Normal Standby mode Less than Input connector IEC-Type, IEC 169-2, Female Frequency range (VHF/UHF) 174MHz 858MHz Channel range(VHF/UHF) 7 & 8 Mhz W H D... -
Page 37: Display Mode
DISPLAY MODE SUPPORTED PC INPUT MODE Hor scanning frequency Ver scanning frequency Pixel frequency Format Resolution (KHz) (Hz ) (MHz) 640 350 31.5 70.0 25.17 31.5 70.0 720 400 28.32 31.5 60.0 640 480 25.18 37.9 72.0 31.50 640 480 VESA 37.5 75.0... - Page 38 DISPLAY MODE SUPPORTED VIDEO INPUT MODE Hor scanning frequency Ver scanning frequency Vert scan type Format ( KHZ) (HZ) 720X480 31.5 480P 720X480 15.6 480i 720X576 31.2 576P 720X576 15.6 576i NOTE Specifications and designs are subject to change without notice.
- Page 39 ACCESSORIES Please check the following accessories. Remote control and battery User manual Power adapter Kickstand Kit AV cord Wall Mount Holder Kit (optional) Automotive Power socket adapter 5196277 V0.0...
