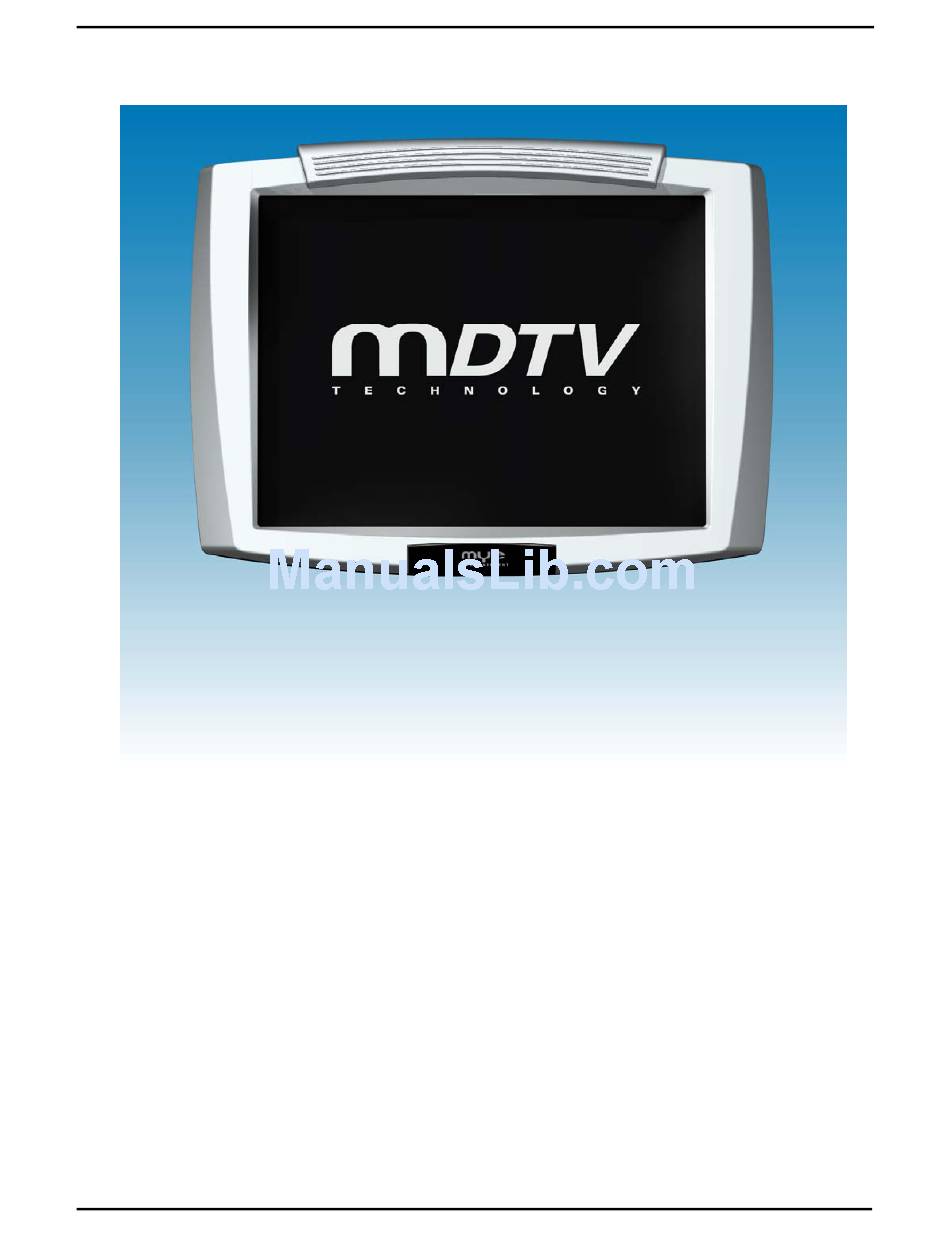

- Page 1 MYE Entertainment MYE PERSONAL DIGITAL TV SYSTEM M15TV-NAQ2 Owners Manual Mar 24, 2009 (Version 4) www.myeclubtv.com Page 1/24...
-
Page 2: Table Of Contents
CONTENTS page(s) page GENERAL SAFETY and CARE In the Box…………………………………….. Mounting the Screen………………………... MENU: SETUP and OPERATION Main MENU – Access CHANNEL MENU Tuning Band…………………... Cable Mode……………. DTV Signal…………………….. Auto CH Search………. Manual CH…………………….. Channel Label Options.. Menu Language………………. Video Menu Contrast……………………….. -
Page 3: General Safety And Care
GENERAL SAFETY and CARE Thank you for your purchase of the MYE Entertainment MYE PERSONAL DIGITAL TV SYSTEM. This product has been designed specifically for use in the health & fitness industry, ensuring maximum performance and longevity in the harsh fitness club environment. Properly cared for, this product will provide years of high-quality entertainment. - Page 4 Relocate or turn the antenna of the receiving device. • Increase the distance between this product and the receiving device. If these steps do not resolve the interference, please contact your local installing company or MYE Entertainment at 1-661-964-0217. Mar 24, 2009 (Version 4) www.myeclubtv.com...
-
Page 5: In The Box
The shipping carton for the screen should contain the following components: Power adapter & AC power Screen Combined coaxial/power cable cord MYE Entertainment MYE PERSONAL DIGITAL TV SYSTEM M15TV-NAQ2 Owners Manual Screen controller coiled cord IR remote control Owners Manual... -
Page 6: Menu: Setup And Operation
MENU: SETUP and OPERATION Once the unit has been connected, a setup procedure is required for optimal operation. MAIN MENU – ACCESS To access all MENU functions you MUST enter MENU mode. Sub-menu page “Channel” To ENTER MENU 1) Push “MENU” on the IR remote. 2) Use keys on remote to select Sub-Menu. -
Page 7: Dtv Signal
+5dBmV to +15 dBmV when read on analog channels. A signal level outside of this range will provide less than optimum results. In order to ensure the highest degree of satisfaction, MYE Entertainment recommends using a MYE Entertainment Certified Installer for installation &... -
Page 8: Manual Ch
Enter MENU and Sub-menu page… 1-4 Auto CH Search 1) Use keys on remote to select Auto CH Search. 2) Push “OK” key to enter. Broadcasting frequency is automatically searched and saved. The search starts from analog TV (NTSC) to digital TV (VSB/QAM), and it takes 2~4 min. -
Page 9: Menu Language
1-6 Channel Label Options Enter MENU and Sub-menu page… 1) Use keys on remote to select Channel Label. 2) Push “OK” key enter. 3) Use keys on remote to select channel. 4) Use Volume to move to first character entry. 5) Use Channel to select character. -
Page 10: Video Menu
2-VIDEO MENU Video Menu contains 3 video presets (Soft – Standard – Vivid) and 1 user adjustable option (User). 1) Use keys on remote to select Video Menu. 2) Push key to enter Video Mode. 3) Push “OK” key to change setting. (Soft – Standard – Vivid – User) 2-Video Menu - USER Contrast Brightness... - Page 11 2-3 Sharpness Enter MENU and Sub-menu page… 1) Use keys on remote to select Sharpness. 2) Push “OK” key to enter / change setting. 3) Use the keys to adjust level. 2-4 Color Enter MENU and Sub-menu page… 1) Use keys on remote to select Color.
- Page 12 2-7 Aspect Ratio Enter MENU and Sub-menu page… 1) Use keys on remote to select Aspect Ratio. 2) Push “OK” key to enter / change setting. (16:9 – 4:3) 2-8 Settings Enter MENU and Sub-menu page… 1) Use keys on remote to select Settings. 2) Push “OK”...
-
Page 13: Audio Menu
3 AUDIO MENU Audio Menu contains 4 audio presets (Standard – Music – Movie -Sports) and 1 user adjustable option (User). 1) Use keys on remote to select Audio Menu. 2) Push key to enter Audio Mode. 3) Push “OK” key to change setting. (Standard – Music – Movie – Sports – User) 3 Audio Menu - User Audio Language Bass... -
Page 14: Treble
3-2 Bass Enter MENU and Sub-menu page… 1) Use keys on remote to select Bass. 2) Push “OK” key to enter / change setting. 3) Use the keys to adjust level. 3-3 Treble Enter MENU and Sub-menu page… 1) Use keys on remote to select Treble. -
Page 15: Digital Audio Output
3-5 Digital Audio Output Enter MENU and Sub-menu page… 1) Use keys on remote to select Digital Output. 2) Push “OK” key to enter / change setting. (AC-3 – PCM) 3-6 Setting Enter MENU and Sub-menu page… 1) Use keys on remote to select Settings. 2) Push “OK”... -
Page 16: Set Time
4 SETUP MENU 1) Use keys on remote to select Setup Menu. 2) Push key to enter. Set Time Sleep Mode Timer Advanced Video Menu Set Password Parental Control Closed Caption Options Display Closed Caption 4-1 Set Time Enter MENU and Sub-menu page… 1) Use keys on remote to select Set Time. -
Page 17: Advanced Video Mode
4-3 Advanced Video Menu Enter MENU and Sub-menu page… 1) Use keys on to Advanced Video Menu. 2) Push “OK” to enter Advanced Video Menu. 3) Use keys to select setting. Noise Reduction Color Temperature 3D Y/C Adaptive Contrast Live Scan LCD Brightness Setting (Reset) 4) Push “OK”... -
Page 18: Closed Caption
4-6 Closed Caption Options Enter MENU and Sub-menu page… 1) Use keys on remote to Closed Caption Options. 2) Push “OK” to enter Closed Caption Options. 3) Factory setting is “Automatic” 4) Press “OK” to enter / change to “Custom” 5) Use keys to select Custom CC function. -
Page 19: Custom Features
CUSTOM FEATURES – ACCESS To access Custom Features you must enter Custom Features MENU mode. To ENTER Custom Features MENU: C usto m Features 1) Press VOL to “0.” 2) With the VOLUME level bar (OSD) still present enter code “1-5-9-3” on the number keypad. 3) Custom Features menu (OSD) will appear. -
Page 20: Channel Default
5-2 CHANNEL DEFAULT TIME Used to set the time period for viewing the Channel Default channel upon power “ON” but only when a channel is assigned as the HOME auto default channel as well. During this assigned time period the user will be unable to change the channel from the Default Channel until TV switches to the HOME auto default channel. -
Page 21: Auto Power On
5-4 AUTO DEFAULT* – uses Vibration Detect “ON” Assigns a channel as the HOME auto default channel that a viewer is sent to: 1) Directly after the designated time is for the Default Channel upon TV power “On.” 2) Directly after no vibration is detected after the designated time for Vibration Detect. 3) When the HOME key is pressed on the keypad. - Page 22 6- Remote Control 1. POWER : Power On/ Off 2. MUTE : Toggles through mute - audio - CC options 3. SLEEP : Displays current sleep timer value by minute when no sleep timer OSD activated. (30 - 60 - 90 minute) 4.
-
Page 23: Warranty
FOLLOWING WARRANTY TERMS AND CONDITIONS. LIMITED WARRANTY MYE ENTERTAINMENT (MYE) WARRANTS ALL NEW MYE PRODUCTS TO BE FREE FROM DEFECTS IN MATERIALS AND MANUFACTURERS FOR THE WARRANTY PERIODS SET FORTH BELOW. THE WARRANTY PERIODS COMMENCE ON THE INVOICE DATE OF THE ORIGINAL PURCHASE. THIS WARRANTY APPLIES ONLY AGAINST DEFECTS DISCOVERED WITHIN THE WARRANTY PERIOD AND EXTENDS ONLY TO THE ORIGINAL PURCHASER OF THE PRODUCT. -
Page 24: Warranty
THOSE WARRANTIES THEREAFTER. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. MYE ENTERTAINMENT ALSO HEREBY DISCLAIMS AND EXCLUDES ALL OTHER OBLIGATIONS OR LIABILITIES, EXPRESS OR IMPLIED, ARISING BY LAW...
