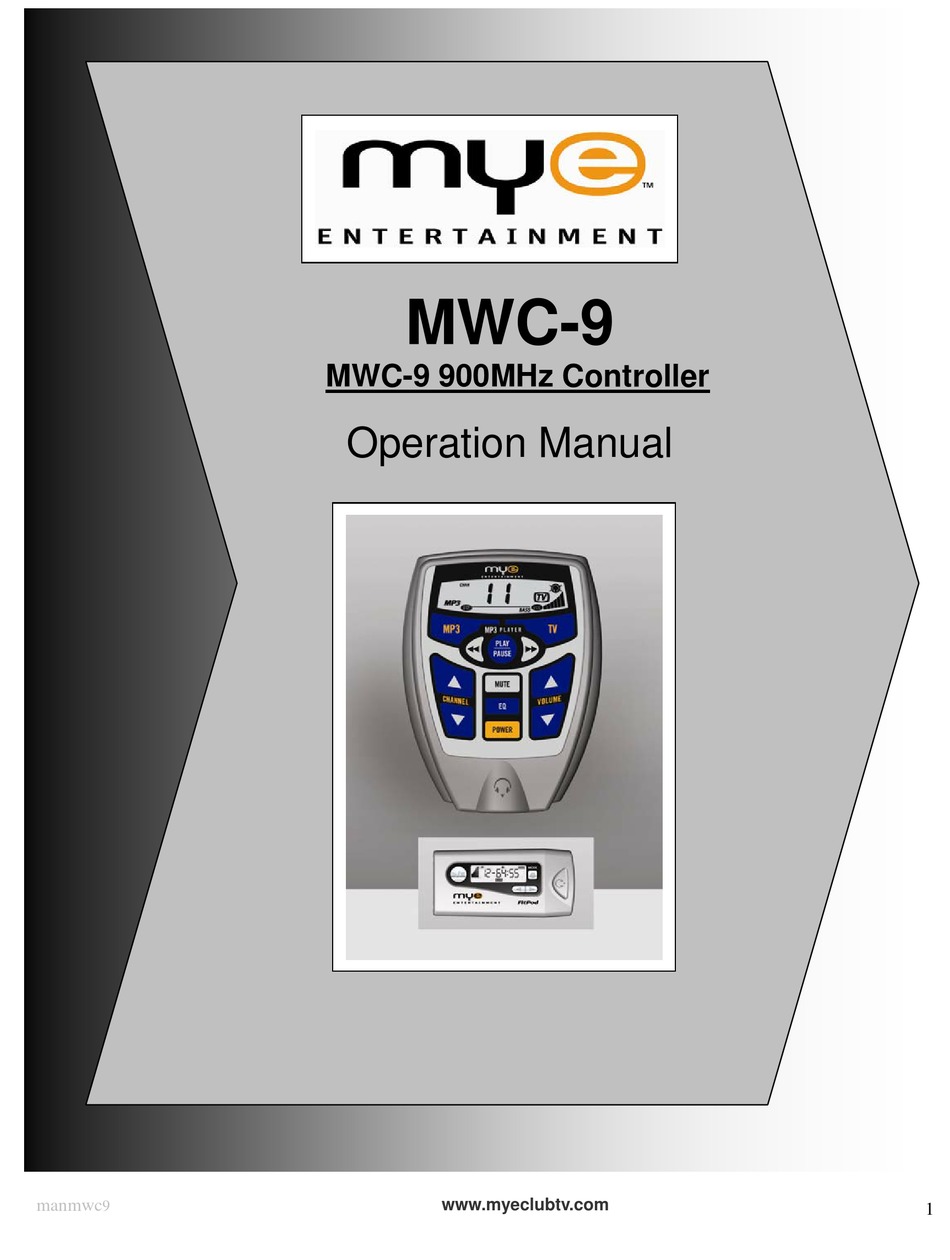

- Page 1 MWC-9 Operation Manual MWC-9 900MHz Controller Operation Manual manmwc www.myeclubtv.com...
-
Page 2: Table Of Contents
CONTENTS FCC Compliance Statement…………………..…………. Canada Compliance Statement………………………….. Specifications………………………………………….… Controller Orientation (Front / Rear)…………………… Keypad – Key Identification………………………….… Main Features…………………………………………… Display and Icon Identification…………….…………… Programming - Near / Far Reception Setting…………… Programming the Receiver Controller (Auto Programming)… 7 Programming the Receiver Controller (Manual Programming) 7 Attaching the Controller…………………………………... -
Page 3: Fcc Compliance Statement
(2) This device must accept any interference received, including interference that may cause undesired operation. Product Description The MYE MWC-9 Receiver allows the user to watch and listen to any TV or other source connected to a 900MHz Transmitter. The user may also listen to the optional MYE FitP3 Music and Podcast Player when docked. -
Page 4: Controller Orientation (Front / Rear)
CONTROLLER FRONT VIEW LCD DISPLAY CONTROLLER KEYPAD HEADPHONE JACK ICON HEADPHONE JACK FITP3 PLAYER DOCK CONTROLLER REAR VIEW UPPER LATCH UPPER LATCH LOCKING SCREW LOWER LATCH LOCKING SCREW LOWER LATCH... -
Page 5: Keypad - Key Identification
MYE Wireless 900MHz TV Receiver Model MWC-9 The MYE MWC-9 Receiver allows the user to watch and listen to any TV or other source connected to a 900MHz Transmitter. The user may also listen to the optional MYE FitP3 Music and Podcast Player when docked. -
Page 6: Display And Icon Identification
INDICATOR Programming - Far/Near Reception This feature provides the ability to set the reception sensitivity of each MYE MWC-9 receiver depending on the proximity between the receiver and transmitter. Far Mode: (Default): The far mode is the most widely used and will accommodate the majority of installations. -
Page 7: Programming The Receiver Controller (Auto Programming)
Programming The MYE MWC-9 receiver must be programmed to detect and lock in the MYE Entertainment transmitters as well as the other brands of transmitters listed below. The MWC-9 features both “auto” and “manual” program modes. In the auto mode the MWC-9 will automatically search for and program in your transmitters. -
Page 8: Attaching The Controller
5. Plug the power supply to an AC outlet or the CSAFE cable to an active CSAFE port. 6. Rotate the MYE Controller so it is vertical and position on the rear mounting cup 7. Lock the Controller in place by securing both metal clamps and tightening screws. -
Page 9: Intellijack
1. Loosen the two screws evenly on the bottom of the IntelliJack module and remove. 2. Carefully insert new IntelliJack module without bending contact pins. 3. Reset the Icon. Turn MYE Controller OFF then press and hold the “Power” button for 3-4 seconds. When the icon appears again release the Power button. -
Page 10: Special Features
Special Features: FitP3 Player Feature- The MWC-9 controller has the ability to receive the MYE Entertainment FitP3 Player. Insert the FitP3 Player into the FitP3 docking port. When the FitP3 Player is docked the MP3 Icon illuminates in the LCD Window The audio from the Controller, regardless of source will be directed to the headphone jack of the FitP3 Player. -
Page 11: Warranty Information
NORMAL WEAR AND TEAR, CONSUMABLES AND COSMETIC ITEMS INCLUDING BUT NOT LIMITED TO LABELS. REPAIRS REFORMED ON MYE PRODUCTS MISSING A SERIAL NUMBER OR WITH A SERIAL TAG THAT HAS BEEN ALTERED, REATTACHED OR DEFACED. SERVICE CALLS TO CORRECT INSTALLATION OF THE PRODUCT OR INSTRUCT OWNERS ON HOW TO USE THE PRODUCT. - Page 12 THOSE WARRANTIES THEREAFTER. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. MYE ENTERTAINMENT ALSO HEREBY DISCLAIMS AND EXCLUDES ALL OTHER OBLIGATIONS OR LIABILITIES, EXPRESS OR IMPLIED, ARISING BY LAW...
