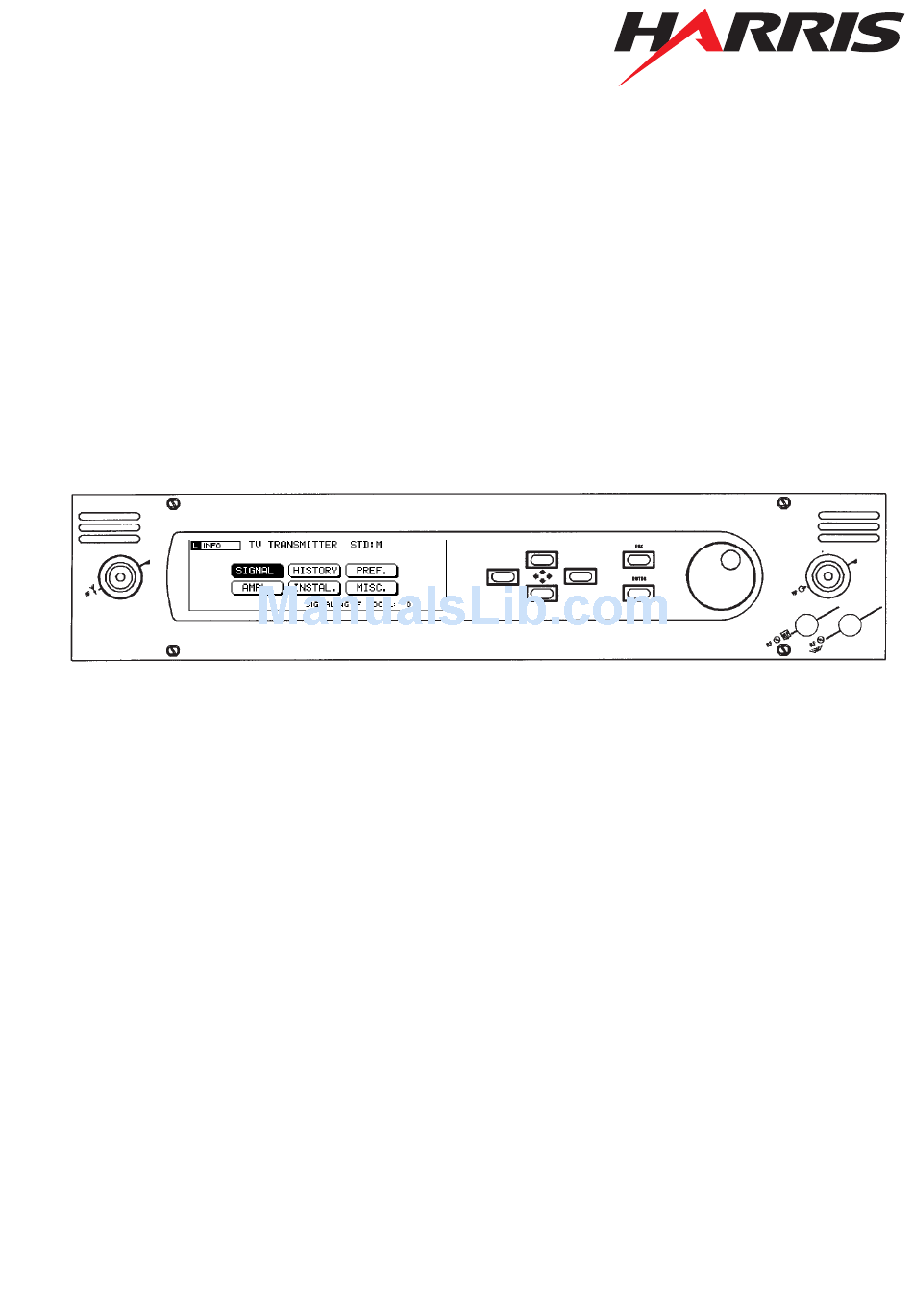

  • Page 1 Operator Manual TVS-D 660 LC-Display Version 2.1 Print: November 2004 071571441 ( BN_5714E )
  • Page 2: Table Of Contents

    Sound Unit Menu / Preemphasis ......2 - 19 Operator manual 0 - 1 TVS-D 660 LC-Display...
  • Page 3 MISCELLANEOUS Menu / UNITS ......2 - 40 Operator manual TVS-D 660 LC-Display 0 - 2...
  • Page 4 Information ........3 - 5 Operator manual 0 - 3 TVS-D 660 LC-Display...
  • Page 5: Introduction

    Introduction Introduction Operator manual TVS-D 660 LC-Display 1 - 1...
  • Page 6: General Notes

    This manual contains information protected by copyright. All rights reserved. No part of this manual may be photocopied, otherwise reproduced or translated into another language without the prior written consent of Harris. ATTENTION: Take this manual with you whenever you are going to perform any maintenance work.
  • Page 7: Information On How To Use This Manual

    Introduction Information on How to Use This Manual This operator manual and the operating manual TVS-D 660 should be used side by side, as the information in both manuals is interdependent. NOTE: All necessary settings for the specific transmitter position have already been entered in the factory.
  • Page 8: Service Center

    Introduction Service Center Harris Broadcast Systems Europe Tel. +43-(0)5522/9011 2285 Customer Care Center E-fax: 001 321 674 - 2591 Oberer Paspelsweg 6-8 Email: support.europe@harris.com. A-6830 RANKWEIL-BREDERIS Operator manual 1 - 4 TVS-D 660 LC-Display...
  • Page 9: Menu Operation

    Menu Operation Menu Operation Operator manual TVS-D 660 LC-Display 2 - 5...
  • Page 10: Menu Tree

    Menu Operation Menu Tree Operator manual 2 - 6 TVS-D 660 LC-Display...
  • Page 11: Home Menu

    Change to the ACCESS submenu in the MISCELLANEOUS menu to activate/deactivate the MONITORING mode. The active operation mode is indicated by the LC-display, which will change from L (local / local with signalling “loc sig”) to R (remote) or M (monitoring). Operator manual TVS-D 660 LC-Display 2 - 7...
  • Page 12 Max. 7 entries are listed in the record. The indication (e.g. WARNING) on the LCD refers to the message type with the highest priority - errors rank above warnings and other information. Operator manual 2 - 8 TVS-D 660 LC-Display...
  • Page 13: Signal Processing Menu

    5MHz, 10MHz oscillator) FREQ. Indication of the RF vision carrier frequency RATED RF LEVEL Indication of the rated RF output level RF-OUT Indication of the deviation from the rated RF-level in dB Operator manual TVS-D 660 LC-Display 2 - 9...
  • Page 14: Btsc Sound Unit Menu

    DEVIATION LIMITER Selection for the deviation limiter - the deviation limit is at 120 kHz (OFF / ON) LIMITER ACTIVE Indication whether the deviation limiter has responded or not (YES / NO) Operator manual 2 - 10 TVS-D 660 LC-Display...
  • Page 15: Sound Unit Menu / Precorrection

    (OFF / ON) - reduces distortions and is defined with the settings below. DELAY FACTOR Defines the delay factor for the vision-sound crossmodulation correction GAIN FACTOR Defines the gain factor for the vision-sound crossmodulation correction Operator manual TVS-D 660 LC-Display 2 - 11...
  • Page 16: Audio Sound Unit Menu (Fm Mono)

    Setting of the AF gain for the sound input in the range of -9.9 ... + 6 dB DETECTOR DECAY Defines the speed at which the indication bar returns to the zero position(fast/slow). Operator manual 2 - 12 TVS-D 660 LC-Display...
  • Page 17: Sound Unit Menu / Preemphasis

    Parameter Remark VISION-SOUND CROSSMOD. / Selection (OFF / ON) CORRECTOR DELAY FACTOR Defines the delay factor for the vision-sound crossmodulation correction GAIN FACTOR Defines the gain factor for the vision-sound crossmodulation correction Operator manual TVS-D 660 LC-Display 2 - 13...
  • Page 18: Dual Sound Unit Menu

    (Smiley / Weepy) Sound Unit Menu / Switch Parameter Remark THE AF SOURCE SELECTION Depending on the videosetting, the FOLLOWS VIDEO transmitter switches from MAIN sound to AUX sound and vice versa. Operator manual 2 - 14 TVS-D 660 LC-Display...
  • Page 19: Sound Unit Menu / Af Gain

    (sound carrier 5.742 MHz relative to the vision carrier) SND. CARRIER 1 LEVEL Indication of the sound carrier 1 level in dB - relative to the peak sync of the vision carrier Operator manual TVS-D 660 LC-Display 2 - 15...
  • Page 20: Sound Unit Menu / Precorrection

    Parameter Remark VISION-SOUND CROSSMOD. / Selection (OFF / ON) CORRECTOR DELAY FACTOR Defines the delay factor for the vision-sound crossmodulation correction GAIN FACTOR Defines the gain factor for the vision-sound crossmodulation correction Operator manual 2 - 16 TVS-D 660 LC-Display...
  • Page 21: Nicam Sound Unit Menu

    M1 / L Level in dBu ( 0 dBu entspricht 0.775 VRMS ) NICAM GAIN SND2 Setting of the NICAM gain for the sound 2 input in the range of -9.9 ... + 6 dB Operator manual TVS-D 660 LC-Display 2 - 17...
  • Page 22: Sound Unit Menu / Nicam Encoder

    Setting of the AF gain for the sound input in the range of -9.9 ... + 6 dB DETECTOR DECAY Defines the speed at which the indication bar returns to the zero position(fast/slow). Operator manual 2 - 18 TVS-D 660 LC-Display...
  • Page 23: Sound Unit Menu / Precorrection

    Parameter Remark VISION-SOUND CROSSMOD. / Selection (OFF / ON) CORRECTOR DELAY FACTOR Defines the delay factor for the vision-sound crossmodulation correction GAIN FACTOR Defines the gain factor for the vision-sound crossmodulation correction Operator manual TVS-D 660 LC-Display 2 - 19...
  • Page 24: Vision Unit Menu

    SYN. LEV. Indication of the sync level in mV RES. CAR. Indication of the residual carrier in % Indication of the VF control mode (manual gain control MGC, automatic gain control AGC) Operator manual 2 - 20 TVS-D 660 LC-Display...
  • Page 25: Vision Unit Menu / Switch

    MAX. SWITCH COUNTER: Defines how many switch-overs are allowed. ACT. WAIT FOR SWITCH-OVER: Elapsed time ACT. SWITCH COUNTER: Number of performed automatic switchings CLEAR ACTUALS: Pressing the button will clear the present values. Operator manual TVS-D 660 LC-Display 2 - 21...
  • Page 26: Vision Unit Menu / Vf Gain

    Setting of the white limiter threshold (relative to peak sync of the vision-carrier) WHITE LIMITER ACTIVE Indication of the activity of the white limiter (YES / NO) SYNC REGENERATION Switch for the sync regeneration (OFF / Operator manual 2 - 22 TVS-D 660 LC-Display...
  • Page 27: Vision Unit Menu / Precorrection (Group Delay)

    LINEAR PRECORRECTION / CHR. LUM. Setting of the chroma luminance delay in DELAY the range of -16 … + 15.5 ns Figure: Linear Precorrection with Filter Figure: Linear Precorrection with Filter Type 1 Type 2 Operator manual TVS-D 660 LC-Display 2 - 23...
  • Page 28 Menu Operation Figure: Linear Precorrection with Figure: Linear Precorrection with FilterType 3 FilterType 4 Operator manual 2 - 24 TVS-D 660 LC-Display...
  • Page 29: Vision Unit Menu / Precorrection (Non-Linear)

    ±3dB AM - PM Setting of the AM to PM precorrection values in the range of ±18° PRESETS For restoring default or saved values (overriding manual settings)Selection load, save, clear presets Operator manual TVS-D 660 LC-Display 2 - 25...
  • Page 30: Ref / Lo Unit Menu

    Menu Operation REF / LO UNIT Menu With GPS Without GPS Operator manual 2 - 26 TVS-D 660 LC-Display...
  • Page 31: Ref / Lo Unit Menu / General

    Indication of the 1 pps external signal (Smiley / Weepy) 1 PPS GPS Indication of the availability of the 1 pps GPS signal (Smiley / Weepy) ACT. PPS SOURCE Indication of the used pps source Operator manual TVS-D 660 LC-Display 2 - 27...
  • Page 32: Ref/Lo Unit Menu / 2Nd Switch

    Input of the guard interval (5 - 50%) REF/LO UNIT Menu / DSM Parameter Remark CLOCK FROM IQE Indication (Smiley / Weepy) REF/LO UNIT Menu / PRECORRECTION Parameter Remark CLOCK FROM FAB Indication (Smiley / Weepy) Operator manual 2 - 28 TVS-D 660 LC-Display...
  • Page 33: Ref/Lo Unit / Up-Converter

    (470 - 862 MHz for Band IV/V) (174 - 230 MHz for Band III) COARSE OFFSET Input of the coarse offset (-249 kHz - 249 kHz) FINE OFFSET Input of the fine offset (-999 - 999 Hz) Operator manual TVS-D 660 LC-Display 2 - 29...
  • Page 34: Rf-Menu

    Indication of the deviation from the rated RF-level REFL. Indication of the reflection in dB Indication of the gain control (MGC / AGC) AMP MODE Indication of the amplifier mode (ON / OFF) Operator manual 2 - 30 TVS-D 660 LC-Display...
  • Page 35: Rf-Unit Menu / Up-Converter

    Indication of the nominal output power RACKPHASE RCU x Input of the signal phase for the amplifier racks (±40°). Only for RCU-systems. RF-UNIT Menu / OUTPUT FILTER Parameter Remark VISION CARRIER FREQUENCY Indication of the adjusted frequency Operator manual TVS-D 660 LC-Display 2 - 31...
  • Page 36: Rf-Unit Menu / Directional Coupler Or Bbv

    Input of the reflection calibration value (-5 ... 5 dB), not visible for 6 HU BBV REFL. ALARM THRESH. Input of the reflection alarm threshold (-24 ..-13 dB), not visible for 6 HU BBV Operator manual 2 - 32 TVS-D 660 LC-Display...
  • Page 37: History Menu

    The PREFERENCES menu is meant for storing and loading preferences. Parameter Remark LOAD This key permits to re-load settings that were saved before. SAVE All settings of the installation can be saved. Operator manual TVS-D 660 LC-Display 2 - 33...
  • Page 38: Ampl. Menu

    - POWER OFF TO RETRY ON handling menu the response of the - MAX. WARNING COUNTER TV-transmitter to incoming warnings of - CLR. TIME FOR COUNTER additional amplifiers can be defined. - CLEAR ACTUALS Operator manual 2 - 34 TVS-D 660 LC-Display...
  • Page 39: Instal. Menu

    Number of amplifier racks (only with RCU) AGC AT Selection of the point where the output power is controlled (output / exciter) BACKPORCH SYNC DELAY Input of the backporch synchronization delay in ns Operator manual TVS-D 660 LC-Display 2 - 35...
  • Page 40 BTSC / DUAL / NICAM) BLOWER CONTROL Selection of the blower control (present / absent) INTEGRATED UPS Selection of the UPS (absent / present) COM UNIT Selection of the communication unit (present / absent) Operator manual 2 - 36 TVS-D 660 LC-Display...
  • Page 41: Miscellaneous Menu

    This menu contains information about the input voltage, the supply voltages +5V, +12V, -12V, amplifier 1 supply voltage, amplifier 2 supply voltage, amplifier current 1 ... 4 as well as information about the acceptable ranges. Operator manual TVS-D 660 LC-Display 2 - 37...
  • Page 42: Miscellaneous Menu / Module Temperatures

    IF-unit, IF-precorrection, frequency processing (FAB), broadband amplifier 1 … 4. MISCELLANEOUS Menu / SPARE OPERATIONS (ONLY FOR SPARE SYSTEMS) SWITCHOVER EVENTS: Set the events and the delay time for a swichover, Operator manual 2 - 38 TVS-D 660 LC-Display...
  • Page 43: Miscellaneous Menu / System Data

    The operation log window contains information about specific events with date / time information. The COLD RESET button restores the default settings - readjustment of the equipment is necessary. The COM RESET button causes the COM unit to restart. Operator manual TVS-D 660 LC-Display 2 - 39...
  • Page 44: Miscellaneous Menu / Units

    COM 660 Unit is absent, it is possible to enter parameters for the RS232 interface and the modem operation (Modem Setup, Modem Initialise or Modem Test). MISCELLANEOUS Menu / DATA INTERFACE (with COM-Unit) Operator manual 2 - 40 TVS-D 660 LC-Display...
  • Page 45 (OFF/ SIGNAL = Relay ON / CONTROL. PARALLEL INTERFACE Relay and digital inputs ON) OFF..Bitbus is off SIGNAL...only GET COMMANDS CONTROL..GET and SET BITBUS INTERFACE COMMANDS Slave addr. of LPS Bitbus Baudrate of LPS Operator manual TVS-D 660 LC-Display 2 - 41...
  • Page 46: Miscellaneous Menu / Setup Modem

    Setting the phone number for phone 1 TYP 1: Selection of the message type (ASCII / SMS) TEL.NR. 2: Enter the phone number for phone 2 TYP 2: Selection of the message type (ASCII / SMS) Operator manual 2 - 42 TVS-D 660 LC-Display...
  • Page 47: Appendix

    Appendix Appendix Operator manual TVS-D 660 LC-Display 3 - 1...
  • Page 48: Errors, Warnings And Other Information

    I2C-bus error - a module Pull out one module after cannot be accessed. the other (except the CPU and the POWER SUPPLY) and check when the message disappears - change the faulty module. Operator manual 3 - 2 TVS-D 660 LC-Display...
  • Page 49 (the OCXO control frequency is out of range) RF OUTP.LEV.< RF output level is below the Check the RF-path. ALARMTHRES. adjusted alarm threshold. Operator manual TVS-D 660 LC-Display 3 - 3...
  • Page 50: Warnings

    GAIN AT MAXIMUM ! The output gain is at the maximum. GAIN AT MINIMUM ! The output gain is at the minimum. LOW BATTERY Battery fault. Change the battery of the CPU. Operator manual 3 - 4 TVS-D 660 LC-Display...
  • Page 51: Information

    10 MHZ OSC. TEMPERATURE LOW 10 MHz oscillator is heating up. AMPL. MODE SERVICE SELECTED —- AMPLIFIER MODE OFF SELECTED —- AMPL. MODE ON SELECTED —- COLD RESET DONE A cold reset was performed. Operator manual TVS-D 660 LC-Display 3 - 5...
  • Page 52 The Switchover Control (SOC) is CONNECTED connected to the LPS WHITELIMITER OFF The white limiter has been turned off. Check the settings in the vision menu. WHITE LIMITER RESPONDING The white limiter has responded. Operator manual 3 - 6 TVS-D 660 LC-Display...
