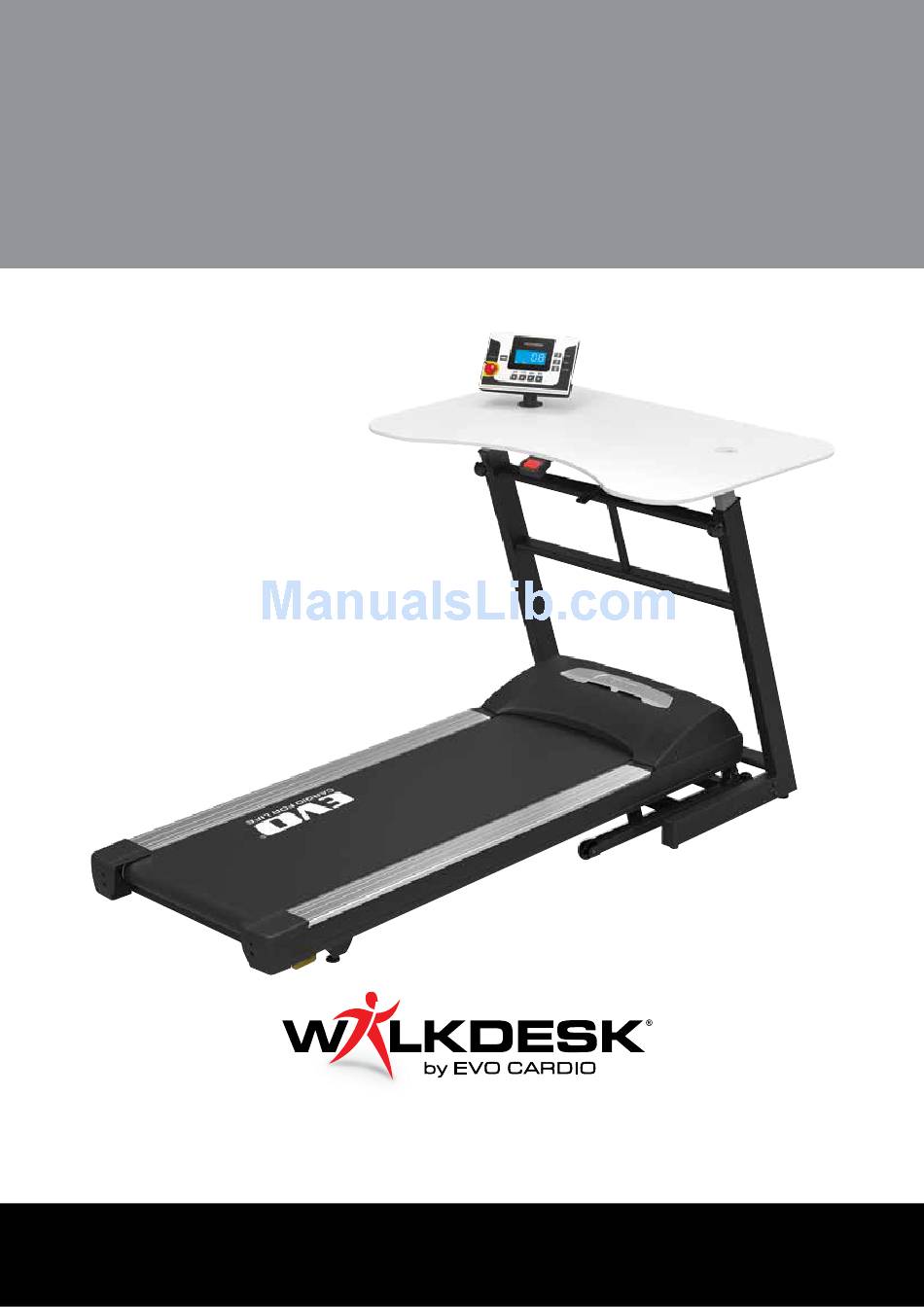

Walkdesk WTd200
owner's Manual
Please CareFullY reaD THIs enTIre Manual BeFore oPeraTInG Your new ellIPTICal
1
stadsheide 3 | 3500 Hasselt | Belgium | T +32 11 76 12 70
info@bodysolid-europe.com | www.bodysolid-europe.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WTD200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Walkdesk WTD200

  • Page 1 Walkdesk WTd200 owner’s Manual Please CareFullY reaD THIs enTIre Manual BeFore oPeraTInG Your new ellIPTICal stadsheide 3 | 3500 Hasselt | Belgium | T +32 11 76 12 70 info@bodysolid-europe.com | www.bodysolid-europe.com...
  • Page 2: Table Of Contents

    TaBle OF CONTeNTs Important safety Instructions Important electrical Instructions Grounding Instructions Important operation Instructions Desk assembly Instructions Folding/Transport Instructions Console operation General Maintenance service Checklist – Diagnosis guide exploded View Diagram/Parts list aTTenTIon This treadmill is intended for residential use only and is warranted for this application. any other application voids this warranty in its entirety.
  • Page 3: Important Safety Instructions

    IMPORTaNT saFeTY INsTRUCTIONs WARNING - read all instructions before using this appliance. DANGER - To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 230~volt, 10-amp grounded outlet with only the treadmill plugged into the circuit.
  • Page 4: Important Electrical Instructions

    IMPORTaNT eleCTRICal INsTRUCTIONs WARNING NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. as with any appliance with a large motor, the GFCI will trip often. route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels.
  • Page 5: Important Operation Instructions

    IMPORTaNT OPeRaTION INsTRUCTIONs  NEVER operate this treadmill without reading and completely understanding the results of any operational change you request from the computer.  understand that changes in speed and incline do not occur immediately. set your desired work level on the computer console and release the adjustment key.
  • Page 6: Desk Assembly Instructions

    DESK asseMBlY INsTRUCTIONs !!aTTenTIon: IMPorTanT unPaCKInG InsTruCTIons. Please reaD BeFore unPaCKInG Your FolDInG TreaDMIll!! serious injury could occur if this folding treadmill is not unpacked properly. There is a Velcro strap installed around the treadmill base that prevents the treadmill from unfolding accidentally during shipping.
  • Page 7 Connect Fixed upright assembly(113) with Frame Base Tube(l.r)(116) and use l allen wrench (141) to tighten 16 pcs of 3/8” × unC16 × 1/2”_Button Head socket Bolts (135). HARDWARE #135. 3/8” × unC16 × 1/2” Button Head socket Bolt (16 pcs)
  • Page 8 lay Deck Board (120) on sliding upright assembly (114) with two nuts(121) to secure with Desk Board stand (115). secure Desk Board stand (115) on sliding upright assembly(114) by using open end wrench (140) and allen wrench (141) to tighten 2pcs of 3/8” × unC16 × 1-3/4”_Button Head socket Bolts (136) and 2pcs of 3/8”...
  • Page 9 slide Computer Cable(upper)(46) (DT520-YT55) use Phillips Head screw Driver (139) to tighten 4 pcs of M5 × P0.8 × 12l_Phillips Head screw (112) to secure Console assembly(66) DT520-YT55) on Console Bracket assembly(106). 2. locate Console Bracket assembly(106) in the right Desk Board(120), to secure Console Bracket assembly(106) on Brake Tension Knob(107) HARDWARE #112.
  • Page 10 use allen wrench (142) and open end wrench (140) to tighten four 5/16”×unC18×2” Button Head socket Bolts(70), together with four 5/16”×unC18×7T(mm) nyloc nuts (79) for two limit Bracket(r.l) (118.119) through both Frame Base Tubes (116). HARDWARE #70. 5/16”×unC18×2” #79. 5/16” ×unC18× 7T Button Head socket Bolt (4 pcs) nyloc nut (4 pcs)
  • Page 11: Folding/Transport Instructions

    FOldING INsTRUCTIONs Do not attempt to move the unit unless it is in the folded and locked position. Be sure the power cord is secured to avoid possible damage. use both handrails to maneuver the unit to the desired position. ...
  • Page 12: Console Operation

    OPeRaTION OF YOUR CONSOLE GeTTInG FaMIlIar wITH THe ConTrol Panel FunCTIon BuTTon FUNCTION BUTTON INITIal dIsPlaY when the power is turned on, main window will bright and show all parameter, then show the current software version, how many hours the treadmill has been in use and how many Kilometers (or Miles if the treadmill is set to imperial readings), above each data will be shown for 2 seconds in order, the treadmill has gone.
  • Page 13 FUNCTION BUTTON ENTER: Press “enTer” button to set the parameter of count down. when the belt stop running which press and hold this button for 3 seconds to reset all data which is the parameter value of accumulating. START/STOP: Press “sT/sP” button to control start or stop training. SPEED+: Press “FasT’...
  • Page 14: To Select A Program

    To select a Program: P1 ~ P5 (PRESET PROGRAM) Step 1. Press “ P (program) ” button to choose P0 (manual), P1 ~ P5, each program has a preset speed value. Step 2. Press ENTER button to set the count down time from 10:00 to 99:00, preset value is 20:00.
  • Page 15 P1-P5: PeRCeNT OF sPeed KPH------------------------------------------------------------------------------------------------------- Prog MPH------------------------------------------------------------------------------------------------------- Prog P3 SPEED PROGRAM P0 SPEED PROGRAM P4 SPEED PROGRAM P1 SPEED PROGRAM P5 SPEED PROGRAM P2 SPEED PROGRAM...
  • Page 16: General Maintenance

    GeNeRal MaINTeNaNCe BelT/deCk Your treadmill uses a very high-efficient low-friction deck. Performance is maximized when the deck is kept as clean as possible. use a soft, damp cloth, or paper towel, wipe the edge of the belt and the area between the belt edge and the frame.
  • Page 17: Treadbelt Tracking Adjustment

    TReadBelT TRaCkING adJUsTMeNT The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for some belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if during use the belt continues to move toward one side, adjustments are necessary.
  • Page 18 BelT/deCk lUBRICaTION PROCedURe BELT/DECK LUBRICATION PROCEDURE Do not lubricate with other than approved lubricant. Your treadmill Do not lubricate with other than approved lubricant. Your comes with one tube of lubricant and extra tubes can be ordered treadmill comes with one tube of lubricant and extra tubes can directly from your authorized dealer.
  • Page 19: Service Checklist - Diagnosis Guide

    seRVICe CHeCklIsT - dIaGNOsIs GUIde Before contacting your dealer for aid, please review the following information. It may save you both time and expense. This list includes common problems that may not be covered under the treadmill’s warranty. PROBleM sOlUTION/CaUse Display does not light 1.
  • Page 20: Exploded View Diagram/Parts List

    eXPlOded VIeW dIaGRaM EXPLODED VIEW DIAGRAM...
  • Page 21: Parts List

    PaRTs lIsT PARTS LIST Dwg # Part description Main Frame Frame Base Seat Slider Outer Slider Link Link Shaft Shaft Bushing Fastening Bracket Clevis Pin Fastening Bushing Dual Torsion-Spring Release Lever Slide Wheel , Urethane ChenChin Torsion-Spring Cylinder Drive Belt Front Roller W/Pulley Rear Roller Running Deck...
  • Page 22 Part description Aluminum Foot Rail Ø5.5 × 27 × 60 × 1T× 2.5H_Concave Washer Controller Back Plate Top Motor Cover Plate Front Motor Cover Power Cord Console assembly Bottom Frame Cover 3/8" × UNC16 × 1-1/2"_Hex Head Bolt 3/8" × UNC16 × 1-1/4"_Hex Head Bolt 5/16"...
  • Page 23 Part description Console Bracket Assembly Brake Tension Knob M8_Bushing Washer 107 × 60 × 1m/m_Foam Pad Ø49 × 1m/m_Foam Pad M5 × 12L_Phillips Head Screw Fixed Upright Assembly Sliding Upright Assembly Desk Board Stand Frame Base Tube(L.R) Gas Cylinder Limit Bracket(Right)-(3.0T) Limit Bracket(Left)-(3.0T) Desk Board Brake Tension Knob + Axle...
