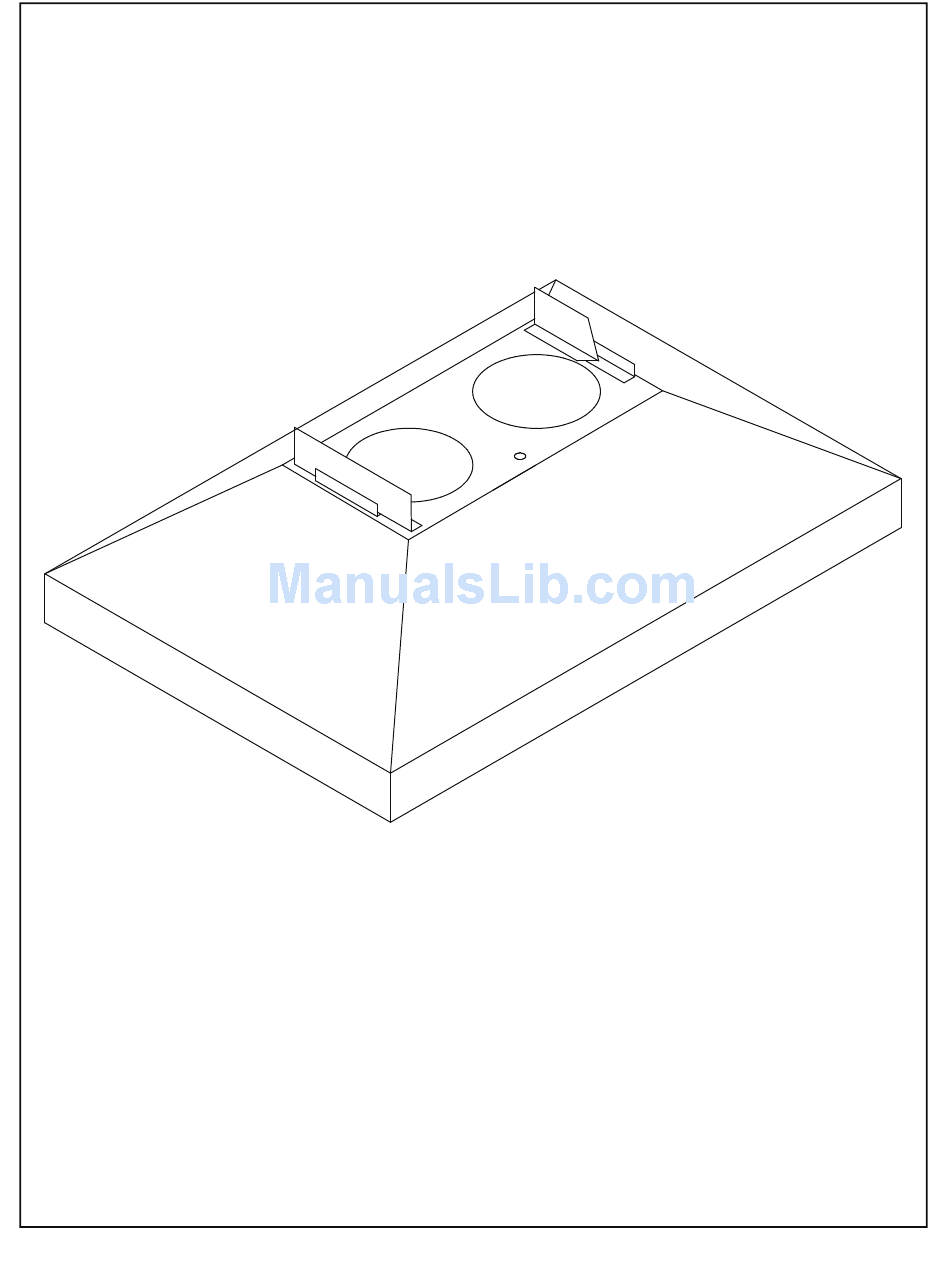

Page 1: Installation Instructions
Imperial Cal. Products, Inc. Installation Instructions & Warranty Information 425 Apollo Street Brea, CA 92821 www.imperialhoods.com (800) 851-4192 DO NOT THROW AWAY, PROPERTY OF THE HOME OWNER! - Page 2 Imperial Cal Products, Inc. Read Before Starting Installation! Inspect your range hood prior to installing! Any cosmetic defects must be reported to us prior to installation. Once this hood is installed, ICP will NOT accept any responsibility for any cosmetic blemishes, scratches or dents in the Canopy.
- Page 3 Imperial Cal Products, Inc. Wall Mount Installation Detail: MODELS: MODELS: MODELS: WHP1900PS1 WHP1900PS WHP1900PS1-TW WH1900PS1 WH1900PS WH1900PS1-TW WH1900PS1R WH1900PSR WH1900PS1TWR WH1900PSB WH1900PS1-TWB *(Baffle Filters) *(Baffle Filters) CAUTION: Be sure that incoming power is turned off. 1. Position the Wall Canopy on it’s back and remove the filters.
- Page 4 Imperial Cal Products, Inc. Wall Mount Installation Detail: 4. Bring conduit down and feed through 7/8” hole on top of WH1900PS 11-3/4" the canopy, at least 18” to 24” long. Be sure that the conduit hangs 4” past the bottom of the canopy.
-
Page 5: Completed Installation
Imperial Ventilation ~ Baffle Filter Installation Completed Installation INSTALLATION INSTRUCTIONS 1. Parts: 2 Baffles, 1 Grease Tray, 1 Center Panel 2. Insert Grease tray to the bottom/back of the ventilator. 3. Grease tray slides in between steel strip. 4. Take one Baffle and insert the larger side into the steel strips in the top/front of ventilator and push filter back into grease tray. - Page 6 Imperial Cal Products, Inc. To order replace parts or schedule service please call our office at (800) 851-4192 or use our website… www.imperialhoods.com. PARTS: When ordering Parts we need the following information: Model Number (not serial number) found on UL label inside hood.
- Page 7 Imperial Cal Products, Inc. Maintenance & Warranty Information This product has the simplest of cleaning requirements. To remove Baffle Filters, remove center panel by pulling panel toward the front of the hood, lift up to remove. Move filters to the center of the hood, pull baffle towards the front of the hood and lift out.
-
Page 8: Safety Instructions
SAFETY INSTRUCTIONS Read and Save These Instructions Warning: To reduce the risk of fire, electrical shock or injury to persons, observe the following: A. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
