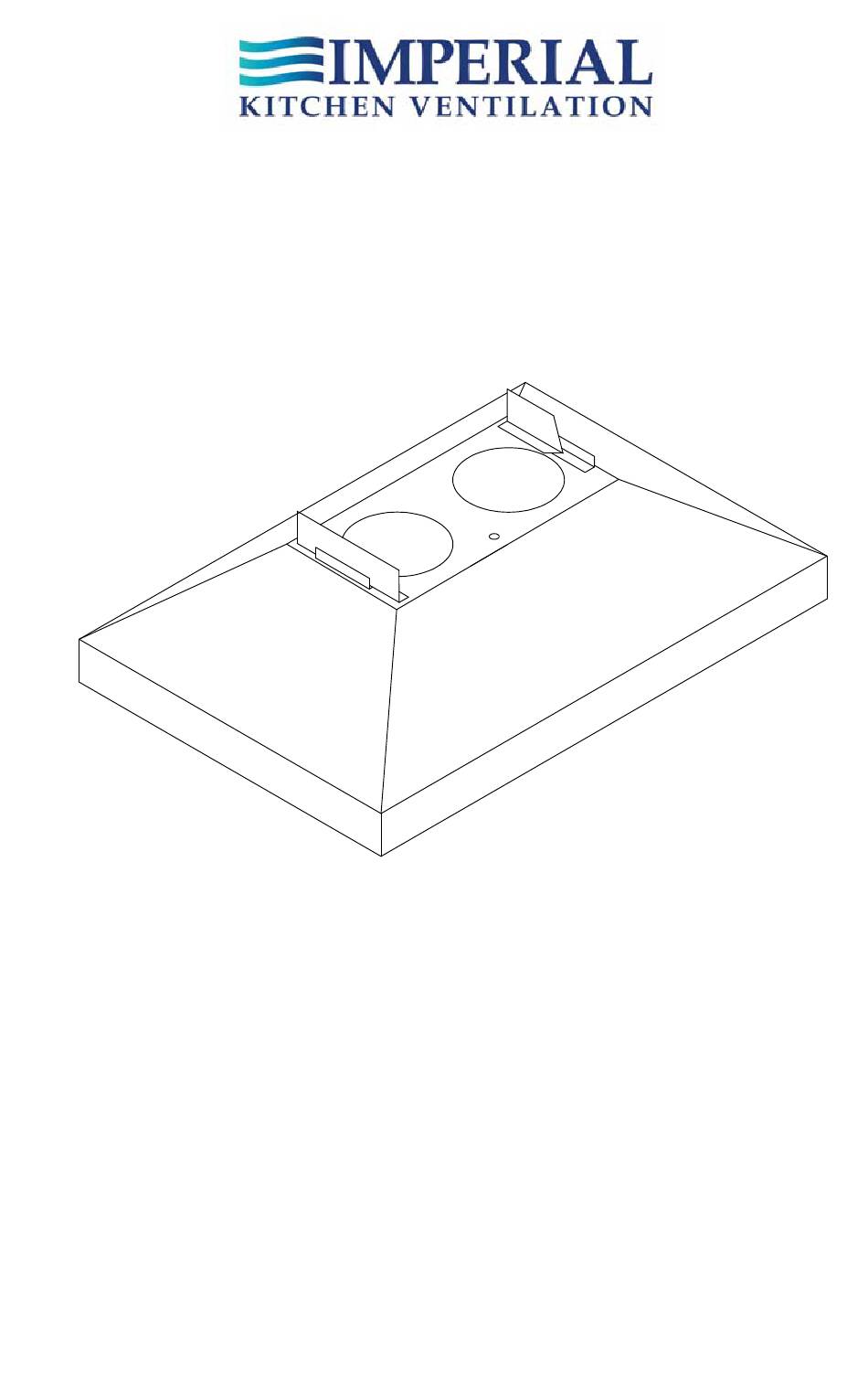

- Page 1 Slim Line—N1900 Select 10—1900-10 Installation Instructions & Warranty Information 425 Apollo Street Brea, CA 92821 www.imperialhoods.com (800) 851-4192 DO NOT THROW AWAY, PROPERTY OF THE HOME OWNER!
- Page 2 Imperial Cal Products, Inc. Read Before Starting Installation! Inspect your range hood prior to installing! Any cosmetic defects must be reported to us prior to installation. Once this hood is installed, ICP will NOT accept any responsibility for any cosmetic blemishes, scratches or dents in the Canopy.
- Page 3 Slim Line Series Installation Details: MODELS MODELS MODELS MODELS N1900T N1900BP1 N1900BP N1900PS1 N1900PS N1900SD2 CABINET: Be sure that the cabinet bottom is level, side to side and front to rear. BP & T: Cut an 8” x 8” hole in the bottom of the cabinet, 3/4” in from the rear wall and on center line.BP1: Cut an 8”...
- Page 4 Select 10 Series Installation Details: MODELS MODELS MODELS MODELS 1900T-10 1900PS1-10 1900PS-10 1900PSB-10 1900TB-10 1900PS1B-10 (B INDICATES BAFFLE FILTERS) CABINET: Be sure that the cabinet bottom is level, side to side and front to rear. BP & T: Cut an 8” x 8” hole in the bottom of the cabinet, 3/4”...
- Page 5 Installation Instructions for 1900-10 ONLY Wall Mounting application. 1. From bottom of hood, measure 10” up and draw a line. 2. Take “U” shape installation bracket and line the bottom of the bracket up with the line (center bracket left to right) install bracket using #10 x 2-1/2”...
- Page 6 Imperial Cal Products, Inc. To order replace parts or schedule service please call our office at (800) 851-4192 or use our website… www.imperialhoods.com. PARTS: When ordering Parts we need the following information: Model Number (not serial number) found on UL label inside hood.
-
Page 7: Baffle Filter Cleaning
Maintenance & Warranty Information RANGE HOOD CLEANING When cleaning a painted hood, wash it with mild, soapy water ONLY! Wipe the hood thoroughly with clean water and dry with soft cloth. When cleaning Stainless Steel use a cleaner specifically for Stainless Steel. -
Page 8: Safety Instructions
SAFETY INSTRUCTIONS Read and Save These Instructions Warning: To reduce the risk of fire, electrical shock or injury to persons, observe the following: A. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer. - Page 9 Mail warranty card to: Imperial Cal Products ATTN: Warranty Department 425 Apollo St. Brea, CA 92821 Or visit our website to complete warranty registration: www.imperialhoods.com...
