DataTale Guardian User Manual

2.5-inch encrypted
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

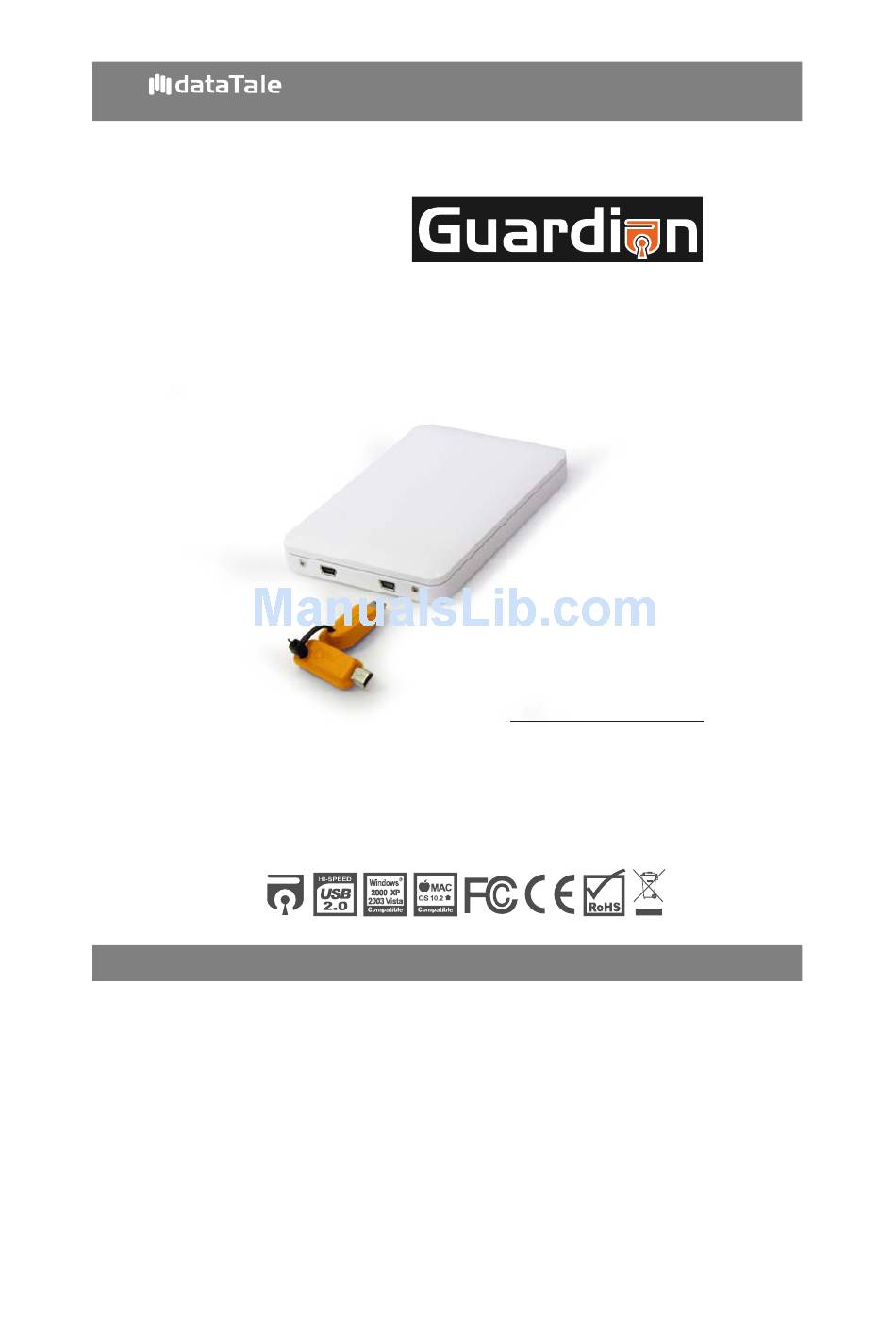

www.onnto.com.tw
dataTale
2.5-inch Encrypted HDD Enclosure
USB 2.0
AES 256‐bit
User's Manual
Copyright @ 2010 ONNTO Corporation. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Guardian and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DataTale Guardian

Summary of Contents for DataTale Guardian

  • Page 1 2.5-inch Encrypted HDD Enclosure USB 2.0 AES 256‐bit User’s Manual Copyright @ 2010 ONNTO Corporation. All rights reserved.

  • Page 2: Table Of Contents

    Table of Contents    GENERAL INFORMATION ....................... 3   COPYRIGHT..............................3   NOTICES CLASSIFICATIONS ......................3       CONTACT US..............................3     PRECAUTIONS FOR THE ENCLOSURE ..................4   GENERAL PRECAUTIONS......................... 4     ENCRYPTED ENCLOSURE PRECAUTIONS................4         INTRODUCTION..........................5  ...

  • Page 3: General Information

    GENERAL INFORMATION COPYRIGHT Copyright @ 2010 ONNTO Corporation. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of ONNTO Corporation. The product information provided in this manual is subject to change without prior notice and does not represent a commitment on behalf of the vendor.

  • Page 4: Precautions For The Enclosure

    PRECAUTIONS FOR THE ENCLOSURE GENERAL PRECAUTIONS ♦ The main circuit board of the Enclosure is susceptible to static electricity. Proper grounding is required to prevent electrical damage to the Enclosure or other connected devices, including the host computer. Always place the Enclosure on a smooth surface and avoid all dramatic movement, vibration and percussion.

  • Page 5: Introduction

    Thank you for purchasing the DataTale Guardian (EU-S10-Y). This Encrypted 2.5-inch SATA HDD Enclosure provides secure data access and convenient travel for your slim 2.5-inch hard drive. Guardian is a secure-data storage device that has adopted Enova real-time hardware AES (Advanced...

  • Page 6: System Requirement

    2.5-inch SATA compatible hard drive is required for the Enclosure. Once the HDD is formatted, the actual available storage capacity can vary depending on the selected operating environment (normally 5-10 % less). Package Contents Guardian Soft case Secure Keys USB Type A to...

  • Page 7: System Unit View

    SYSTEM UNIT VIEW Front View USB Mini‐B port Secure Key port Case Screws The hidden LED on its top cover will indicate statuses for Power, Data Access and Secure Key authentication.

  • Page 8: Assembling The Hdd Enclosure

    ASSEMBLING THE HDD ENCLOSURE To begin using the Enclosure Kit, simply install a 2.5” SATA hard drive in the Enclosure and complete the assembly steps outlined below: 1. Firmly push the lid down from front to back and open the Enclosure. After the lid is opened, the PCBA board (Printed Circuit Board) should be securely in place inside the Enclosure.
  • Page 9 3. Turn the hard drive connected to the PCBA board to its backside. Locate two larger (HDD) screws enclosed inside the package. Tighten the screws in its appropriate holes, ensuring that the hard drive and PCBA alignment is properly maintained. The smaller (Case) screws are for fastening the Enclosure’s housing and lid together.
  • Page 10 5. Place the lid on top of the Enclosure. Make sure the two copper screw holes are aligned with Front View. Firmly push the lid down from back to front and lock the lid on the Enclosure. Make sure the lid is securely in place.

  • Page 11: Connecting The Enclosure To Acomputer

    CONNECTING THE ENCLOSURE TO A COMPUTER Complete the following steps to connect the Enclosure Kit to a host computer: Please partition and format the hard drive first after assembling it inside the Enclosure Kit. Always perform partition and format functions with the Secure Key inserted.
  • Page 12 If the LED indicator is red, it is because the host cannot access the HDD and the Secure Key is not inserted. To solve the problem: First, completely unplug the USB cable to power off the Enclosure Kit. Second, insert the Secure Key.

  • Page 13: Safe Removal Of The Unit

    SAFE REMOVAL OF THE UNIT Safe removal of the Unit from the host is highly recommended. In order to safely remove your Enclosure from the host controller, you would need to eject the device on your host system. LED STATUS LED COLOR STATUS BLUE...

  • Page 14: File System Format

    I have 2 sets of Guardian HDD Enclosures. If I mixed up the Secure Keys and plug in the wrong one, what will happen? When the wrong Secure Key is inserted into the Enclosure Kit, the host will detect the Enclosure Kit as a new device until the correct Secure Key (the key which was inserted when performing partitioning and formatting at the beginning) is plugged in.

  • Page 15: Appendix: Specifications

    APPENDIX: SPECIFICATIONS Model Name EU-S10-Y USB 2.0 x 1 Interface 2.5” SATA HDD HDD Support Encryption Type AES 256-bit USB 2.0: up to 480Mbit/sec Data Transfer Speed Plastic casing System Material Power On / Access / Power Off / Key Status Indicator Insertion Bus power from host via mini USB cable...
