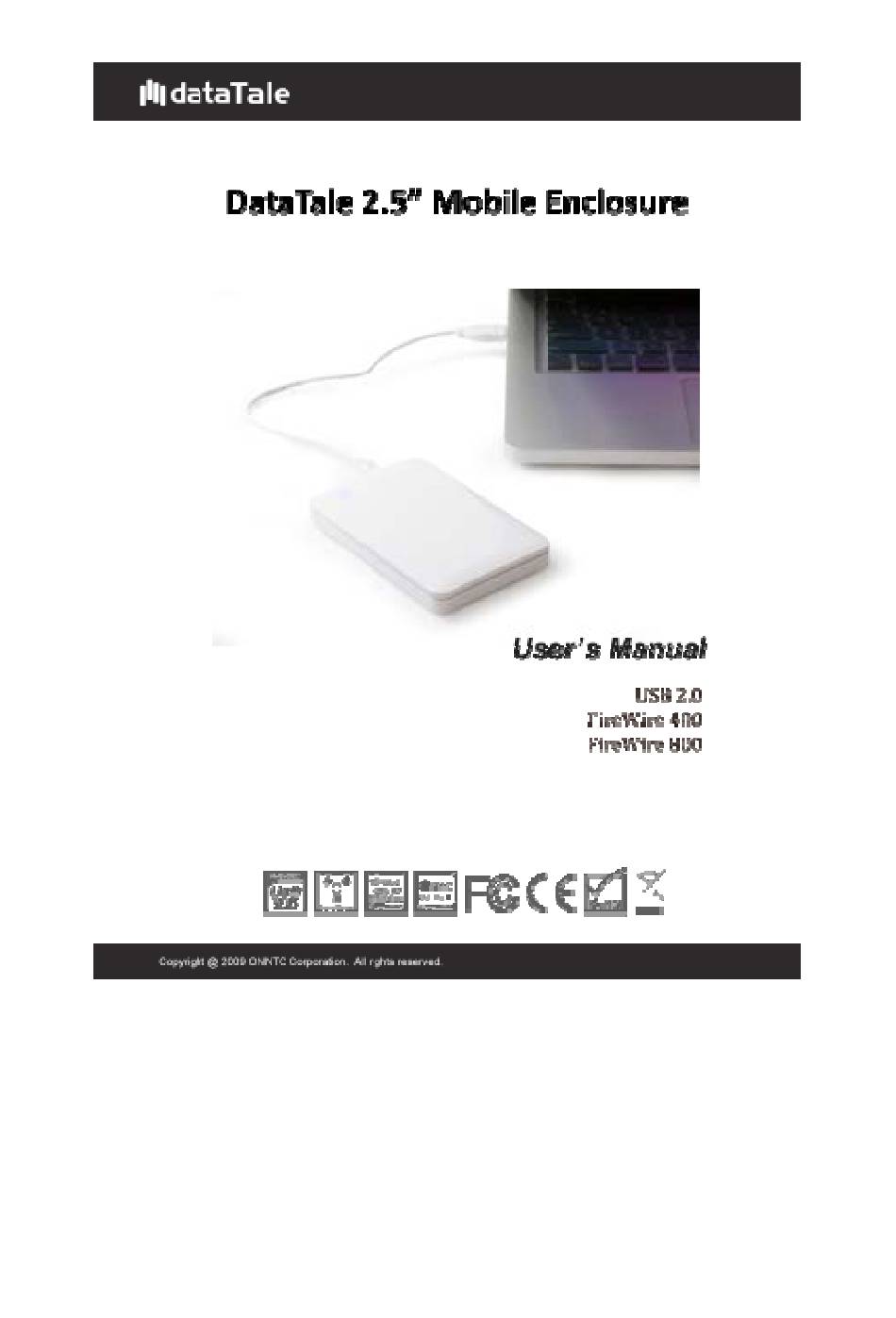

DataTale FireWire 400 User Manual

2.5" mobile enclosure
Hide thumbs Also See for FireWire 400:
Table of Contents

Advertisement

Quick Links

Download this manual
Rev. 01
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FireWire 400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DataTale FireWire 400

Summary of Contents for DataTale FireWire 400

  • Page 1 Rev. 01...

  • Page 2: Table Of Contents

    Table of Contents  GENERAL INFORMATION ....................... 3 COPYRIGHT..............................3 NOTICES CLASSIFICATIONS ......................3     CONTACT US..............................3   PRECAUTIONS FOR THE ENCLOSURE................4 INTRODUCTION..........................5 ................................5 EATURES SYSTEM REQUIREMENT ......................... 6 PC ................................... 6 MAC..................................6 ............................6 ACKAGE  ONTENTS SYSTEM UNIT VIEWS ........................7 ..............................7 RONT ...

  • Page 3: General Information

    GENERAL INFORMATION COPYRIGHT Copyright @ 2009 ONNTO Corporation. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of ONNTO Corporation. The product information provided in this manual is subject to change without prior notice and does not represent a commitment on behalf of the vendor.

  • Page 4: Precautions For The Enclosure

    PRECAUTIONS FOR THE ENCLOSURE ♦ The main circuit board of the Enclosure is susceptible to static electricity. Proper grounding is required to prevent electrical damage to the Enclosure or other connected devices, including the host computer. Always place the Enclosure on a smooth surface and avoid all dramatic movement, vibration and percussion.

  • Page 5: Introduction

    INTRODUCTION Thank you for purchasing the DataTale Mobile 2.5-inch HDD Enclosure Kit. The DataTale Mobile 2.5-inch HDD Enclosure Kit provides easy access and convenient travel for your slim 2.5-inch hard drive. Proper installation, care, and usage of the Enclosure as described in the User’s Manual will ensure trouble-free utility and prolong the life of your 2.5-inch SATA HDD Enclosure.

  • Page 6: System Requirement

    System Requirement To use the DataTale Mobile 2.5-inch HDD Enclosure Kit, the minimum system configuration in the host computer require the following: 266MHz or faster CPU (800MHz or faster CPU is required for Windows Vista) 64MB of RAM (512MB or more of RAM is required for Windows Vista) Microsoft Windows 2000, XP, 2003, or Vista One available USB 2.0, IEEE 1394a, or IEEE 1394b port (upon model)

  • Page 7: System Unit Views

    SYSTEM UNIT VIEWS Front View AU-S10 USB Mini‐B port Case Screws AT-S111 USB Mini‐B FireWire 800 FireWire 400 port Port Port Case Screws...

  • Page 8: Assembling The Sata 2.5" Hdd Enclosure

    ASSEMBLING THE SATA 2.5” HDD ENCLOSURE To begin using the DataTale Mobile 2.5” SATA HDD Enclosure Kit, simply install a 2.5” SATA hard drive in the Enclosure and complete the assembly steps outlined below: 1. Firmly push the lid down from front to back and open the Enclosure. After the lid is opened, the PCBA board (Printed Circuit Board) should be securely in place inside the Enclosure.
  • Page 9 3. Turn the hard drive connected to the PCBA board to its backside. Locate two larger HDD screws enclosed inside the package. Tighten the screws in its appropriate holes, ensuring that the hard drive and PCBA alignment is properly maintained. The smaller Case screws are for fastening the Enclosure’s housing and lid together.
  • Page 10 5. Place the lid on top of the Enclosure. Make sure the two copper screw holes are aligned with Front View. Firmly push the lid down from back to front and lock the lid on the Enclosure. Make sure the lid is securely in place.

  • Page 11: Connecting The Enclosure Kit To Acomputer

    The Enclosure should only be connected to a host computer via one interface. When using FireWire 400/800, you can “Daisy chain” and connect other computer hardware or digital devices to your Unit (such as digital video camera, another HDD, DVD writer, and much more). However, you must use the same interface in order for the “Daisy Chain”...

  • Page 12: Safe Removal Of The Unit

    SAFE REMOVAL OF THE UNIT Safe removal of the Unit from the host is highly recommended, especially when switching interfaces. In order to safely remove your Enclosure from the host controller, you would need to eject the device on your host system. EXTERNAL BOOTUP External Bootup may be required if the user has two different operating systems set up in both the host computer and the Enclosure.

  • Page 13: Q&As

    Q&As HDD Status What are the indications of HDD status, reflected by the hidden LED? When connected, the hidden LED will light up and one small part on the lid toward its Front View will become steadily blue. If the HDD is being accessed, the hidden LED at the same place will flash in blue.

  • Page 14: Appendix: Specifications

    APPENDIX: SPECIFICATIONS Model Name AU-S10 AT-S111 USB 2.0 x 1 USB 2.0 x 1, 1394a x 1, Connector 1394b x 1 HDD Support 2.5” SATA HDD 2.5” SATA HDD USB 2.0: up to 480Mbit/sec USB 2.0: up to 480Mbit/sec Data Transfer 1394a: up to 400Mbit/sec Speed 1394b: up to 800Mbit/sec...
