Summary of Contents for Clare Controls amp.14150

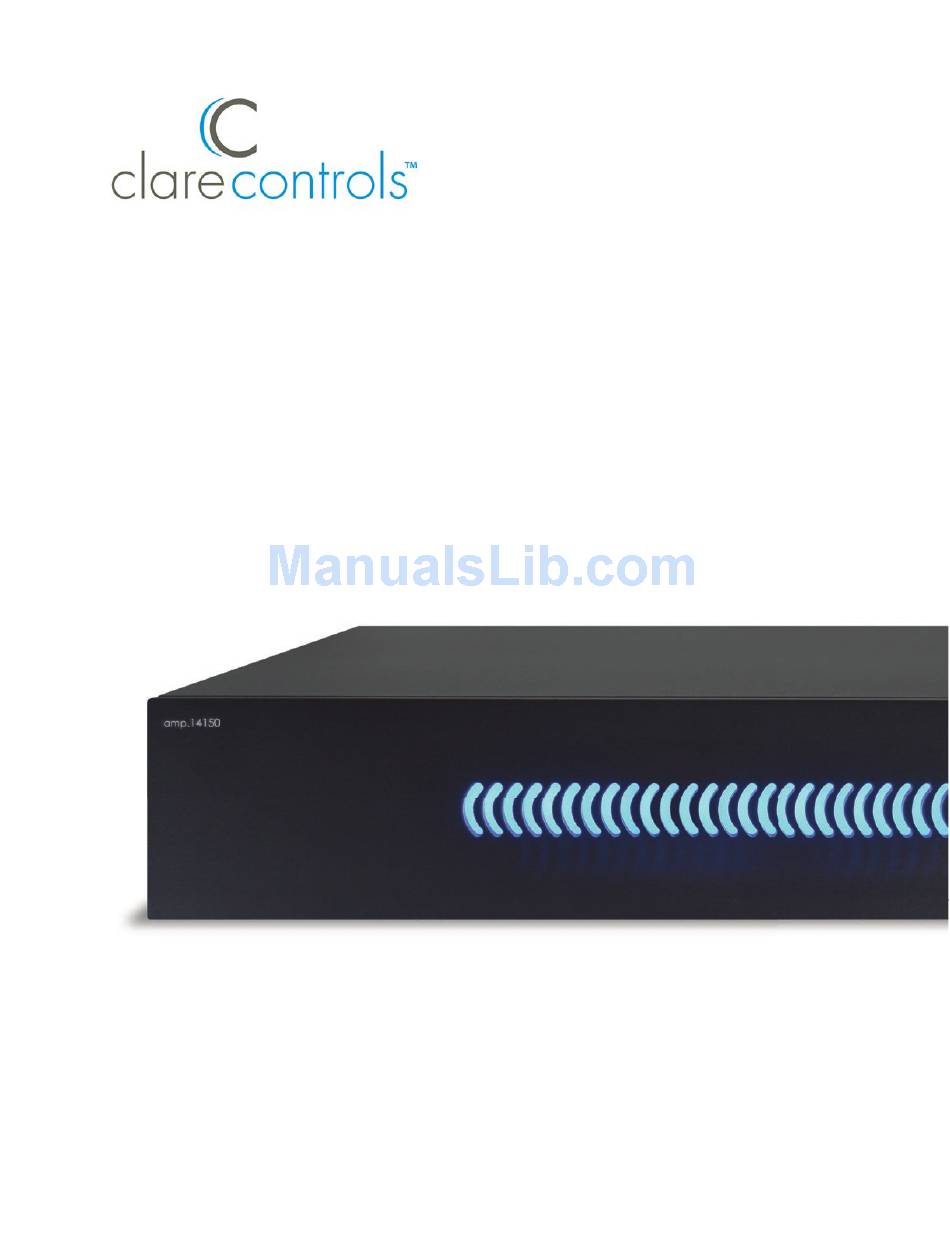

- Page 1 User Guide 14 channel premium amplifier 2014-12-693 • Rev 01...
- Page 2 Clare Controls, Inc., except where specifically permitted under U.S. and international copyright law. Trademarks The amp.14150 name is a trademark of Clare Controls, Inc. Manufacturer Clare Controls, Inc. 7519 Pennsylvania Ave., Suite 104, Sarasota, FL 34243, USA Version This document applies to amp.14150 version 01.
-
Page 3: Table Of Contents
Limitation of liability...iii Important safety instructions...iv Welcome to amp.14150...1 Features...1 Rear panel features...3 Rack mounting the amp.14150 amplifier...4 Installation – getting connected...5 Installation – setup and options...6 Global switches...6 Operations...7 Troubleshooting...8 ... -
Page 4: Important Information
• Damage caused by voltage or cycle fluctuations outside acceptable range. • Damage caused by over-current, voltage spikes, or lightning damage due to inadequate surge protection. You can contact Customer Support at http://support.clarecontrols.com. Please be ready to provide the following information. • Product model number, version, and serial number. -
Page 5: Limitation Of Liability
While every precaution has been taken during the preparation of this manual to ensure the accuracy of its contents, Clare Controls, Inc. assumes no responsibility for errors or omissions. amp.14150 User Guide... -
Page 6: Important Safety Instructions
User Guide... - Page 7 16. The MAINS plug or the appliance coupler is used as the disconnect device, and shall remain readily operable. 17. To completely disconnect this unit from the AC MAINS, disconnect the power supply cord plug from the AC receptacle amp.14150 User Guide...
- Page 8 User Guide...
-
Page 9: Welcome To Amp.14150
Welcome to amp.14150 The Clare Controls amp.14150 is a 14-channel Class D amplifier. It is a compact and efficient cool-running device housed in a 2U rack-mount chassis. The amp.14150 uses an advanced switch-mode power supply to drive fourteen channels, delivering 150 watts at 8Ω. The amp.14150 is stable to 4Ω. - Page 10 14 gauge stranded speaker wire. Power The amp.14150 receives its power from a standard 110VAC/60Hz or 240VAC/50Hz outlet. The amp can be triggered to turn on via the 12 VDC trigger input on the rear of the amp. This allows the amp to remain in Standby mode until it is required for use, thereby greatly reducing overall power consumption.
-
Page 11: Rear Panel Features
Allows control of the maximum output of all channels that have been set to Global mode (i.e., Global DIP switches for those channels are ON). (9) Speaker outputs Individual terminal connectors (included) for each speaker. (10) 10 amp breaker Manual reset circuit breaker. (11) Power connector amp.14150 User Guide... -
Page 12: Rack Mounting The Amp.14150 Amplifier
1. Remove the eight screws (four on each side) from the amp.14150 and set aside. 2. Place an ear on each side of the amp.14150, and then attach them using the screws you set aside. 3. Slide the unit into the rack, and then attach it with four rack mounting screws. -
Page 13: Installation - Getting Connected
Loop outputs Any source connected to the Global Line In Input can be sent to other components or amplifiers by connecting them to the Global Loop output connectors. amp.14150 User Guide... -
Page 14: Installation - Setup And Options
Plug the supplied power cord into the amplifier and to a polarized wall outlet or appropriate surge protector. Note: There is no power button on the amp.14150. The unit automatically powers up when you plug it into an outlet. Caution: Do not plug the amplifier’s power cord into a switched outlet, as is... -
Page 15: Operations
Global Audio source Operations LED indicators When the amp.14150 is powered on, the LEDs on the front panel indicate the amplifiers operating state. BLUE – Amplifier is ON and functioning properly ORANGE – Amplifier is ON and in Standby mode. -
Page 16: Troubleshooting
Check to see if a connection or a cable is to blame. Amplifier will not turn on. • Check that the amplifier is plugged into a live outlet. • Check that 12V is present, if using the 12V trigger. amp.14150 User Guide... -
Page 17: Specifications
Dimensions (W × H × D) 17.00 × 3.5 × 16 in. (43.2 × 8.9 × 40.6 cm) Operating environment Temperature 32 to 95°F (0 to 35°C) Relative humidity 0 to 95% noncondensing Note: All specifications are subject to change without notice. amp.14150 User Guide... - Page 18 User Guide...
