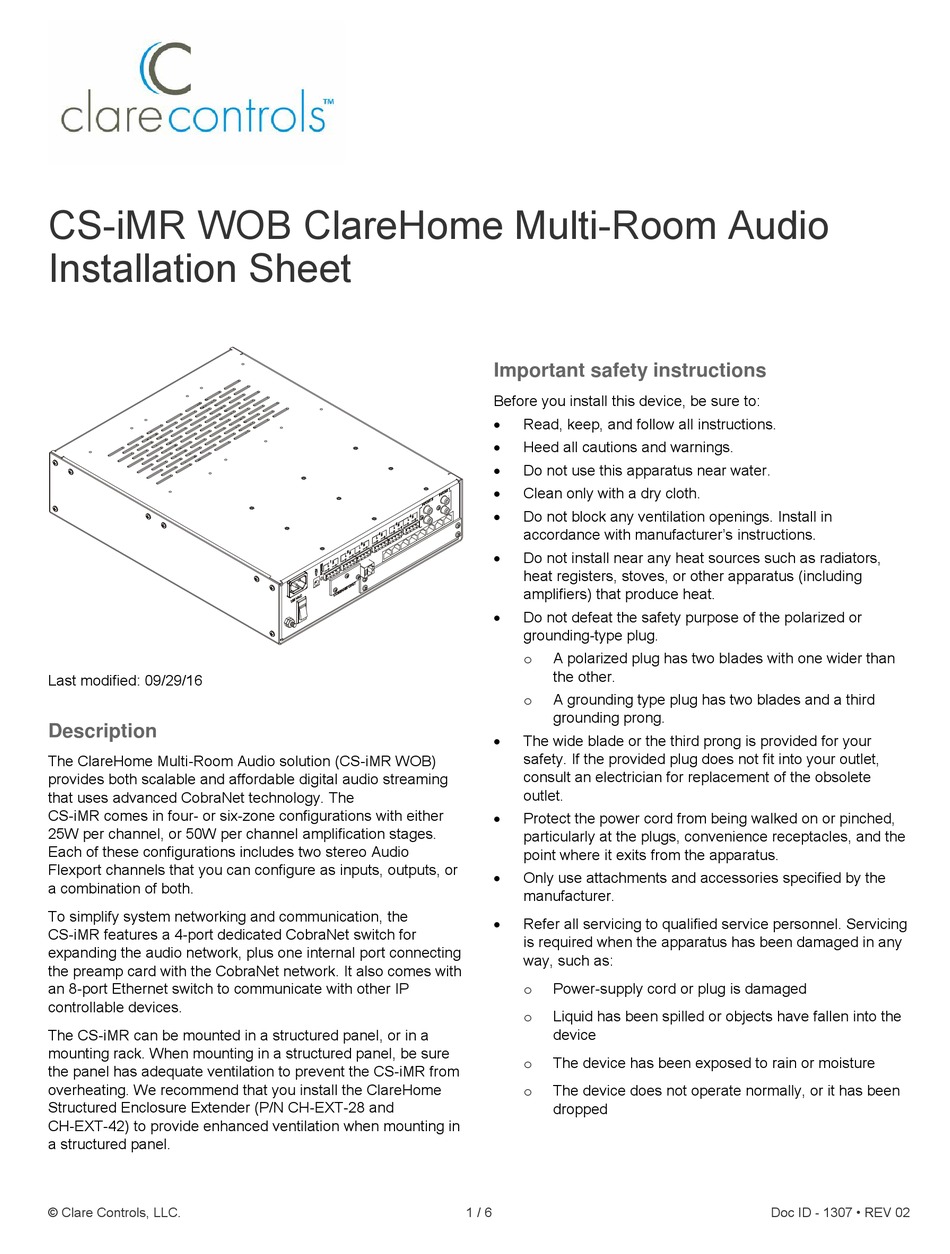

Clare Controls ClareHome CS-iMR WOB Installation Sheet

CS-iMR WOB ClareHome Multi-Room Audio
Installation Sheet
Last modified: 09/29/16
Description
The ClareHome Multi-Room Audio solution (CS-iMR WOB)
provides both scalable and affordable digital audio streaming
that uses advanced CobraNet technology. The
CS-iMR comes in four- or six-zone configurations with either
25W per channel, or 50W per channel amplification stages.
Each of these configurations includes two stereo Audio
Flexport channels that you can configure as inputs, outputs, or
a combination of both.
To simplify system networking and communication, the
CS-iMR features a 4-port dedicated CobraNet switch for
expanding the audio network, plus one internal port connecting
the preamp card with the CobraNet network. It also comes with
an 8-port Ethernet switch to communicate with other IP
controllable devices.
The CS-iMR can be mounted in a structured panel, or in a
mounting rack. When mounting in a structured panel, be sure
the panel has adequate ventilation to prevent the CS-iMR from
overheating. We recommend that you install the ClareHome
Structured Enclosure Extender (P/N CH-EXT-28 and
CH-EXT-42) to provide enhanced ventilation when mounting in
a structured panel.
© Clare Controls, LLC.
Important safety instructions
Before you install this device, be sure to:
 Read, keep, and follow all instructions.
Heed all cautions and warnings.

 Do not use this apparatus near water.
 Clean only with a dry cloth.
Do not block any ventilation openings. Install in

accordance with manufacturer's instructions.
Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or

grounding-type plug.
A polarized plug has two blades with one wider than
o
the other.
A grounding type plug has two blades and a third
o
grounding prong.
 The wide blade or the third prong is provided for your
safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete
outlet.
 Protect the power cord from being walked on or pinched,
particularly at the plugs, convenience receptacles, and the
point where it exits from the apparatus.
 Only use attachments and accessories specified by the
manufacturer.
 Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as:
Power-supply cord or plug is damaged
o
Liquid has been spilled or objects have fallen into the
o
device
The device has been exposed to rain or moisture
o
The device does not operate normally, or it has been
o
dropped
