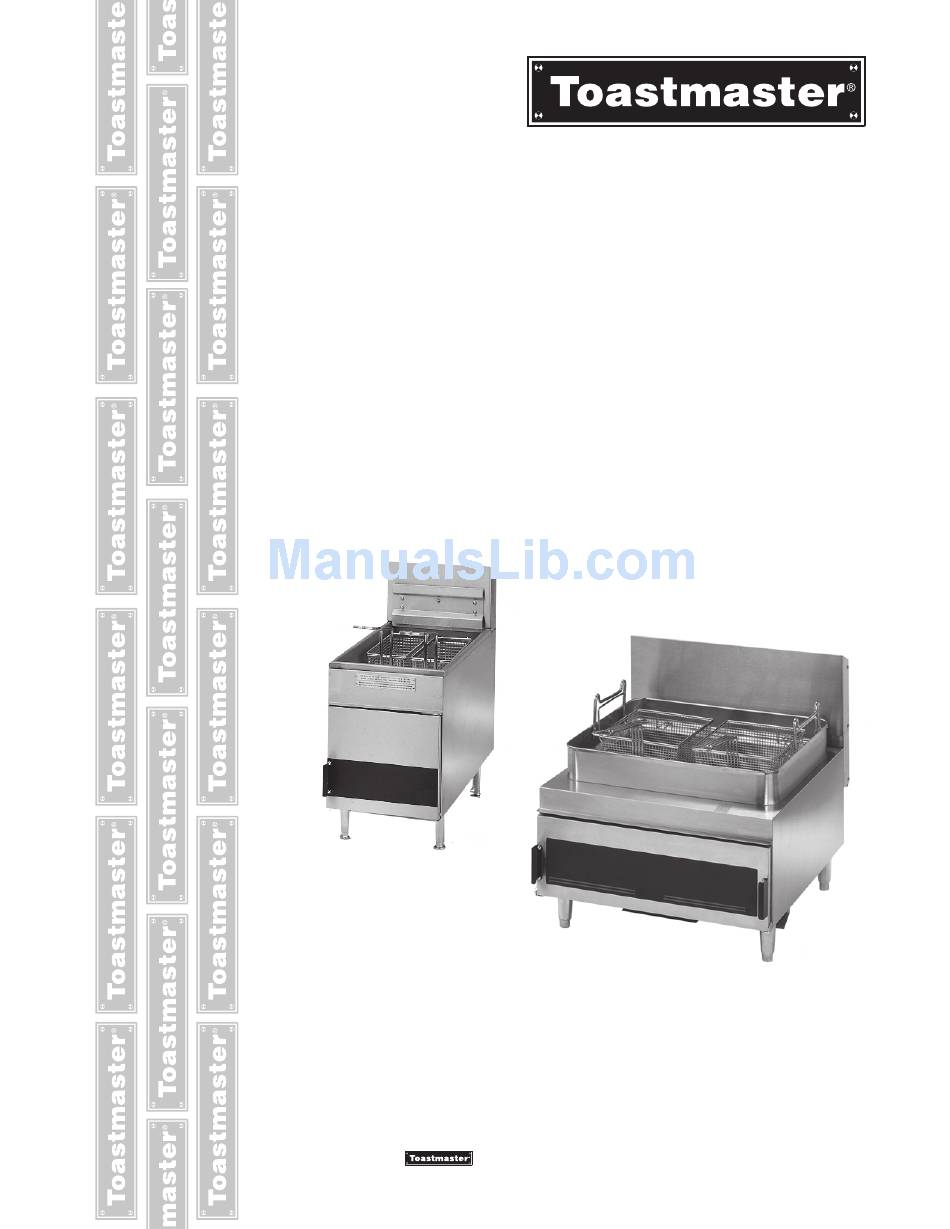

- Page 1 GAS FRYERS MODEL TMFG18-NAT, TMFG18-LP TMFG30-NAT, TMFG30-LP Installation and Operation Instructions 2M-Z3008 Rev. - Oct. , 2009 TMFG18 TMFG30 is a registerd trademark of Toastmaster, A Middleby Company. All rights reserved.
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Toastmaster factory supplied parts relieves the manufacturer of all liability. Toastmaster reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Specifications
SPECIFICATIONS Weight Model Height x Width x Depth Gas Connection NAT / LP Installed Shipped 25.625” x 12” x 25” 3/8” NPT 64 lbs 73 lbs TMFG18 24,000 BTU/HR 62.6cm x 30.5cm x 61cm 1cm NPT 29 kg 33.1 kg 23.375”... -
Page 4: Exhaust Canopy
FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. KEEP THE APPLIANCE AREA CLEAR AND FREE FROM COMBUSTIBLES. AIR SUPPLY Provisions for adequate air supply must be provided. AIR INTAKES IN BOTTOM Make certain that the air intake opening in the bottom of the appliance is not obstructed. -
Page 5: Lighting Instructions
GAS PRESSURE REGULATOR The regulator is factory set as specified on the rating plate. If it should be necessary to check the manifold pressure, remove the /8" pipe plug from the top part of the burner manifold and attach a pressure gauge. To adjust gas pressure, unscrew cap from pressure regulator on control valve and turn screw to the right to increase and left to decrease the gas pressure to its proper setting. -
Page 6: Operating Instructions
DO NOT REMOVE FEET! DO NOT HEAT AN EMPTY KETTLE. CAUTION HOT FAT IS POTENTIALLY DANGEROUS. DO NOT COME IN DIRECT CONTACT WITH HOT FAT. OPERATING INSTRUCTIONS . CLEAN KETTLE thoroughly before using. Remove baskets and crumb tray. Clean protective oil from interior of kettle with warm water &... -
Page 7: General Maintenance Tips
3. TO DRAIN KETTLE - Turn thermostat dial to the "OFF" position. Remove baskets. Drain fat from kettle only when fat is warm and liquid. A cold fryer heated up will not drain properly. Use a stick, if necessary, to stir up cold fat in bottom of kettle. Remove crumb tray. 4. - Page 8 CAUTIONS FOR ALL DEEP FAT FRYERS NEVER LEAVE AN OPERATING FRYER UNATTENDED RESPECT IT! REMEMBER HOT OIL IS DANGEROUS – WARNING – MAINTENANCE WARNING – INSTALLATION • Have your equipment checked regularly to • Locate your fryer in a protected place so insure its safe and properly functioning.
- Page 9 CARE OF FAT In three to six months you may spend as much for fat A number of commercial devices and materials are as you paid for your kettle. So fat is an item you want available to aid in eliminating fat impurities. There are to know all about;...
- Page 10 HANDY FRYING CHART TIME IN FOOD COATING PROCEDURE TEMP MINUTES POTATOES Standard French Fries Cut in uniform pieces /2” 350° Blanch Only square the long way 350° 3-/2 Brown Only 350° 3-/2 Long Branch Cut in uniform pieces 3/4” square the long way 350°...
- Page 12 7.4242 6.9370 MODEL: TMFG18 Gas Fryer SK2435 REV - 9/02/09...
-
Page 13: Parts List
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. is a registerd trademark of Toastmaster, A Middleby Company. All rights reserved. - Page 14 IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. is a registerd trademark of Toastmaster, A Middleby Company. All rights reserved.
-
Page 16: Gas Fryer
BODY ASSY COMBUSTION CHAMBER MODEL: TMFG30 Gas Fryer SK2436 REV - 9/02/09... - Page 17 IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. is a registerd trademark of Toastmaster, A Middleby Company. All rights reserved.
- Page 18 IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. is a registerd trademark of Toastmaster, A Middleby Company. All rights reserved.
-
Page 19: Warranty Statement
The foregoing is Toastmaster’s sole and exclusive obligation and the end user sole and exclusive remedy for any action including breach of contract or negligence. In no event shall Toastmaster be liable for a sum in excess of the purchase price of the equipment, or for any prospective or lost profits of the end user.
