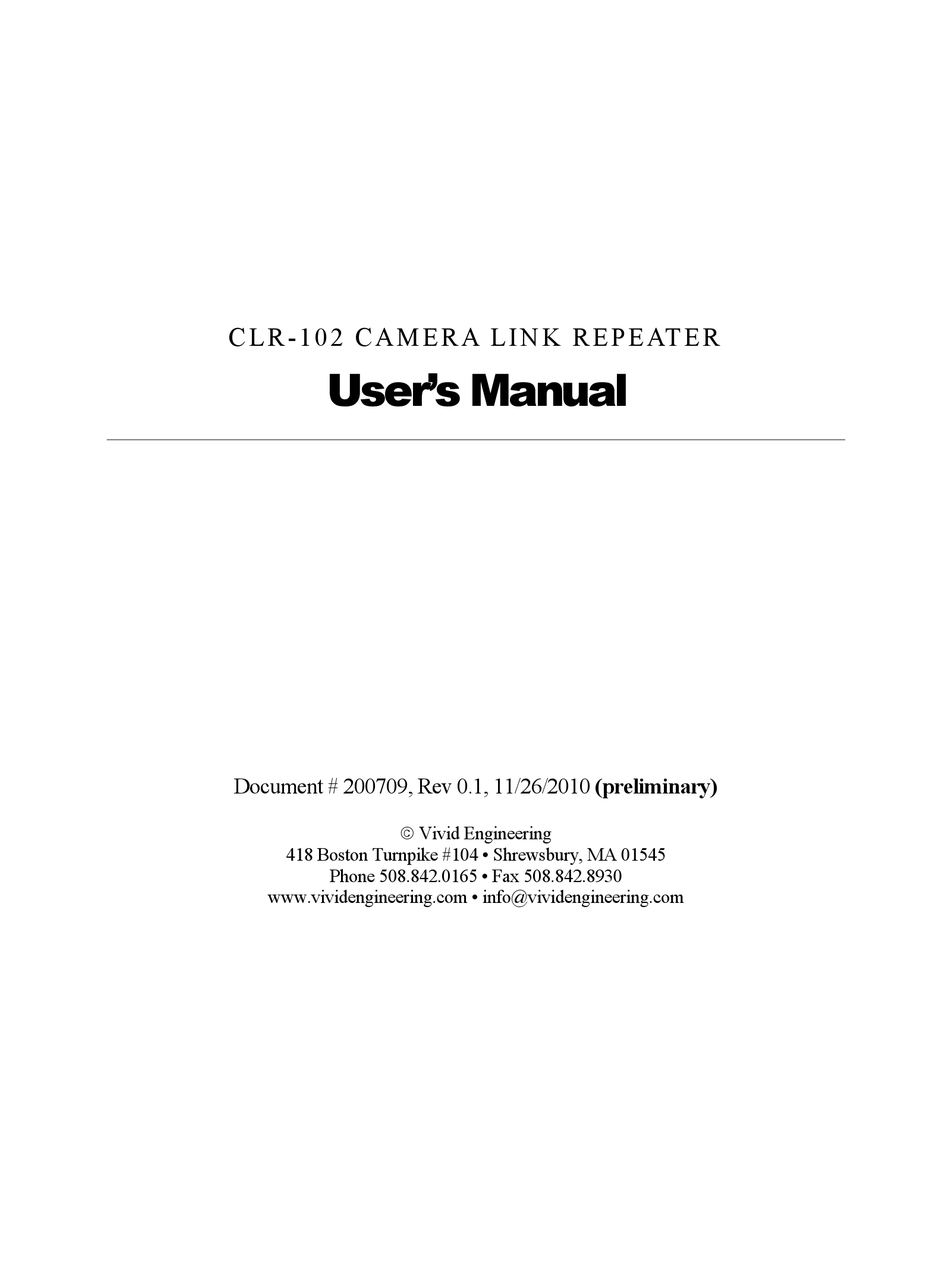

C L R - 1 0 2 C A M E R A L I N K R E P E AT E R
User's Manual
Document # 200709, Rev 0.1, 11/26/2010 (preliminary)
 Vivid Engineering
418 Boston Turnpike #104 • Shrewsbury, MA 01545
Phone 508.842.0165 • Fax 508.842.8930
www.vividengineering.com • info@vividengineering.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLR-102 and is the answer not in the manual?

Questions and answers

Related Manuals for Vivid CLR-102

Summary of Contents for Vivid CLR-102

  • Page 1 C L R - 1 0 2 C A M E R A L I N K R E P E AT E R User’s Manual Document # 200709, Rev 0.1, 11/26/2010 (preliminary)  Vivid Engineering 418 Boston Turnpike #104 • Shrewsbury, MA 01545 Phone 508.842.0165 • Fax 508.842.8930...

  • Page 2: Table Of Contents

    T able of Contents Introduction 1.1. Overview 1.2. Features 1.3. Functional Description 1.4. Typical Applications 1.4.1. PoCL Repeater Application 1.4.2. PoCL Adapter Application 1.5. Specifications Interface 2.1. Front Panel Connections 2.2. Rear Panel Connections 2.2.1. Video Connector Signals 2.2.2. Cable Shield Grounding Mechanical 3.1.

  • Page 3: Introduction

    The CLR-102 powers PoCL cameras and incorporates the PoCL SafePower feature. The CLR-102 is also an adapter; enabling the use of PoCL cameras with either PoCL or standard (non-PoCL) Camera Link frame grabbers. PoCL frame grabbers used with the CLR-102 must have the SafePower feature.
  • Page 4 CLR-102 ivid ngineering PWR LINK CAMERA...

  • Page 5: Features

    1.2. Features • Doubles max distance between PoCL camera and frame grabber • Enables use of PoCL cameras with standard (non-PoCL) frame grabbers • Powers PoCL cameras • Incorporates PoCL SafePower feature • Miniature Camera Link (miniCL) connectors • Supports Camera Link “base” configuration •...

  • Page 6: Functional Description

    1.3. Functional Description A block diagram of the CLR-102 is provided in Figure 1-1. The CLR-102 regenerates the “base” configuration signal set defined in the Camera Link Specification for Power over Camera Link (PoCL) applications. The regenerated signals may then be transmitted an additional distance up-to 10 meters over Camera Link cables.
  • Page 7 MDR style, one end miniCL) are readily available from Camera Link cable suppliers. The CLR-102 adds minimal delay (i.e. latency) to the video data path. This is an important criterion for time-critical applications. The latency through the CLR-102 is a fixed 3 pixel-clock delay.
  • Page 8 Serial LVDS Rcvr LVDS Xmtr Comm Comm LVDS Xmtr LVDS Rcvr Link Link PoCL Over Current Low-Pass 12 VDC Power Protect. Filter (12 VDC) 52uA current source SafePower Controller voltage sense CLR-102 Camera Link Repeater Figure 1-1: CLR-102 Block Diagram...

  • Page 9: Typical Applications

    PoCL type, although the standard type is recommended. The PoCL frame grabber must have the SafePower feature. Camera power is provided by the CLR-102. If 10m cable lengths are used, then this solution provides a 20 meter reach between camera and frame grabber.

  • Page 10: Pocl Adapter Application

    PoCL type, although the standard type is recommended. Camera power is provided by the CLR-102. If 10m cable lengths are used, then this solution provides a 20 meter reach between camera and frame grabber.

  • Page 11: Specifications

    1.5. Specifications Table 1-1: CLR-102 Specifications Feature Specification Camera: Camera Link Spec “base” configuration w/ PoCL Video Interfaces Frame Grabber: Camera Link Spec “base” configuration Video Connectors 26-pin Miniature Camera Link (miniCL) type Frequency Range 20 - 85 MHz Video path: 3 camera pixel clock cycles Latency Control &...

  • Page 12: Interface

    2.1. Front Panel Connections The CLR-102 Camera Link Repeater front panel is shown in Figure 2-1. The front panel contains a 26-pin Miniature Camera Link (miniCL) video connector for connecting to the camera, an LED power indicator, and an LED link indicator. The miniCL connector is a 3M device as specified in the Camera Link Spec.

  • Page 13: Rear Panel Connections

    2.2. Rear Panel Connections The CLR-102 Camera Link Repeater rear panel is shown in Figure 2-3. The rear panel contains a 26-pin miniCL video connector for connecting to the frame grabber and a DC power jack. The miniCL connector is a 3M device as specified in the Camera Link Spec.

  • Page 14: Video Connector Signals

    Camera and frame grabber cable “outer” shields are connected to the CLR-102 aluminum case. Case and endplate contacting surfaces are unpainted, providing a Faraday cage to shield internal circuitry. The case is isolated from the CLR-102 circuitry and the cable “inner” shields, avoiding possible safety concerns.
  • Page 15 Table 2-1: MiniCL Connector Assignments Camera Frame Grabber Camera Link Signal Connector Pin # Connector Pin # Signal Direction Name (frame grab. pinout) (camera pinout) Power Line (12V+) Inner shield Power Line - Inner shield CAM → FG CAM → FG CAM →...

  • Page 16: Mechanical

    Dimensions The CLR-102 Camera Link Repeater cabinet dimensions are shown in Figure 3-1. The CLR-102 is housed in a sturdy aluminum enclosure. The body is extruded aluminum, with detachable front and rear endplates. The enclosure incorporates a mounting flange. The flange contains four predrilled holes (0.15” diameter) for convenient equipment mounting.

  • Page 17: External Power Supply

    3.2. External Power Supply The CLR-102 is powered by regulated 12 VDC. The circular power jack is a locking type to prevent accidental disconnection. The mating power plug is Switchcraft p/n TA3FX. Power jack/plug pin assignments are specified in Section 2.2.

  • Page 18: Revision History

    4. Revision History Table 5-1: CLR-102 User’s Manual Revision History Document ID # Date Changes 200709-0.1 11/26/2010 Preliminary release of manual...
