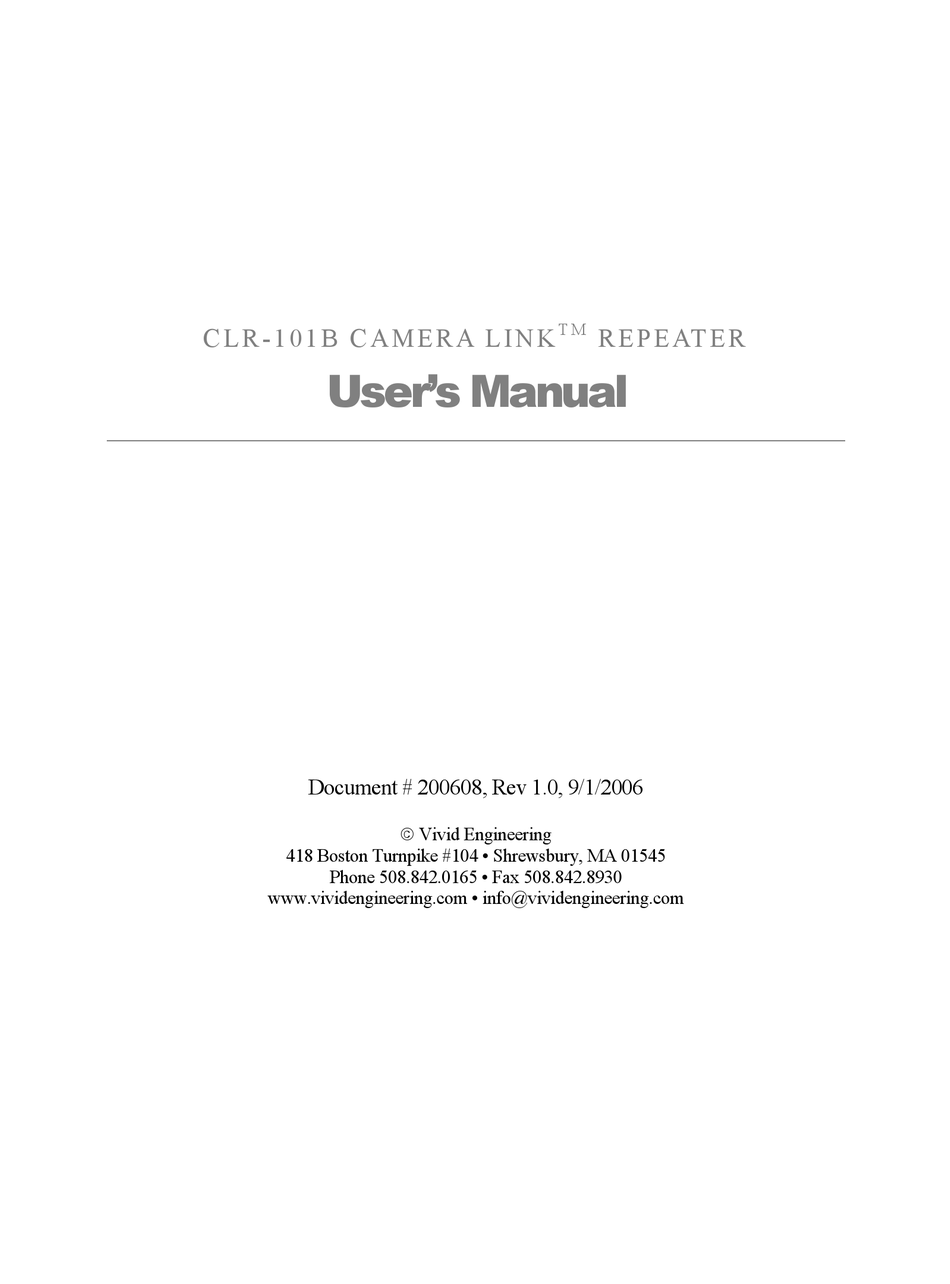

- Page 1 C L R - 1 0 1 B C A M E R A L I N K R E P E AT E R User’s Manual Document # 200608, Rev 1.0, 9/1/2006 Vivid Engineering 418 Boston Turnpike #104 • Shrewsbury, MA 01545 Phone 508.842.0165 • Fax 508.842.8930 www.vividengineering.com • info@vividengineering.com...
-
Page 2: Table Of Contents
T able of Contents Introduction 1.1. Overview 1.2. Features 1.3. Functional Description 1.4. Typical Applications 1.4.1. Standard Base Application 1.4.2. 40 Meter Application 1.4.3. Medium Application 1.5. Specifications Interface 2.1. Front Panel Connections 2.2. Rear Panel Connections 2.2.1. Video Connector Signals 2.2.2. -
Page 3: Introduction
One Camera Link cable connects the camera to the CLR-101B, and a second cable connects the CLR-101B to the frame grabber. This solution provides a 20 meter reach between camera and frame grabber using a pair of standard 10m Camera Link cables. -
Page 4: Features
• “Medium” configuration support using two CLR-101B’s in parallel • High-speed interfaces support camera clock rates up-to 85 MHz • Up-to three CLR-101B’s may be cascaded, supporting a 40m reach • Locking power supply connector • Flow-through connector positioning •... -
Page 5: Functional Description
1.3. Functional Description A block diagram of the CLR-101B is provided in Figure 1-1. The CLR-101B regenerates the “base” configuration signal set defined in the Camera Link Specification. The regenerated signals may then be transmitted an additional distance up-to 10 meters over standard Camera Link cables. -
Page 6: Typical Applications
1.4. Typical Applications 1.4.1. Standard Base Application A typical CLR-101B application is shown in Figure 1-2. A Camera Link “base” configuration camera is connected to the CLR-101B via a standard 10m Camera Link cable. A second 10m Camera Link cable is then connected from the CLR- 101B to a Camera Link frame grabber. -
Page 7: Meter Application
CLR-101B Camera Link Repeaters (3) CLR-101B CLR-101B CLR-101B ivid ngineering ivid ngineering ivid ngineering POWER CAMERA POWER CAMERA POWER CAMERA Camera Link Standard 10m Camera Link Camera Camera Link Cables Frame Grabber 40 Meter Reach Figure 1-3: CLR-101B 40m Application... -
Page 8: Medium Application
1.4.3. Medium Application CLR-101B medium application is shown in Figure 1-4. Medium configuration, in which two cables connect the camera to the frame grabber, is supported using two CLR-101B’s in parallel. A Camera Link medium configuration camera is connected to two CLR-101Bs via a pair of standard Camera Link cables. -
Page 9: Specifications
1.5. Specifications Table 1-1: CLR-101B Specifications Feature Specification Video Interfaces Camera Link Spec “base” configuration Video Connectors 26-pin MDR type Frequency Range 20 - 85 MHz Chipset National Semi. DS90CR287 / DS90CR288A Power Supply Optional US/Europe Transformer w/ Outlet Plug Set... -
Page 10: Interface
The MDR-26 connector is a 3M device as specified in the Camera Link Spec. Figure 2-2 identifies the MDR-26 pin positions. CLR-101B ivid ngineering POWER CAMERA Figure 2-1: CLR-101B Front Panel pin 13 pin 1 pin 26 pin 14 Figure 2-2: MDR-26 Connector Pin Positions... -
Page 11: Rear Panel Connections
5 to7 volts DC. Power jack pin assignments are shown in Figure 2-4. The mating DC power plug is Switchcraft p/n TA3FLX. Camera Link Repeater FRAME GRABBER 5-7 VDC Figure 2-3: CLR-101B Rear Panel pin 1, + 5-7 vdc pin 3, unused pin 2, ground Figure 2-4: Power Jack Pins... -
Page 12: Video Connector Signals
Camera and frame grabber cable “outer” shields are connected to the CLR-101B aluminum case. Case and endplate contacting surfaces are unpainted, providing a Faraday cage to shield internal circuitry. The case is isolated from the CLR-101B circuitry and the cable “inner” shields, avoiding possible safety concerns. - Page 13 Table 2-1: MDR-26 Connector Assignments Camera Frame Grabber Connector Camera Link Signal Connector Pin # Signal Direction Name Pin # (frame grabber (camera pinout) pinout) Inner shield Inner shield CAM → FG CAM → FG CAM → FG CAM → FG CAM →...
-
Page 14: Mechanical
The CLR-101B Camera Link Repeater cabinet dimensions are shown in Figure 3-1. The CLR-101B is housed in a sturdy aluminum enclosure. The body is extruded aluminum, with detachable front and rear endplates. The enclosure incorporates a mounting flange. The flange contains four predrilled holes (0.15” diameter) for convenient equipment mounting. -
Page 15: External Power Supply
3.2. External Power Supply The CLR-101B is powered by 5-7 VDC. The circular power jack is a locking type to prevent accidental disconnection. The mating power plug is Switchcraft p/n TA3FLX. Power jack/plug pin assignments are specified in Section 2.2. -
Page 16: Regulatory Compliance
4. Regulatory Compliance 4.1. FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide a reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 17: Revision History
5. Revision History Table 5-1: CLR-101B User’s Manual Revision History Document ID # Date Changes 200608-1.0 9/1/2006 Initial release of manual...
