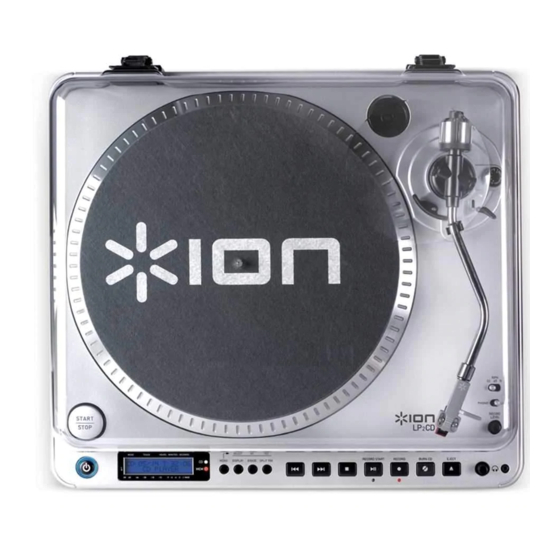

ION LP2CD Quick Start Manual

Hide thumbs Also See for LP2CD:

Advertisement

Table of Contents

See also: Quick Start Manual
QUICKSTART GUIDE
ENGLISH ( 1 – 14 )
MANUAL DE INICIO RÁPIDO PARA EL USUARIO
ESPAÑOL ( 15 – 28 )
GUIDE D'UTILISATION RAPIDE
FRANÇAIS ( 29 – 42 )
KURZANLEITUNG
DEUTSCH ( 43 – 57 )
MANUALE RAPIDO DI UTILIZZAZIONE
ITALIANO ( 58 – 71 )
SNELSTARTGIDS
NEDERLANDS ( 72 – 85 )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP2CD and is the answer not in the manual?

Questions and answers

leo bialosowski
March 31, 2025

what needle stylus do i need for it

0
1 comments:
Mr. Anderson
March 31, 2025

The ION LP2CD turntable uses the ICT04RS replacement needle stylus.

This answer is automatically generated

0

Related Manuals for ION LP2CD

Summary of Contents for ION LP2CD

  • Page 1 QUICKSTART GUIDE ENGLISH ( 1 – 14 ) MANUAL DE INICIO RÁPIDO PARA EL USUARIO ESPAÑOL ( 15 – 28 ) GUIDE D’UTILISATION RAPIDE FRANÇAIS ( 29 – 42 ) KURZANLEITUNG DEUTSCH ( 43 – 57 ) MANUALE RAPIDO DI UTILIZZAZIONE ITALIANO ( 58 –...

  • Page 3: Included Software

    Guide can be found on the included CD – please refer to this guide as you are working with Audacity. * iTunes and iPod are trademarks of Apple, Inc., registered in the U.S.A. and other countries. ** A version of EZ Vinyl/Tape Converter with Gracenote MusicID is available for download at your product’s page at www.ion-audio.com...

  • Page 4: Rear Panel Overview

    REAR PANEL OVERVIEW Power Input: Connect the included power cable from the turntable to a live power source. USB Audio Output: Use the included USB cable to connect your turntable to your computer. The USB connection will provide audio from the turntable (or the Line In inputs, if the Line/Phono switch on the top panel is set to Line) to your computer.

  • Page 5: Top Panel Overview

    TOP PANEL OVERVIEW POWER BUTTON: Press this button to turn the unit on and off. PLATTER: This platter must be securely fastened to the turntable prior to operation. The Motor Drive Belt can be found on the drive ring underneath the platter. See “Platter Setup” section for detailed information on installing the Motor Drive Belt.

  • Page 6: Tonearm Overview

    MENU AND FUNCTION BUTTONS [MENU]: This button enters the menu options for the current Mode of operation. CD Player Mode menu options include Switch Mode, Copy Track, Copy All, Repeat, System Info. Internal Flash Player Mode menu options include Switch Mode, Move Track, Repeat, System Info. [DISPLAY]: Press this button to cycle through different time display settings on the LP 2 CD: Elapsed (default), Track Remain, Total Remain.

  • Page 7: Tonearm Setup

    TONEARM SETUP Begin by rotating the counterweight counter-clockwise until it is in the complete forward position (NOTE: this is also the maximum amount of pressure that can be applied to the cartridge.) Now there should be a feeling of weight and resistance when the head shell is raised and lowered.

  • Page 8: Mounting The Dust Cover

    MOUNTING THE DUST COVER Attach the included dust cover mounts to the turntable. Attach the dust cover to the mounts as shown in illustration on the left. THE TWO MODES The LP 2 CD features two general modes of operation: CD Player Mode and Internal Flash Player Mode.
  • Page 9 CD PLAYER MODE MENU OPTIONS To access different menu options while in CD Player Mode, press the [MENU] button. To step through menu options, continue to press the [MENU] button. After cycling through all available menu options, the unit will return to the default CD Player Mode screen.

  • Page 10: Internal Flash Player Mode

    INTERNAL FLASH PLAYER MODE The LP 2 CD features an Internal Flash Player. This player is used to rip music from the turntable or from an external source connected to the line inputs on the rear of the unit. The process is illustrated below: RECORD RECORD INTERNAL...
  • Page 11 Use the RECORD LEVEL knob to adjust the level of the audio signal. The recording level will be displayed on the screen. It is important to set your INT:01 PressPLAY recording levels correctly during this step, otherwise ============ = you may end up with a recording that is too soft or is too loud and distorted.
  • Page 12 SPLITTING TRACKS IN THE INTERNAL FLASH PLAYER The Internal Flash Player allows you to split a selected track into two tracks, in case you may have missed the transition when you first recorded your music to the Internal Flash Player. This is applicable if you have disabled Auto Split and have chosen to split your tracks manually.
  • Page 13 INTERNAL FLASH PLAYER MENU OPTIONS To access different menu options while in Internal Flash Player Mode, press the [MENU] button. To step through menu options, continue to press the [MENU] button. To change the selected setting, press the [SELECT] button. The available menu options are described below: Switch to CD Player Mode This option allows you to manually switch to CD Player Mode.

  • Page 14: Burning Internal Flash Player Contents To Cd

    BURNING INTERNAL FLASH PLAYER CONTENTS TO CD Once you have recorded your music to the Internal Flash Player, you can burn it to a CD-R. Please note that the LP 2 CD allows recording only to a blank CD-R. Please ensure that the proper logo (shown on the right) appears on the CD you intend to use.

  • Page 15: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS Question: Can I record from the turntable and from external audio sources simultaneously? Answer: No. The LP 2 CD can only record from the turntable or from audio sources connected to the Line In inputs, but not both simultaneously. This is to prevent unwanted mixing of audio signals.

  • Page 16: Troubleshooting

    Internal Flash Player” section for details. LP 2 CD HOT KEYS BUTTON COMBINATION DESCRIPTION RECORD + STOP Forces system to load an OS (Operating System) upon startup. Please visit www.ion-audio.com regularly for updates. RECORD + PLAY Restores the default system parameters.
  • Page 17 LP 2 CD SPECIFICATIONS CD playback Type: Redbook CD and CDR SNR: 96dB THD+N: 0.007% CD burning Type: Speed: Computer audio playback via USB SNR: 94dB A-weighted THD+N: 0.008% Flash recording Size: 1GB internal flash memory Quality: 16 bit, 44.1kHz sample rate Line-in recording to internal flash memory at unity gain SNR: 96dB...
  • Page 21 www.ion-audio.com...
