- Page 1 User’s manual NOTICE 140X140 12 PAGES UK.indd 1 26/06/14 16:52...
-
Page 2: Mains Voltage
Mains voltage MyAMP mains power supply is designed to match the following mains voltage and frequency range : 85-150 Vac / 47-63 Hz, or 180 - 265 Vac / 47-63 Hz. Please check that the voltage indicated on the label located above the ac inlet of your unit, matches your home mains voltage. - Page 3 MyAMP has also a trigger input to control the Standby / On status of the unit by a 5 to 12V DC trigger voltage. On the same connector you can also send, from an external system, RC5 remote control codes to access directly all MyAMP functions.
- Page 4 This way, the air flow from left to right will not suffer any constraints. You can install MyAMP in a closet as long as it is equipped with air input and output with sufficient surface and a good ventilation to avoid any air temperature rise that would trigger MyAMP over temperature protection system.
-
Page 5: Front Panel Description

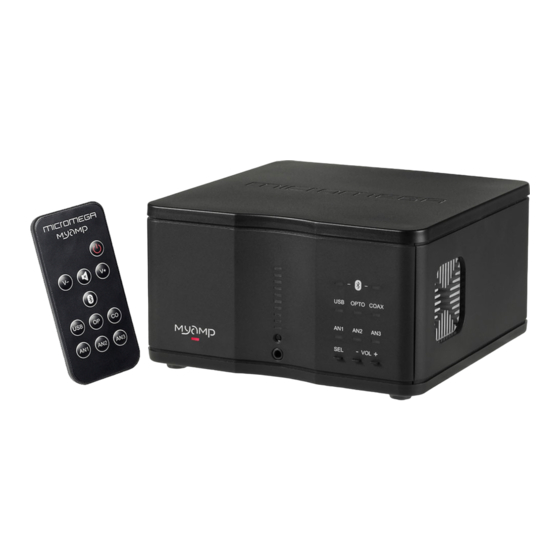

Front panel description On the left hand bottom side of the front panel, you will find the MyAMP logo with the red “Standby” led located just below. In the middle of the unit, from bottom to top you will find the 3.5mm headphone jack, with the IR received just above and a vertical row of 10 leds. - Page 6 Exemple de schéma de raccordement Recepteur sat. /Sat rec CD - DVD - BD player Digital Outputs Tuner FM Digital Outputs REC.OUT SUB.OUT LEFT BT PAIR RIGHT — — RIGHT LEFT NOMINAL SPEAKERS IMPEDANCE > 4 Ohms Téléphone Smartphone Enceinte Speaker NOTICE 140X140 12 PAGES UK.indd 6 26/06/14 16:52...
- Page 7 r sat. /Sat receiver BD player Digital Outputs Ordinateur Computer REC.OUT SUB.OUT OPTO COAX TRIG/IR-IN BT PAIR AC MAINS — LEFT MPEDANCE > 4 Ohms MADE IN FRANCE TV/LCD NOTICE 140X140 12 PAGES UK.indd 7 26/06/14 16:52...
-
Page 8: Operation
Operation MyAMP can be controlled by the three tact switches located at the bottom right hand side of the front panel or by the remote control handset supplied with the unit. A short pressure on the unit “SEL” key or “Standby” button of the remote control handset takes MyAMP out of “Standby”... - Page 9 Once 8 devices have already been paired to MyAMP, if you try to pair an additional device the first one that was paird to MyAMP will be erased and replaced by the new one. You can always decide to erase the list of devices that were connected to MyAMP Bluetooth module.
-
Page 10: Technical Characteristics
Below you will find a shortlist of MyAMP Bluetooth status indications. Bluetooth Leds Status Blue led: ON 2 sec, OFF 1 sec There is no Bluetooth unit connected to MyAMP Blue and Red leds blink alternatively MyAMP is in Pairing mode... -
Page 11: Working Conditions
• Refer all service-related issues to qualified personnel. WARANTY Your MyAMP is covered by a one year warranty from the date of purchase. f the device re- quires servicing, return it to the dealer you purchased it from, packed in the original box along with the purchase invoice.The warranty covers manufacturing defects, with the exception of... - Page 12 AUDIS sarl, 13-15 rue du 8 Mai 1945, 94470 Boissy Saint Leger, FRANCE Fax: +33(0)1 4382 6128 – www.micromega-hifi.com – VAT: FR07500331301 NOTICE 140X140 12 PAGES UK.indd 12 26/06/14 16:52...
