Summary of Contents for Micromega M One M150 ROOM EQ

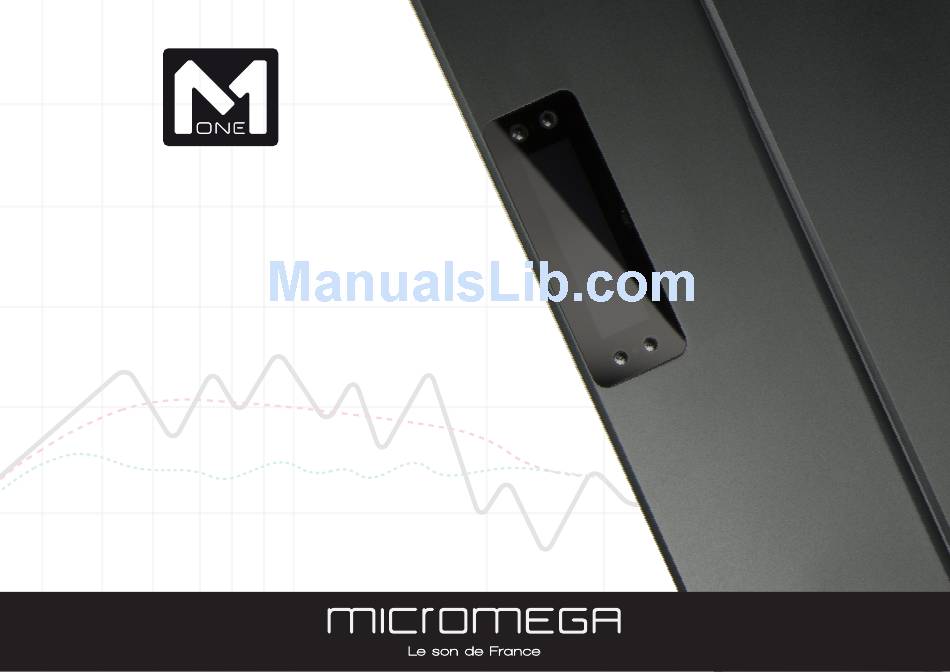

  • Page 1 ROOM EQ user’s manual...
  • Page 2 The electro-acoustic correction system M.A.R.S. corrects any faults in your audio system by taking measurements from a microphone placed at the listening point. This correction system takes into account your whole system: “speakers - room. ” It irons out any incidents in the amplitude/frequency response co- ming from re ections, absorptions or resonances in the listening room.
  • Page 3: Table Of Contents

    1 - INSTALL M.A.R.S. LICENCE FOR M-100 ......... 4 2 - MICROPHONE SETUP ..............5 3 - SETUP IN CENTRAL POSITION ..........6 4 - MEASUREMENT IN CENTRAL POSITION ......7 5 - SETUP AND MEASUREMENT IN LEFT POSITION .... 9 6 - SETUP AND MEASUREMENT IN RIGHT POSITION ..10 7 - AFTER CALIBRATION ..............11 8 - CALIBRATION SETTING ..............12...
  • Page 4: Install M.a.r.s. Licence For M-100

    For M-100 amplifier, you must have the M.A.R.S. kit that has an USB key with a licence that will enable the M.A.R.S. function (Room EQ and Binaural). You must install the latest system update for M-100 (download here : http://www.micromega.com). Licence installation : •...
  • Page 5: Microphone Setup

    2. MICROPHONE SE TUP Please make sure to insert completely the microphone into MIC input on the M-One. This is mandatory for the good measurement process of ROOM EQ.
  • Page 6: Setup In Central Position

    3. SE TUP IN CENTRAL POSITION You must place the microphone at your favorite listening position, at ears level. This position is the first step for ROOM EQ calibration. Left speaker Right speaker...
  • Page 7: Measurement In Central Position

    4. MEASUREMENT IN CENTRAL POSITION On the M-One, push to bottom-left button (Fig. 1) 192 kHz Fig. 1 With up and down arrows, scroll until REQ menu < is showing and validate with «OK». (Fig. 2) Fig. 2...
  • Page 8 < In the REQ menu, push «OK» to begin calibration (Fig. 1) Fig. 1 Here, M-One will start the MIDDle position mea- < surement, push «OK» to launch calibration. MIDD A 5 second count-down enable you to leave the measurement area. (Fig. 2) Fig.
  • Page 9: Setup And Measurement In Left Position

    5. SE TUP AND MEASUREMENT IN LEFT POSITION Left speaker Right speaker When central measurement is over, next step is the LEFT position. Put the microphone at 20 cm left from the central position at ears level. < LEFT Validate with «OK» when the microphone is ready (Fig.
  • Page 10: Setup And Measurement In Right Position

    6. SE TUP AND MEASUREMENT IN RIGHT POSITION Left speaker Right speaker When left measurement is over, next step is the RIGHT position. Put the microphone at 20 cm right from the central position at ears level. < RGHT Validate with «OK» when the microphone is ready (Fig.
  • Page 11: After Calibration

    7. AFTER THE CALIBRATION When calibration is over, M-One go back to the input screen. A symbol appeared on the right side of the screen. (Fig. 1) ROOM EQ is now actived and use «AUTO» ca- 192 kHz libration (by default, see point 6 for more infor- mations).
  • Page 12: Calibration Setting

    8. CALIBRATION SE T TING ROOM EQ let you use two options for calibration : < - AUTO : limit resonances of your room and keep the general shape of your loudspeakers frequency response. This is the default setting. Fig. 1 - FLAT : limit resonances of your room and flatten the fre- quency response in the bass regions.
  • Page 13: Desactivate Room Eq

    9. DESAC TIVATE ROOM EQ < You can desactivate ROOM EQ in «REQ» menu. Use up and down arrows to show «ON» (Fig. 2) or «OFF» (Fig. 3) and validate with «OK» Fig. 1 Your previous calibration stay into M-One memory, you can <...
  • Page 14 AUDIS MICROMEGA 13-15 rue du 8 Mai 1945 94470 Boissy-Saint-Léger FRANCE paris FRANCE 01.02.03.04.05 contact@micromega.com http://www.micromega.com http://facebook.com/micromegahifi version 1.2...

This manual is also suitable for:

M one m100 room eq
