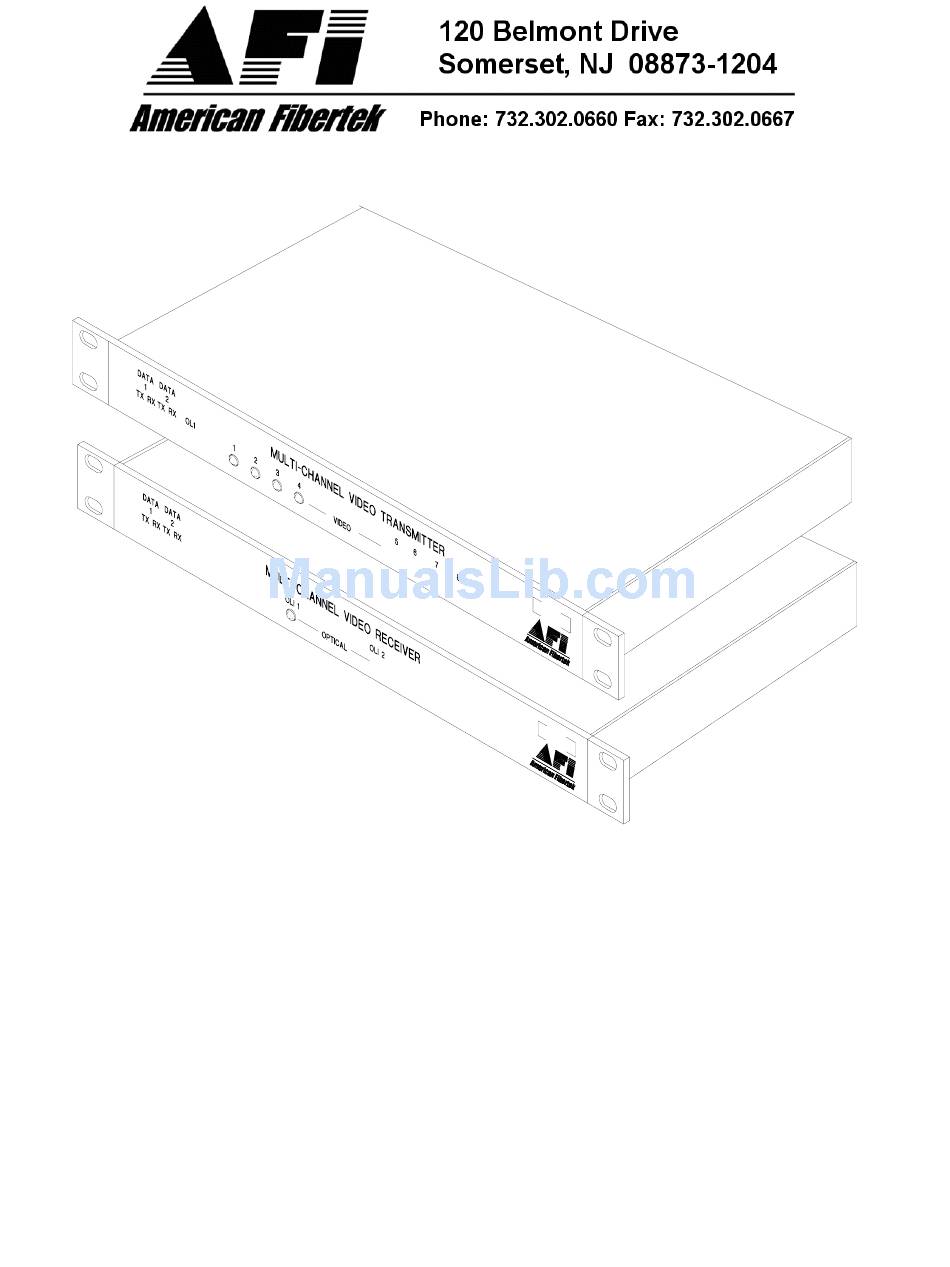

- Page 1 Instruction Manual MRT-840C MRR-840C Four Channel Video Multiplexer © Copyright 2005, American Fibertek, Inc. 1229JD...
- Page 2 NTSC/PAL video signals over one multimode fiber optic cable. The MRT-840C transmitter accepts up to four video inputs and multiplexes these signals onto a single optical output port for connection to the fiber transmission system. Correspondingly, the MRR-840C receiver converts the optical signal to four independent video output signals.
- Page 3 75Ω. For optimum performance the video cables should be the shortest length of coax practical. MRT-840C STATUS INDICATORS The MRT-840C transmitter provides the following front panel LED status indicators to aid in installation and troubleshooting: VIDEO A bi-color LED indicator is provided for each of the four video channel inputs.
- Page 4 A bi-color LED indicator monitors the power of the optical input signal that is being received at the MRR-840C from video channels one through four of the MRT-840C. AC power and optical input status associated with this LED are summarized below.
