- Page 1 Instruction Manual RT-94845SL RR-94845SL Forty-Eight Channel Video Multiplexer With Bi-directional Ethernet Data © Copyright 2007, American Fibertek, Inc. 0411JD...
-
Page 2: Table Of Contents
Table of Contents Functional Description ................3 Installation...................3 RT-94845SL Components ..............4 RR-94845SL Components ..............5 Power Connections ................6 Fiber Connections ................6 Video Input / Output Connections ............7 Ethernet Data Connections ..............7 RT-980 Series Status LED Indicators ..........8 RTX-45-1490 Status LED Indicators...........9 RR-980 Series Status LED Indicators..........10 RRX-45-1470 Status LED Indicators ..........11... -
Page 3: Functional Description
10 Mb/s or 100 Mb/s. An external switch is provided for selecting MDI (straight) or MDIX (crossover) Ethernet connections. The RT-94845SL transmitter accepts up to forty-eight video inputs in six groups containing eight videos and multiplexes each group into a high speed serial data stream. The first group’s serial data stream modulates a laser at 1510nm wavelength. -
Page 4: Rt-94845Sl Components
1) MTX-CWDM-8 1) BPS-1 The individual 980 series video rack cards that make up the RT-94845SL are combined in a rack mount configuration using the SR-20 subrack. Please refer to the instruction manuals for the SR-20 and the PSR-2 for information on the installation of the subrack with its power supply. -
Page 5: Rr-94845Sl Components

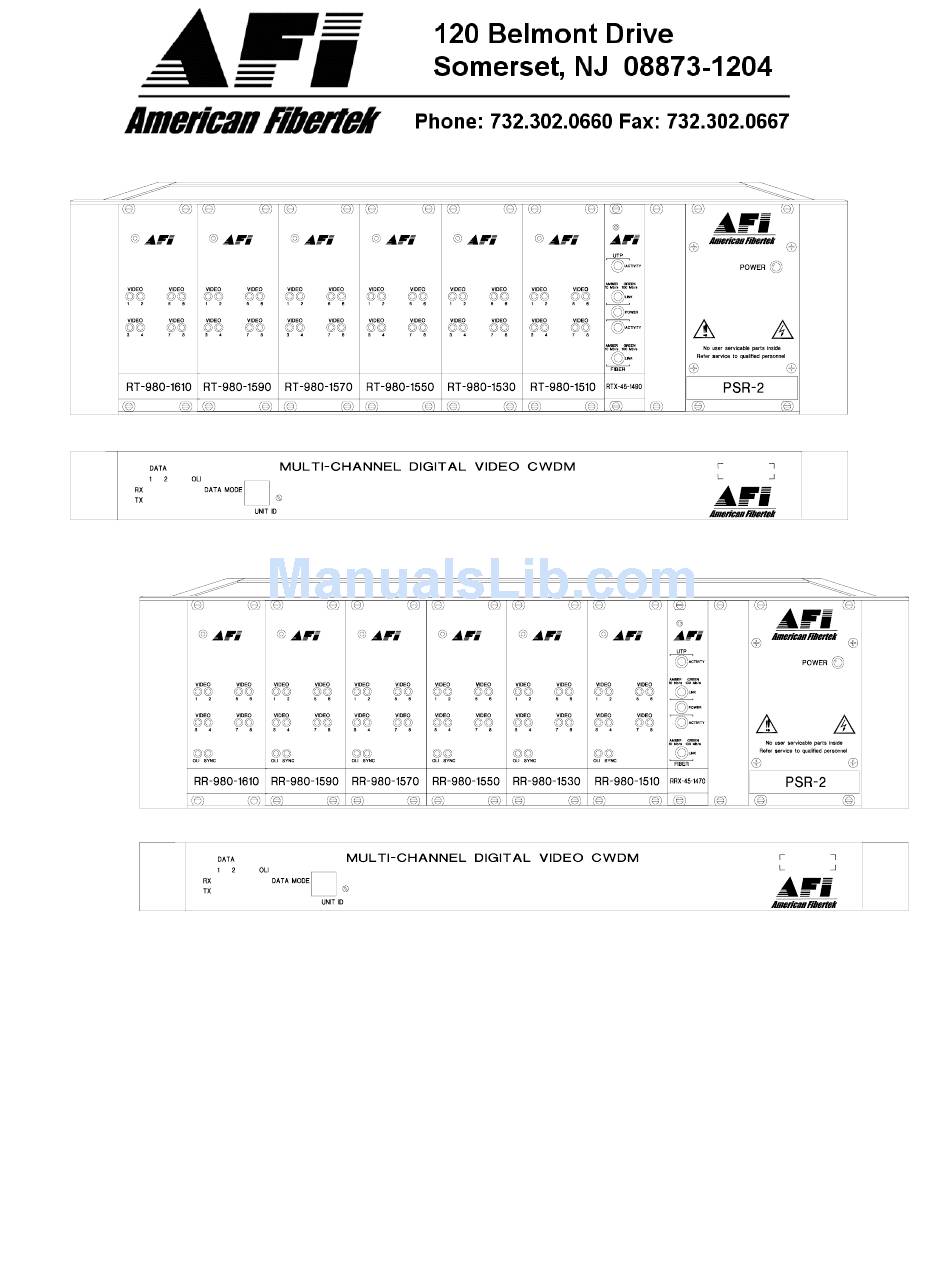

The 980 series video rack cards and the data rack card that make up the RR-94845SL are installed in a manner similar to the RT-94845SL (see drawing below). The Multi-Channel Digital Video CWDM that optically demultiplexes the six video rack cards and the one data card used in the RR-94845SL is labeled MRX-CWDM-8. -
Page 6: Fiber Connections
RT-94845SL RR-94845SL FIBER CONNECTIONS The fiber optic connections on the RR-94845SL are similar to those for the RT-94845SL with the exception of the RRX-45-1470 data card. On the RRX-45-1470, the bottom port connects to the 1470nm port on the CWDM. The top port of the RRX-45-1470 connects to the 1490nm port on the CWDM. -
Page 7: Video Input / Output Connections
The location of a video input to the RT-94845SL will be mirrored as a video output at the RR- 94845SL. For example, the Channel 2 video input on the RT-980-1550 will become the Channel 2 video output on the RR-980-1550 after traveling across the fiber infrastructure. -
Page 8: Rt-980 Series Status Led Indicators
RT-980 SERIES STATUS INDICATORS Each of the RT-980 series transmitters provides the following front panel LED status indicators to aid in installation and troubleshooting: VIDEO 1 THROUGH VIDEO 8 A bi-color LED indicator is provided for the each of the eight video inputs to the RT-980 series transmitters. -
Page 9: Rtx-45-1490 Status Led Indicators
RTX-45-1490 STATUS INDICATORS The RTX-45-1490 transceiver provides the following LED status indicators to aid in troubleshooting: UTP ACTIVITY A green LED indicator monitors the presence of any data signals into the RTX-45-1490 from the twisted pair wires. Input status associated with this LED is summarized below. UTP Activity Indicator Ethernet Data Status Green... -
Page 10: Rr-980 Series Status Led Indicators
RR-980 SERIES STATUS INDICATORS Each of the RR-980 series receivers provides the following front panel LED status indicators to aid in installation and troubleshooting: VIDEO 1 THROUGH VIDEO 8 A bi-color LED indicator is provided for the each of the eight video outputs from the RR-980 series receivers. -
Page 11: Rrx-45-1470 Status Led Indicators
RRX-45-1470 STATUS INDICATORS The RRX-45-1470 transceiver provides the following LED status indicators to aid in troubleshooting: UTP ACTIVITY A green LED indicator monitors the presence of any data signals into the RRX-45-1470 from the twisted pair wires. Input status associated with this LED is summarized below. UTP Activity Indicator Ethernet Data Status Green... -
Page 12: Warranty / Service Information
LIFETIME WARRANTY INFORMATION American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of American Fibertek. A Return Material Authorization (RMA) number is required to send the products back in case of return.
