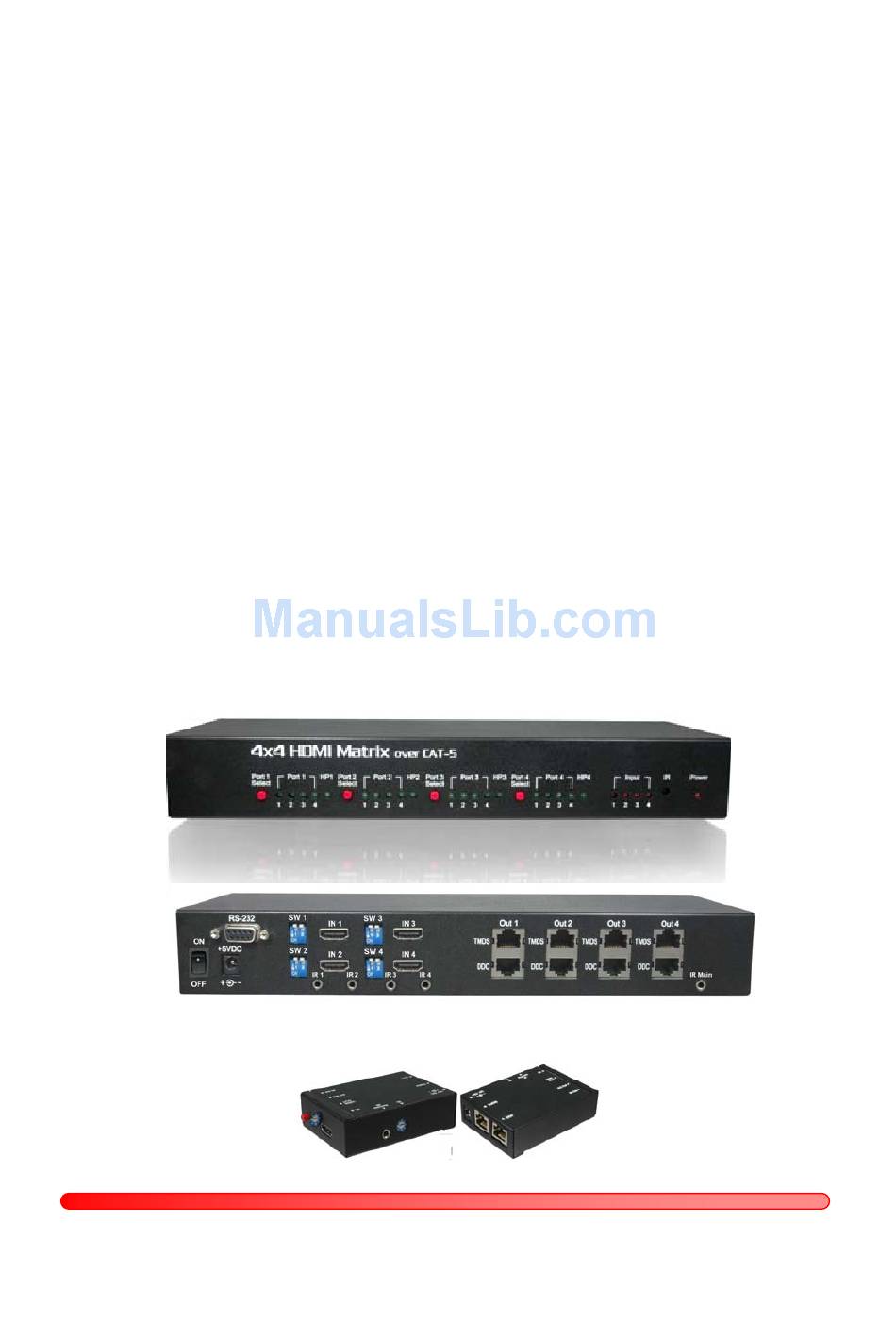

- Page 1 AS-6244C 4x4 HDMI over CAT5 Matrix with IR Control Path User Manual ...
- Page 2 Safety and Notice The AS‐6244C 4x4 HDMI Matrix over CAT5 with IR Control Path has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the AS‐6244C should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. Follow all instructions and warnings marked on this unit. Do not attempt to service this unit yourself, except where explained in this manual. Provide proper ventilation and air circulation and do not use near water. Keep objects that might damage the device and assure that the placement of this unit is on a stable surface. Use only the power adapter and power cords and connection cables designed for this unit. Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
- Page 3 Introduction The AS‐6244C 4x4 HDMI Matrix over CAT5 with IR Control Path provides the most flexible and cost effective solution in the market to route high definition video sources plus multi‐channel (up to 7.1‐channel) digital audio from any of the four HDMI sources to the remote displays at the same time. Through low cost CAT‐5 cables, not only high quality video and audio can be transmitted to the display sites, but also users can switch among 4 HDMI sources using the push button or remote control. With single power design at the source site, each remote module is easily installed without power supply. Furthermore, the built‐in IR extension function makes users at display site access the DVD player, PS3 or any HDMI equipped devices directly! ...
- Page 4 Features HDMI 1.2a compliant HDCP compliant Allows any source to be displayed on multiple displays at the same time Allows any HDMI display to view any source at any time Supports 7.1 channel digital audio Supports default HDMI EDID and record the EDID of displays Main matrix center can be switched with IR remote control or through RS‐232 Allows to control Local video sources such as DVD and TiVo by IR extender through control line at remote receiver Allows to control main matrix center through control line at remote receiver Extends video signal up to 100 feet over CAT‐5e at 1080p Each display’s input source can be switched with IR remote control or push button through control line at remote receiver Easy installation Technical Specifications and Package Content AS‐6244C Package Content 1x AS‐6244 4x AS‐6244RX 1x IR emitting cable ...
-
Page 5: Panel Descriptions
Panel Descriptions AS‐6244 5 6 3 2 1 ... - Page 6 AS‐6244RX 2 3 4 5 1. Push button: Select input source channel 2. Push button: Select input source channel 3. HDMI Output: Connect to HDTV 4. IR Extender: For IR receiver extension cable plug‐in 5.
-
Page 7: Hardware Installation
Hardware Installation AS‐6244 as master 1. Connect all sources to HDMI Inputs on the 4x4 HDMI matrix master AS‐6244 2. Connect each DDC output on the AS‐6244 to respective DDC input on the remote receiver AS‐6244RX 3. Connect each TMDS output on the AS‐6244 to respective TMDS input on the remote receiver AS‐6244RX 4. Connect IR emitter extension cable to the AS‐6244 and direct the IR emitter to the build‐in IR receiver of the sources 5. Connect the +5V6A DC power supply to the AS‐6244 6. Power on the AS‐6244 MX‐5144RX as receiver 1. Connect each HDMI output to HDMI displays. 2. Connect the TMDS input on the AS‐6244RX to the TMDS output on the AS‐6244. 3. Connect the DDC input on the AS‐6244RX to the DDC output on the AS‐6244. 4. Connect IR receiver extension cable and place the IR receiver at the appropriate position that can receive the IR signals sent from the users. ... - Page 8 Operation and IR Control Method Source Side Method A: Push Button Push the switch button on the front panel, the source will be sequentially changed. Method B: IR Controller a. Please press to enter IR control mode b. Decide which output port to be controlled by pressing F1 to F4 Note: If the setting is correct, the corresponding LED will flash. If not, please press output port select button or repeat step a and b. F1 HDMI output #1 F2 HDMI output #2 F3 HDMI output #3 F4 HDMI output #4 c. Use or keys to select input source. Note: If the setting is correct, the corresponding LED will flash. If no response, please ...
- Page 9 RS-232 Serial Port Control Method C: Software Control Scan: Push this button will trigger the automatic search over all the available COM ports (1‐255). If the matrix is detected, the message window below will show up. ...
- Page 10 Otherwise, an error message as following shows up to indicate no legal device can be found. Notice that successful connection is only established if there exists at least one available COM port. Open: Open the COM port after scan to establish the connection between PC and the matrix. Close: Release the COM port after scan. Quick Setup Buttons: Provide the fast setup between inputs and outputs of the matrix. “Default” button makes input 1, 2, 3, 4 mapped to output 1, 2, 3, 4 respectively. “Channel 1” makes all outputs see input‐1, same for the remaining buttons. Output Channel Setup: Click on this button, a quick selection table of inputs will show up. Users can therefore easily select the input video for each output. ...
- Page 11 Input Channel: Select the input channel to do bitmap and label change. Bitmap Path: Select the figure for each channel. Notice that only pictures in BMP format are supported. Description: Channel description. ...
- Page 12 Display Side Method A: Push button Channel select switch must be set to zero. Push the switch button, the input source will be sequentially changed to next channel. Method B: IR Controller Channel select switch must be set to zero. a. Press Power on button to enable IR control function. b. Press hot key for input source: F1 HDMI source #1 F2 HDMI source #2 F3 HDMI source #3 F4 HDMI source #4 d. Use Left / Right keys to select input source Left button to switch channels in increasing order (1, 2, 3, 4, 1, ...) Right button to switch channels in decreasing order (1, 4, 3, 2, 1, …) Method C: Switch This method will fix the input channel for the RX unit and therefore RX unit can NOT be controlled by the other method. SW1 select Description number ...
-
Page 13: Limited Warranty
However, Ascale assumes no responsibility for any inaccuracies that may be contained in this manual. Ascale will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AS‐6244C ...
